Description

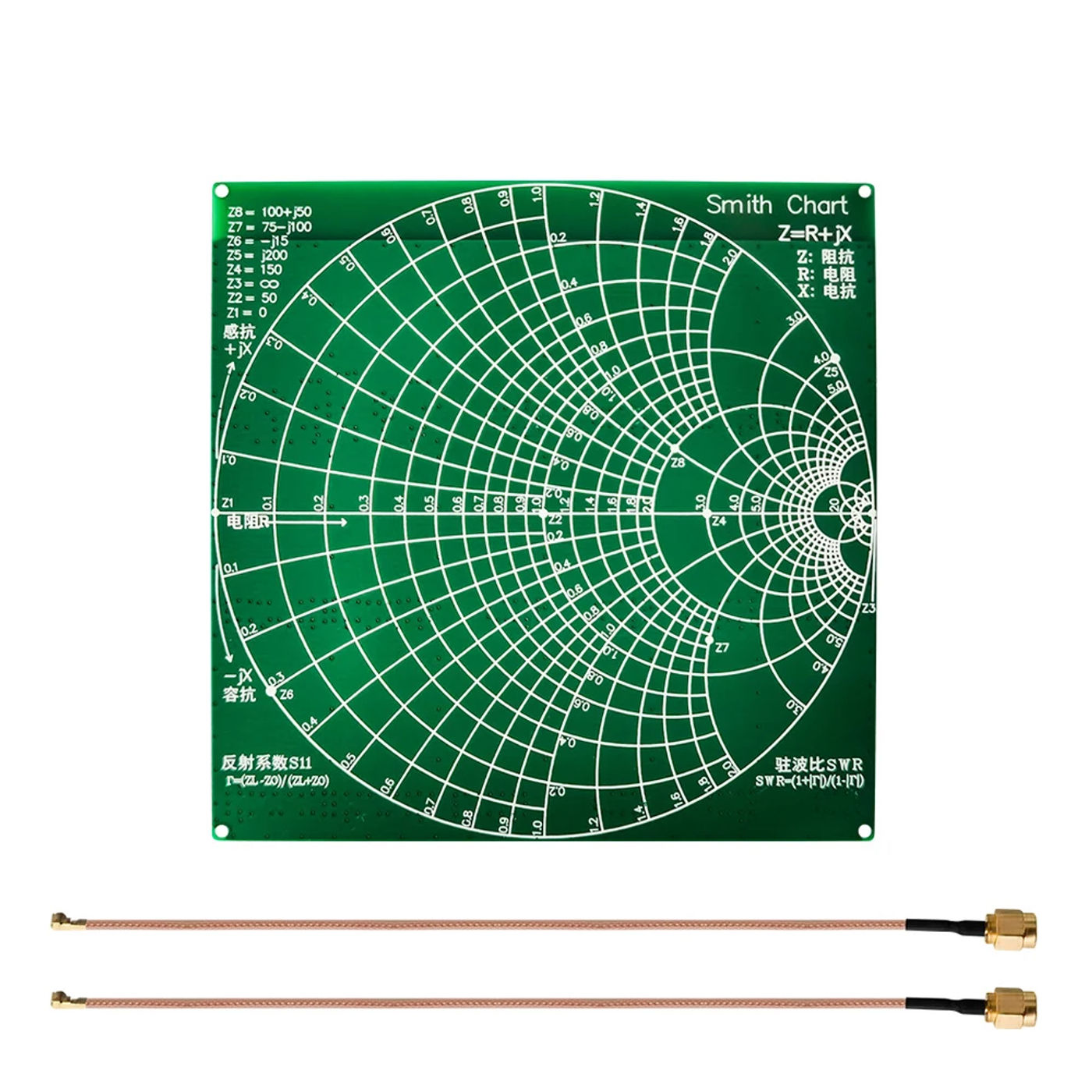

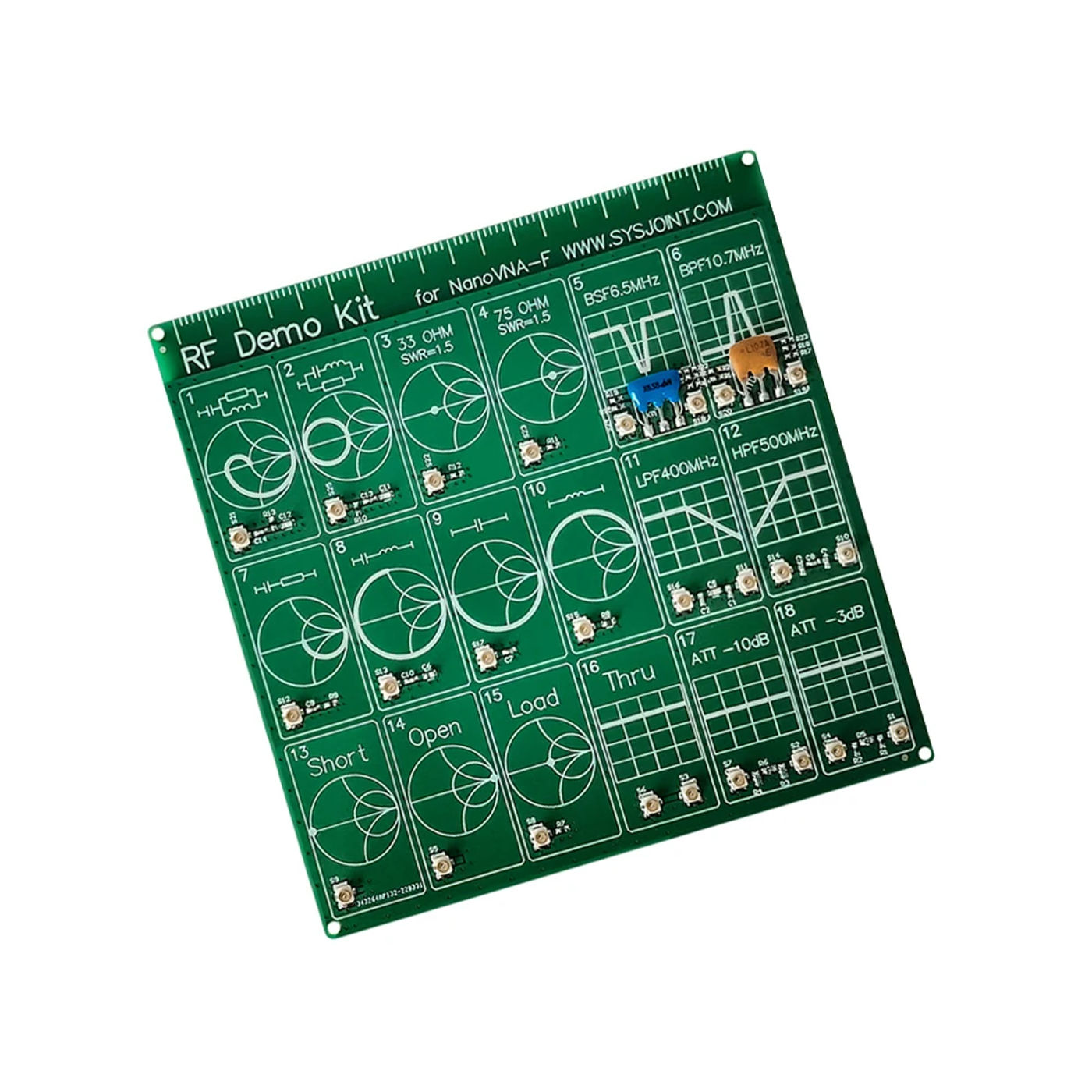

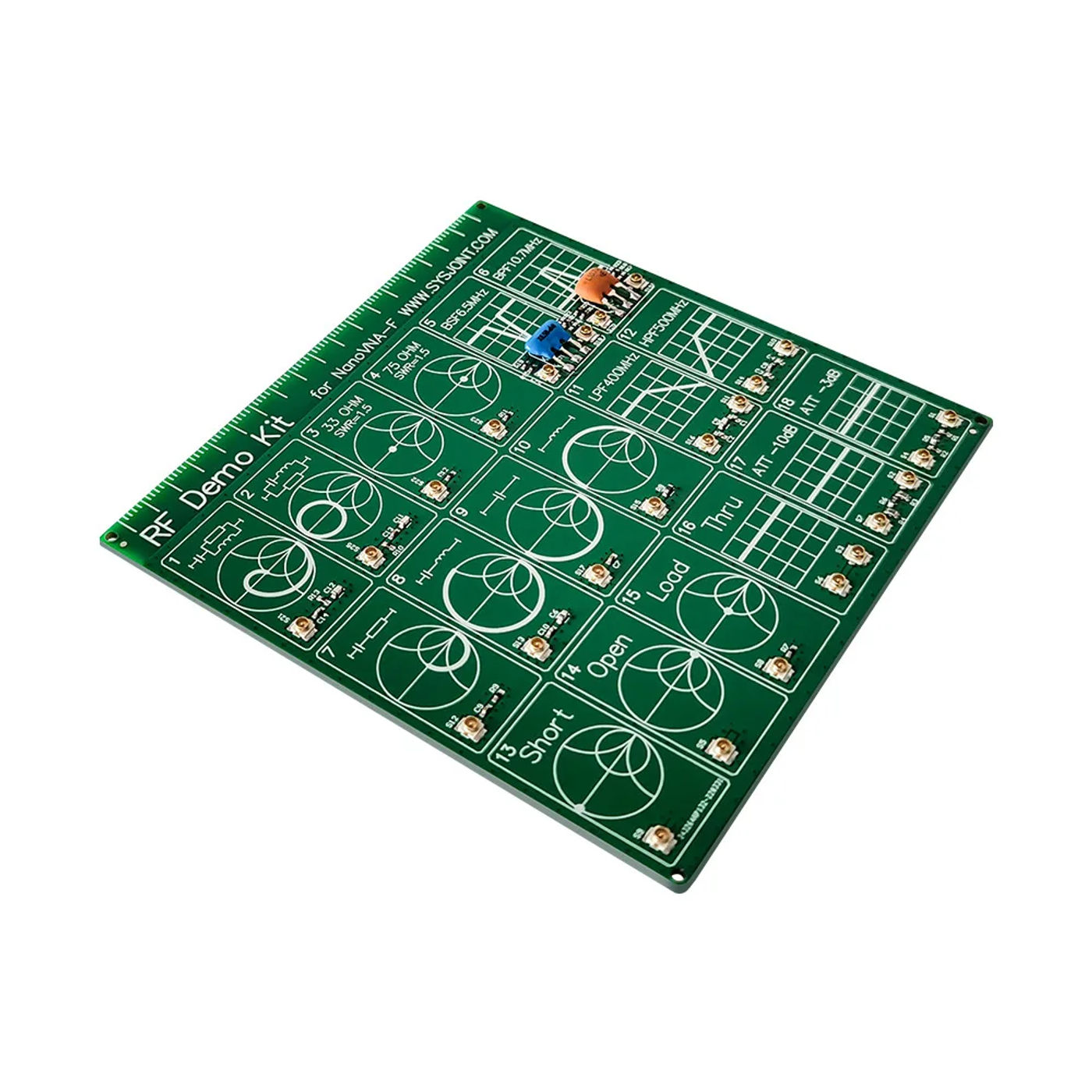

• RF Demo Kit NanoVNA RF Test Module 18 Functional Module Vector Network Analyzers Electrical Instruments Filter/Attenuator Module Feature: The board is completely integrated with 18 functional modules Equipped with 2 pcs of UFL patch cord for handy use The board is small and light-weight ,suitable for wearing with Each module is definitely chosen of superb and great reliability RF Demo Kit RF check board demo calibration board for learning Vector Network Analyzer , Antenna Analyzer verify calibration learning Specifications: Short-wave low-pass filter out LPF: 30MHz FM high-pass filter out HPF: 100MHz Commonly used SAW bandpass clear out BPF: 433MHz Video ceramic lure BSF: 6 RLC series and parallel circuit Includes R, L, C and combinational circuits Open /short circuit and cargo calibration circuit The attenuation circuit Note: 1 Due to the sunshine and display screen difference, the item&;s shade may be slightly various from the pictures 2 Please allow 1-3cm differences because of handbook dimension Package Included: 1x RF Demo Kit Board 2x UFL Patch Cord

•
•
•
•
•
