Description

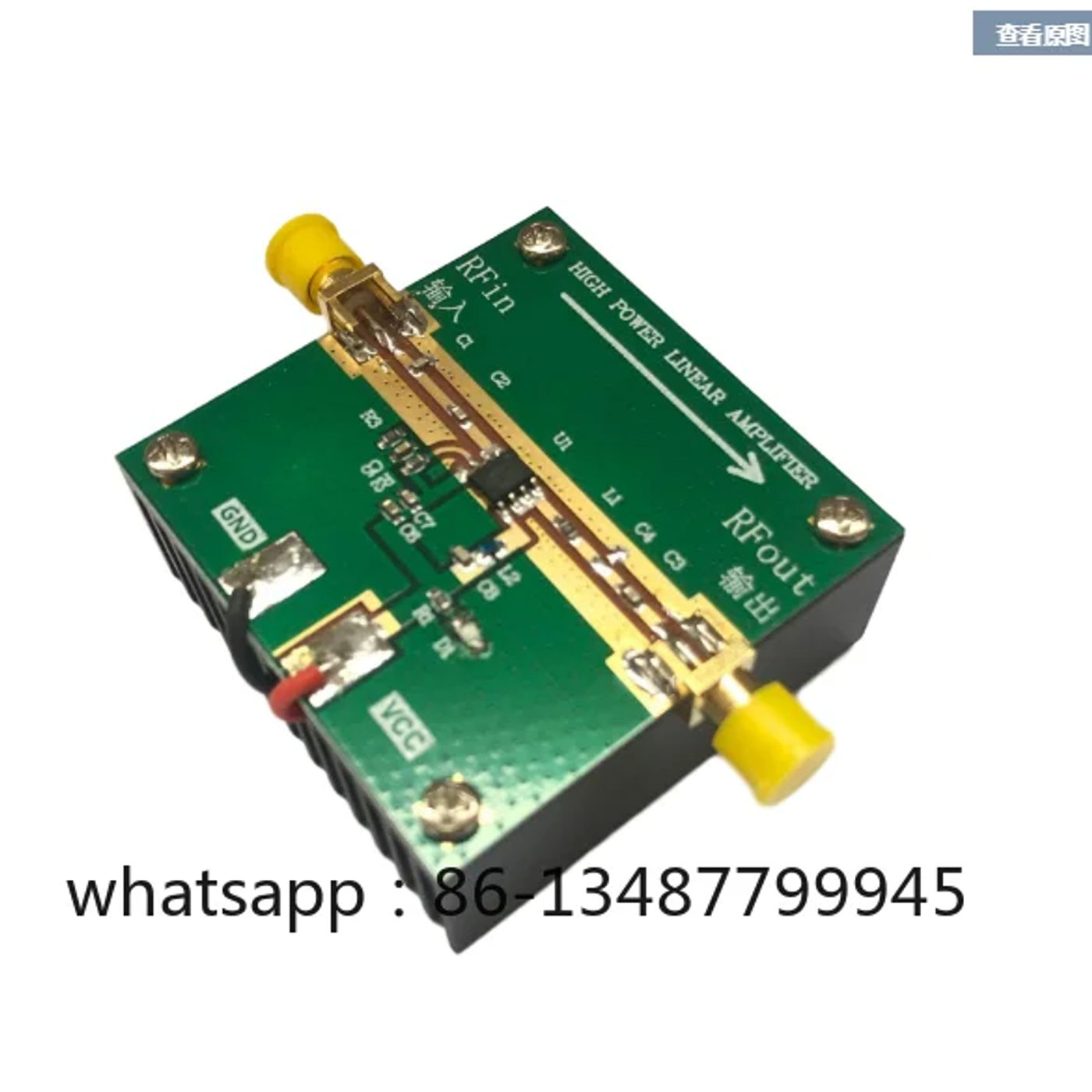

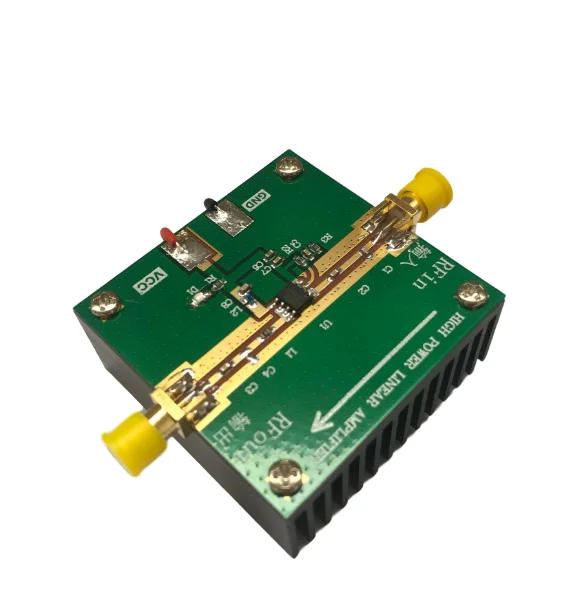

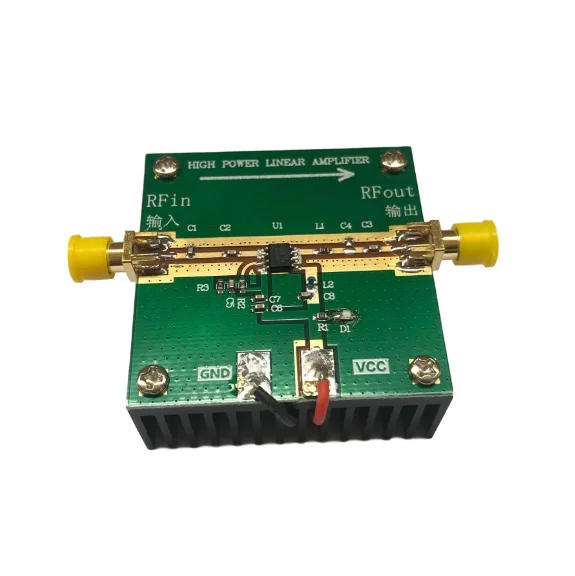

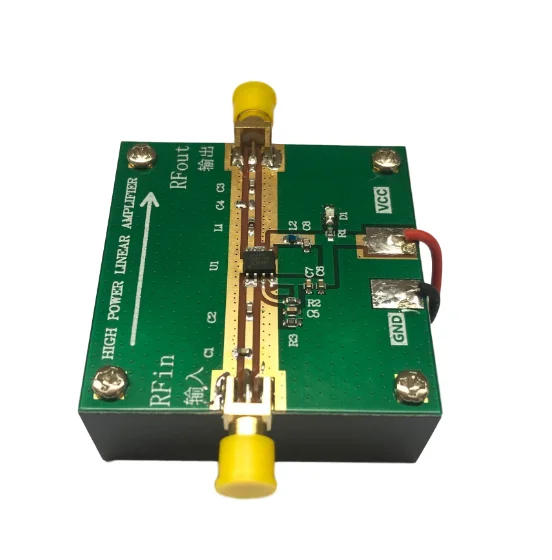

•   1W-2450MHZAmplifier(RF2126) High frequency radio frequency vast band power amplifier 1WHigh power;400M-2700M Link:https://pan.baidu.com/s/1RWHBQDJGYZ9MfsJAmGj4ZQ Extraction code:fnam Copy this content material and open the Baidu network disk phoneAppMore handy to function   First, module parameters Power supply:6V(500mA@At the time of energy output) Gain:12DB@2450MHz long*wide*High (70mm*50mm*20mmThe length is integrated in the protrusionSMAinterface     long*wide*High (50mm*50mm*20mm)ExcludingSMAinterface P1dB=30dB-1W@2450MHz(Default delivery) Operating Frequency:400-2700MHz Input and output impedance:50Ω  Second, the module physical diagram

•
•
•
