Description

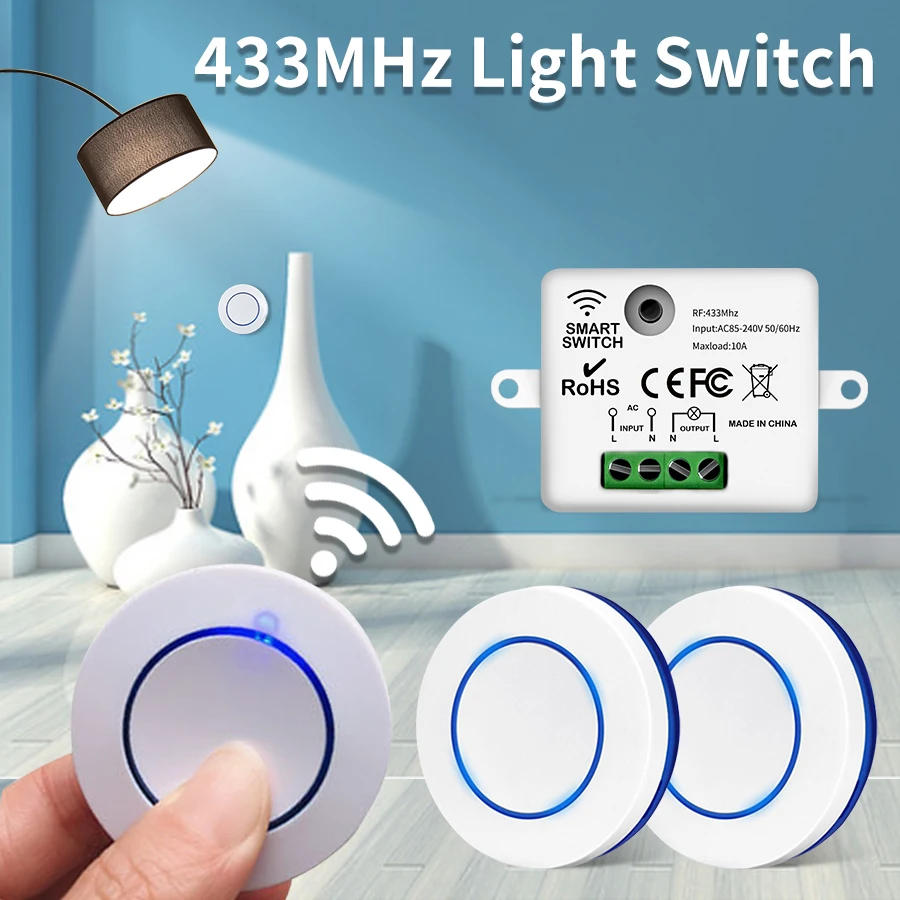

• Note:The relay controller is RF Receivers,the wall change is RF only change itself can not leadership light fixtures on off must work with rf receiver together:1. New mini around wi-fi panel switch(50mm*50mm*15mm) 2. 10A power: compatible for many equipment, more secure to apply 3. Mini body: can be instantly put in in the change bottom box, upkeep and establish are extra handy 4. Up to 50 meters distant differ extra obstacles, the shorter the distance, the additional serious the sign loss. 5. After turning off the power, switch on the power again, the machine fame is off:Transmitter (Remote) : Operating frequency: 433MHz Power by means of method of 2 Pcs 3V CR2016 Battery (Battery included ) Material: PVC; Button: 2 buttons; Size: 60mm x 30mm; Operating voltage: 3V ; Operating Current: 12mA; Transmitting power: 10mw; Modulation mode: ASK (AM). Encoding type: Learning. Transfers distance: 20~50m Controller (Receiver) : Input Power: AC85-240V 60HZ/50HZ Max current: 10 A RF Frequency: 433Mhz Working temperature:-30~+80 RF working mode: superheterodyne Receive sensitivity: >97dbm Transmitting distance: greater than 50 m ( open space) Remote storage:10pcs Support remote type: Learning code 1527code Size: 47*42*22 (mm)How to get the signals？Step 1: Press the training button(on the Receiver) twice . Wait for three seconds; Step 2: Press one button on the distant control. Wait for three seconds. Succeed to scrub the signals？Only one step :Press the educational button(on the Receiver) 8 times.

•
•
•
•
•
