Description

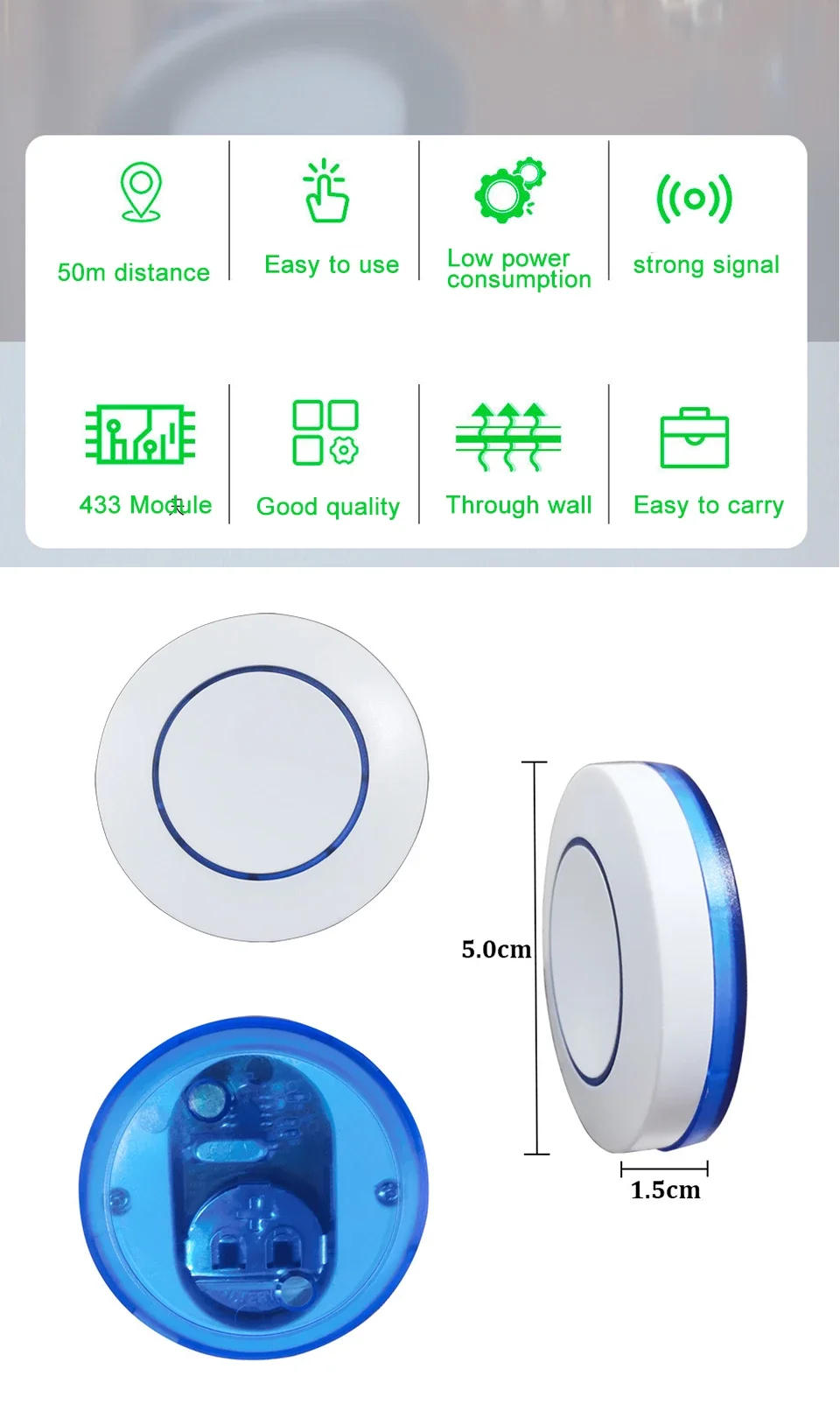

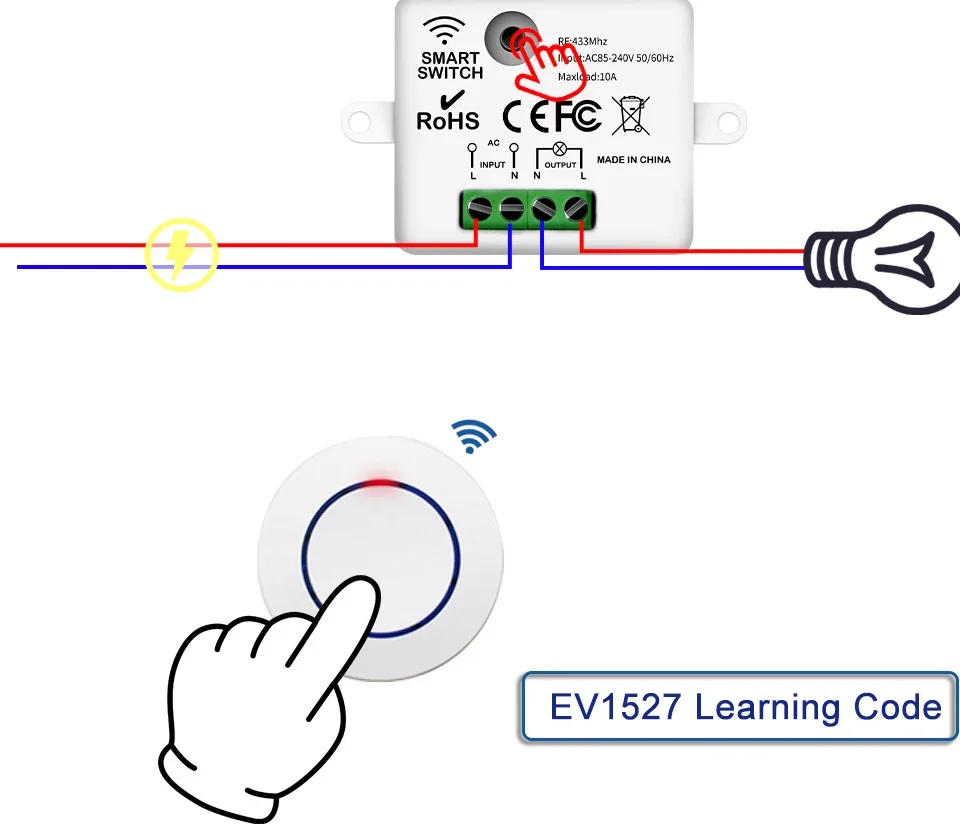

• Note: The relay controller is RF Receivers,the wall change is RF solely switch itself can not control lighting on off needs to work with rf receiver collectively Feature: 1 New mini round wireless panel switch(50mm*50mm*15mm) 2 10A power: appropriate for most equipment, more secure to use three Mini body: can be immediately put in in the swap backside box, maintenance and set up are extra handy 4 Up to 50 meters remote range extra obstacles, the shorter the distance, the extra serious the signal loss 5 After turning off the power, turn on the flexibility again, the machine fame is off Specification: Transmitter (Remote) : Operating frequency: 433MHz Power by way of 2 Pcs 3V CR2016 Battery (Battery incorporated ) Material: PVC; Button: 2 buttons; Size: 60mm x 30mm; Operating voltage: 3V ; Operating Current: 12mA; Transmitting power: 10mw; Modulation mode: ASK (AM) Encoding type: Learning Transfers distance: 20~50m Controller (Receiver) : Input Power: AC85-240V 60HZ/50HZ Max current: 10 A RF Frequency: 433Mhz Working temperature:-30~+80 RF operating mode: superheterodyne Receive sensitivity: >97dbm Transmitting distance: greater than 50 m ( open space) Remote storage:10pcs Support remote type: Learning code 1527code Size: 47*42*22 (mm) How to get the signals? Step 1: Press the training button(on the Receiver) twice Wait for three seconds; Step 2: Press one button at the remote control Wait for 3 seconds Succeed How to clear the signals? Only one step :Press the educational button(on the Receiver) 8 times

•
•
•
•
•
