Description

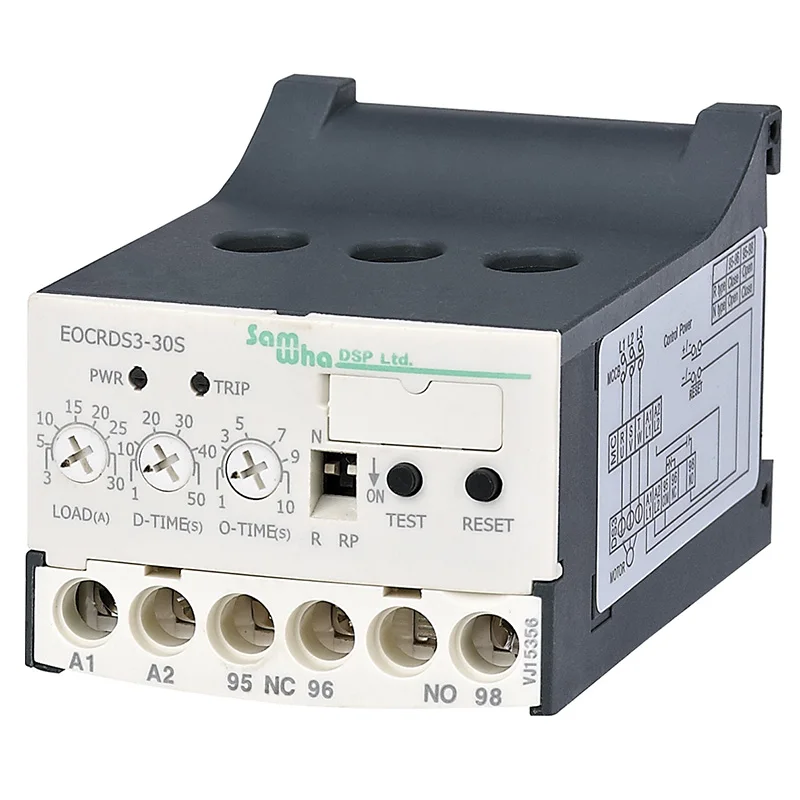

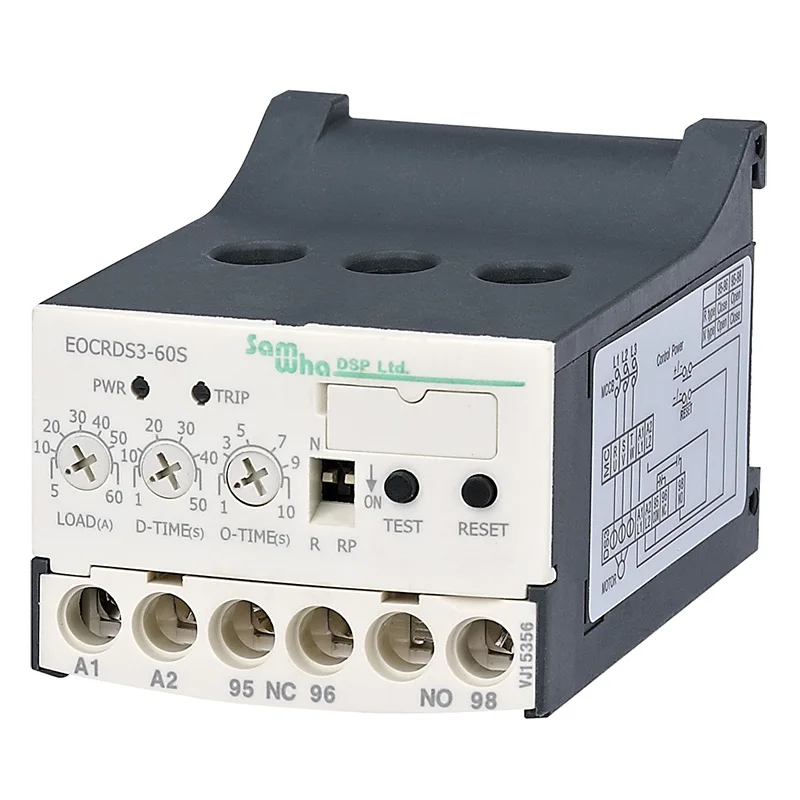

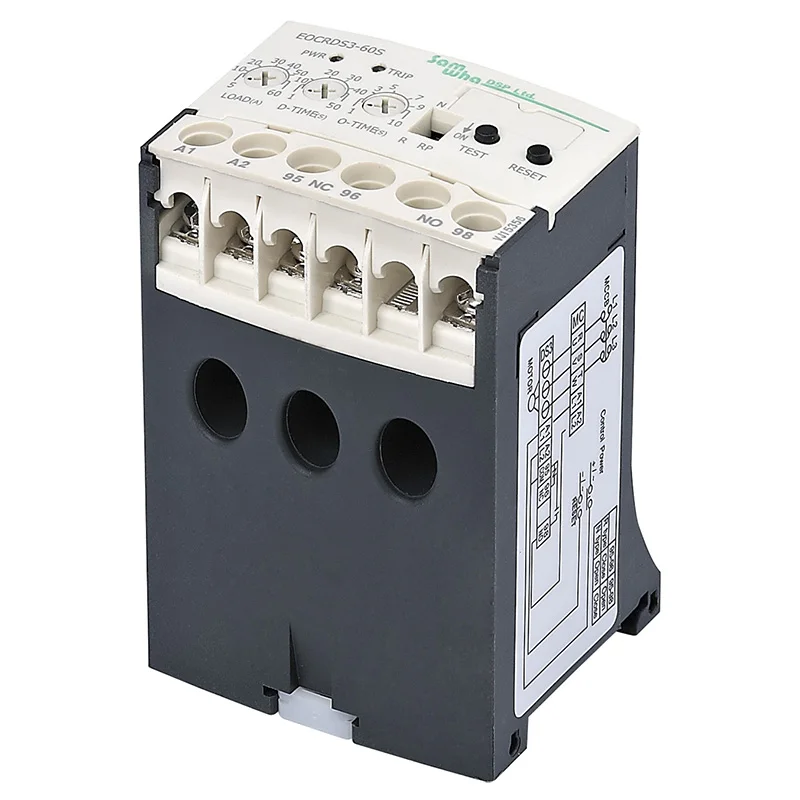

• Features ■ MCU(Microprocessor Control Unit) ■ Slim compact design ■ Multiple Protection Functions ■ Independently Adjustable Starting Trip Delay & Operating Time ■ PWR & Trip Indication LED ■ Trip Indication and Trip Cause Display ■ Manual Instantaneous / Electrical Remote Reset ■ Ambient Insensitive ■ Low Energy Consumption ■ (No Volt Release / Fail-safe Operation)→N Type ※ AC / DC Power Supply Universal ※ 3-Phase Dedicated ※ 3-Phase Dedicated Used for - Low Voltage Induced Electromotor (600V Level) Protective Relay - Break-Down Watch Current Relay - Alternative Replacement for the Existing Relay Protetcion Protective Item Operating (Trip) Time Over-current = O-TIME Stall = 4 set or less Phase Loss = D-TIME Reverse phase = zero set LED Ammeter Function: After the motor runs smoothly, flip the overcurrent surroundings knob slowly counter clockwise to the pink indicator light, which is one hundred pc of the actual working current And then flip the knob clockwise to just turn off the red mild at this point for the particular running latest price of about 103% Run / Operation Indicator: Relay Trip: Orange LED Power / standard working status: Green LED Manual / Electric Reset With test button held down,the orange LED is on and the product will day out after O-TIME The relay may be de-energized when RESET button is pushed or the management strength is disconnected Set After the set up is whole the settings as follows Set knob: D-TIME(Delay Time) Set two to 3 seconds longer than the motor beginning time Set knob: O-TIME(Over-current run time) Set less than the motor&;s persistence time with over-current Set knob: Load(Rated Current) Set over 110% of the motor&;s rated current of under 120% of its operating recent TEST Instruction With verify button held down,the orange LED is on and the product will day trip after O-TIME The relay can be de-energized when RESET button is pushed or the management strength is disconnected LED Indication Item PWR(Green)LED Trip(Orange)LED Power Blink × Starting Blink Flash Normal Running ○ × Over-current ○ Flash Trip × ○ Stall × Blink Phase loss × Blink Reverse phase Bink Flash Specifications Current Range : Type05) zero Type30) 3-30A Type60) 5-60A Type600) Use an external CT(secondary 5A)over 60A with 05 sort Operating Voltage(Un): Type220) 24-260VAC/DC Operating Frequency: 50/60Hz Operating Power: <2W Operating Temperature: -20℃·····+55℃ Waiting(t): D-Time 0 O-Time zero Asymmetry Set: %±10 Contact: 5A 250VAC Resistive Load Connection Diagrams: 35mm Din Rail(D) or Pane(P) Dimensions Construction Connection Diagram

•
•
•
•
•
