Description

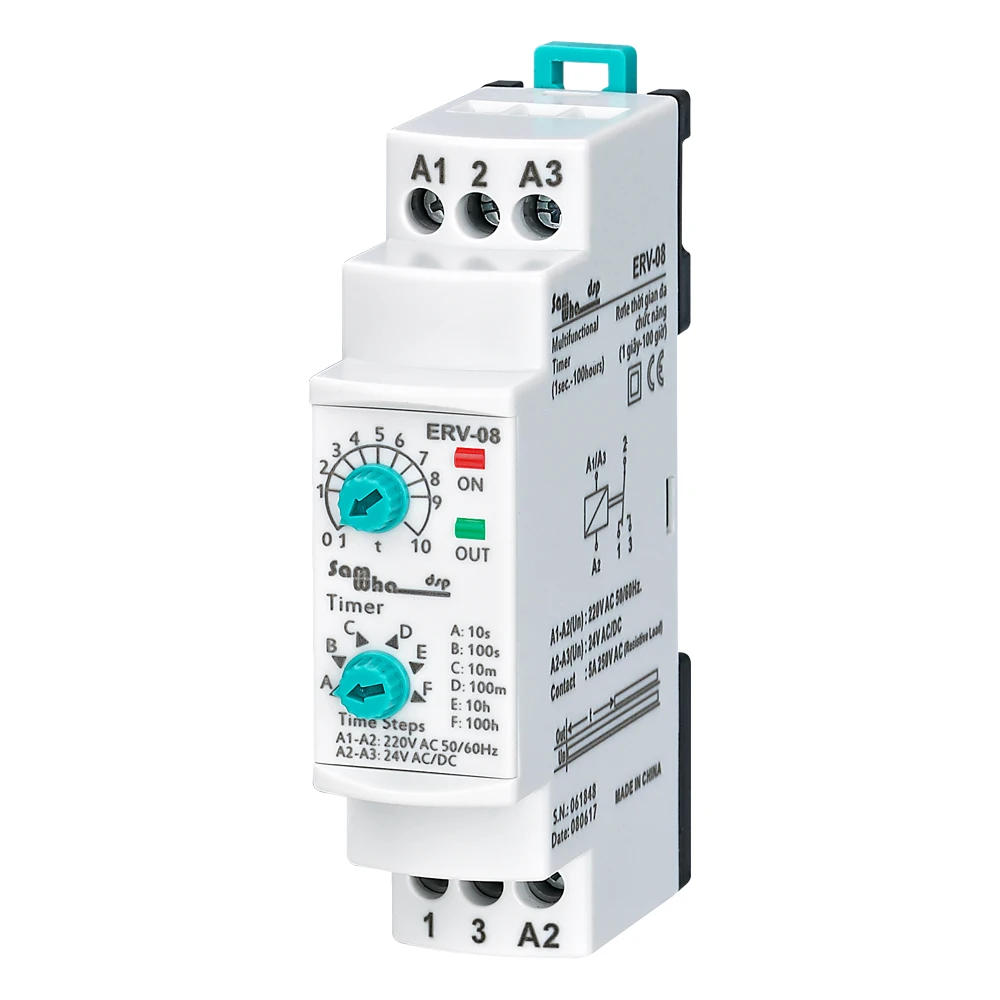

• General ERV-08 timer relays are utilized in all fields (industry, house, plant etc) need controlls associated with the time Usage and Working Principle Make the connections in line with the diagram Knob (Time Steps): Time differ alternative knob (t): Time value Example: Time is 75 minutes Make "Time Steps" knob to 100m (100 minutes) and make “t” knob between 7-8 In this case time is adjusted to seventy five mins Note: In order to regulate a lot sensitive greater time values, set “t” knob via chronometer in low phases and broaden the stage to the time required Example: Time is 25 hours "Time steps" knob to 10s (10 seconds) and “t” knob between 2-3 Make power on and discuss with a chronometer for two seconds If it's excessive or low, set “t” knob again Re-check the machine Make the "Time steps" knob 100h(100 hours) In this case, you set it extra touchy After atmosphere the time, power at the machine Device will beginning timing and in the meantime led switches on-off When system is timing contact out is (NC) 1 When the timing finish (set time is up) relay led light is switches on and get in touch with out is (NO) 3 Device retains secure until the flexibility is off Maintenance Switch off the gadget and launch from connections Clean the trunk of gadget with a swab Don’t use any conductor or chemical may well damage the gadget Make sure device works after cleaning Warnings Please use the machine in keeping with the guide Don’t use the system in moist Include a swap and circuit breaker in the assembly Put the swap and circuit breaker close by the device, operator can attain easily Mark the swap and circuit breaker as freeing connection for system Specifications Operating Voltage(Un): 150V-260V AC/24VDC or 110VAC/24VDC Operating Frequency: 50/60 Hz Operating Power: <4VA Operating Temperature: -20°C+55°C Time(t): 10sec, 100sec, 10min, 100min, 10hr and 100hours Display:: On led and Out led Connection Type: Terminal connection Weight: Max Contact:5A/250V AC (Resistive Load) Mounting: Vertical assembled in the panel or assembled at the din rail Operating Altitude: <2000meter Cable Diameter: 2,5mm² Working Mechanism Dimensions Connection diagram

•
•
•
•
•
