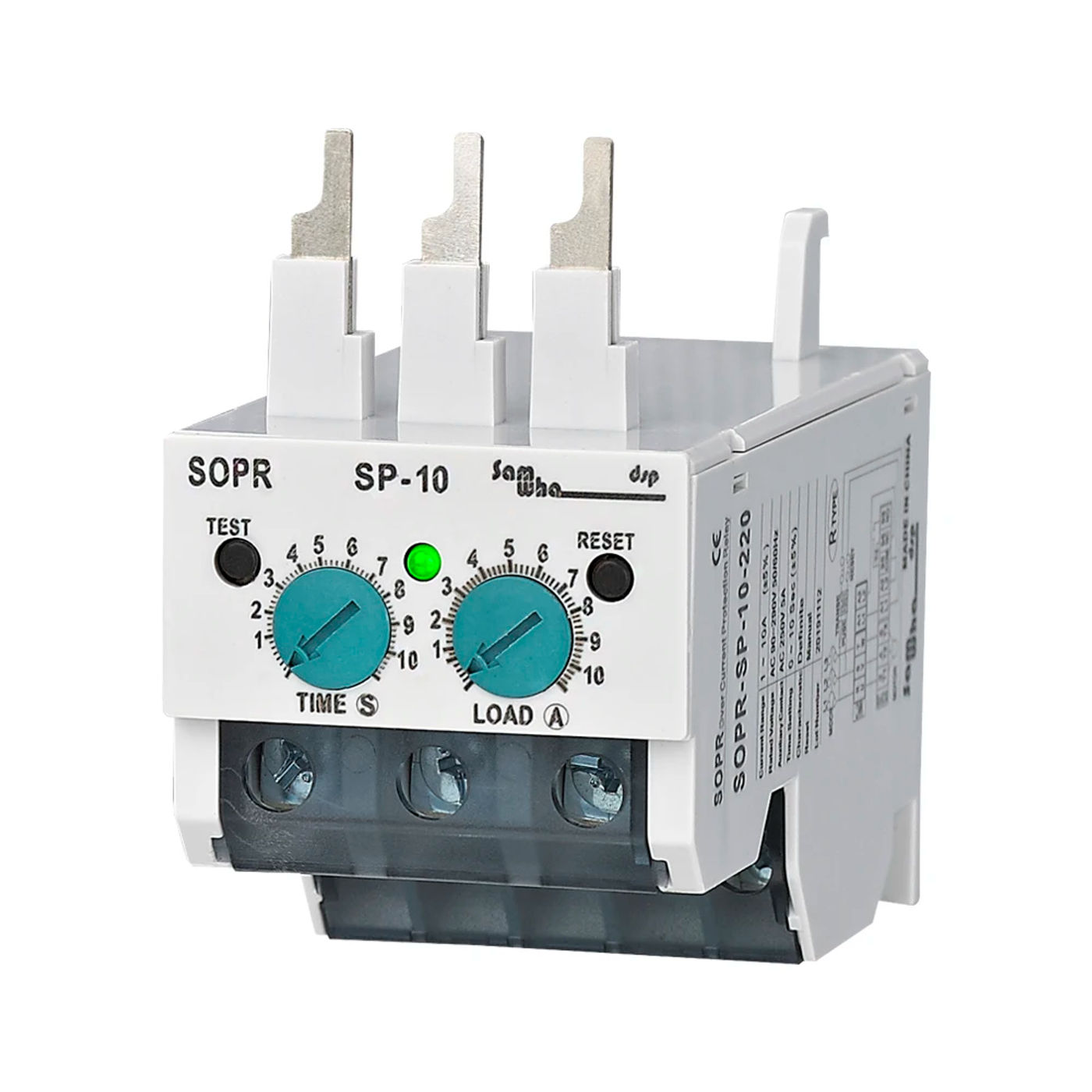

• General SOPR-SP collection Pin form overload and section misplaced relays are designed to stop the disasters originated from motor warmth Usage of Relay and dealing principle Time: Set bigger than the motor&;s delivery latest time and less than the motor&;s patience time with over-current LOAD: Set over 110% of the motor started recent or under 120% of its operating latest Warnings Please use the gadget in keeping with the guide Don’t use the device in moist Include a switch and circuit breaker in the assembly Put the switch and circuit breaker nearby the device, operator can attain easily Mark the switch and circuit breaker as releasing connection for system Specifications Current Range: Type10) 1-10A Type30) 3-30A Operating Voltage(Un): 24VAC/DC，110VAC, 220VAC, 380VAC Operating Frequency: 50/60Hz Operating Power: <2W Operating Temperature: -20℃·····+55℃ Waiting(t): 0 Accuracy: %±10(Current), %±15%(Time) Contact: 5A 250VAC Resistive Load Connection : Samwha-dsp kind Contactors LS GMC sort Contactors Dimensions Connection Diagram

•
•
•
•
