Description

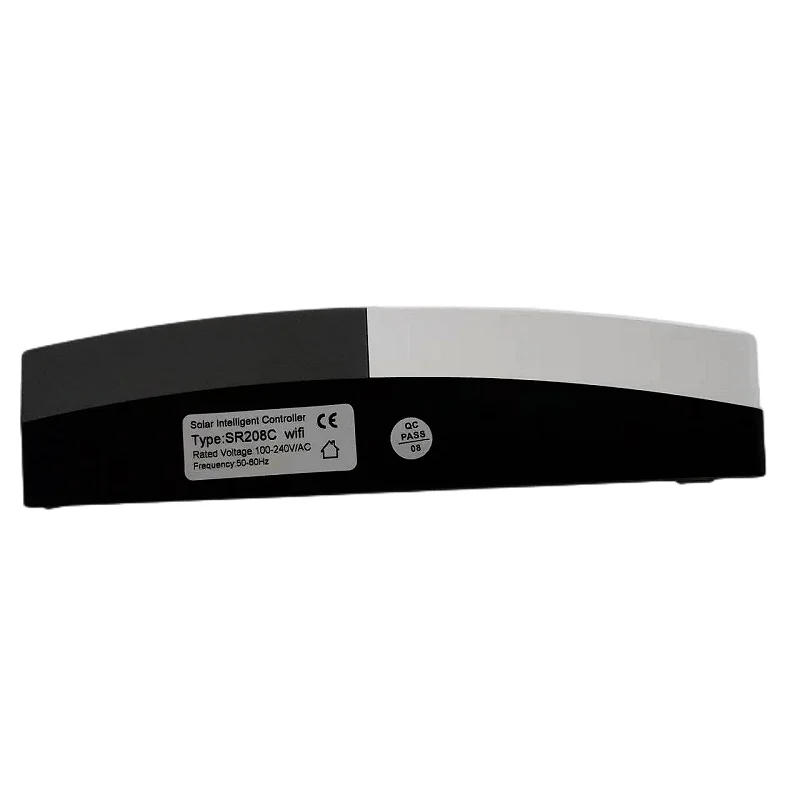

• SR208C Solar Controller WIFI Remote Control Optional AC100-240V for Split Solar Heating System Introduce: A BRIEF DESCRIPTION Temperature size accuracy:0 Conventional/HE pump both out there on APPLICATIONS CAPACITY Max of collectors:1 Max of garage tanks:1 Max of relays:2 Max of sensors:3 Max of visualization utility system:1 Main technical data: Size of Controller:178mm x120mm x43mm Power supply:AC100-240V50-60Hz Power consumption: < 2 Accuracy of temperature measuring: ± 0 Range of collector temperature measuring: -10oC ~220oC Range of tank temperature measuring: 0oC ~110oC Suitable energy of pump: 1 pump probable to be linked output energy < 300W Suitable strength of HK (backup heating): 1pc ˂500W Inputs: 3 sensors 1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC) 2pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC) Outputs:2 relays for circulate pump and backup heating Ambient temperature:-10oC ~ 50oC Water proof grade: IP41 Main functions: AH Afterheating/thermostat Password protection LOAD Tank heating

•
•
•
•
•
