Description

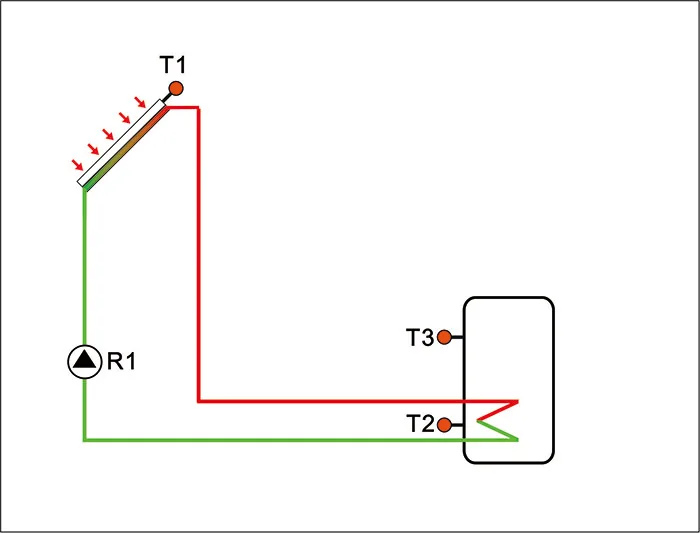

• Introduce:A Brief Description Temperature size accuracy:0 Conventional/HE pump both accessible on Applications Capacity Max of collectors:1 Max of storage tanks:1 Max of relays:2 Max of sensors:3 Max of visualization software system:1 Technical Data Size of Controller:178mm x120mm x43mm Power supply:AC100-240V,50-60Hz Power consumption: < 2 Accuracy of temperature measuring: ± 0 Range of collector temperature measuring: -10oC ~220oC Range of tank temperature measuring: 0oC ~110oC Suitable power of pump: 1 pump possible to be connected, output strength < 300W Suitable power of HK (backup heating): 1pc ˂500W Inputs: three sensors, 1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC), 2pcs*NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC), Outputs:2 relays, for circulation pump and backup heating Ambient temperature:-10oC ~ 50oC Water proof grade: IP41 Main technical data:Size of Controller:178mm x120mm x43mm Power supply:AC100-240V50-60Hz Power consumption: < 2 Accuracy of temperature measuring: ± 0 Range of collector temperature measuring: -10oC ~220oC Range of tank temperature measuring: 0oC ~110oC Suitable energy of pump: 1 pump possible to be related output strength < 300W Suitable strength of HK (backup heating): 1pc ˂500W Inputs: three sensors 1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC) 2pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC) Outputs:2 relays for circulation pump and backup heating Ambient temperature:-10oC ~ 50oC Water proof grade: IP41 Main functions:AH Afterheating/thermostat Password protection LOAD Tank heating OCEM Collector emergency shutdown OCCO Collector cooling OCMI Collector minimum temperature OCFR Antifreeze OTCO Tube collector PUMP Pump control mode OSYC System cooling OSTC Tank cooling MAN Manual mode BLPR Blocking defense OTDI Thermal Disinfection UNIT C-F change BEEP beeper fault warning Memory function Screen defense Trouble checkingSystem: (5) After all, you can see the controller on your app Check photo under Shipping & HandingMost goods from our shop could be shipped inside 3working days upon fee verified via BuydoThe delivery charge quotedDOES NOTinclude more expenses for distant discipline indexed by means of Express companiesETA(Estimated Time of Arrival)displayed in the directory is given by way of shipping companies yet that may now not be as motive of shipping behind schedule dispute We will NOT be responsible for any postpone during delivery including yet now not limited to customs postage checking, strike, force majeure and so forth Duty & TaxesImport duties, taxes and fees arenot includedin the thing fee or delivery expenses These fees are the client duty seek advice from your nation customs office to establish what these additional costs could be ahead of bidding/buying you obtain an item now not as described,please contact us inside 7 days and return the item for the proper one you receive an item DOA (damage on arrival) or a defects products, please touch us A replacement or refund might be provided after communication Some low-valued goods might not be returned NON-Seller Mistake returns, transport and handling fee would be on buyer’s accountAll go back merchandise needs to be in original package with all equipment incorporated stand at the back of our products so that you are constantly covered!To show it we provide a FREE Six-MONTH limited warranty Please learn the following most important details in regards to the Warranty Policy warrant all merchandise to be unfastened from defects in material or workmanship for a minimum of 6 month from date of buy entirely guarantee prospects an replace or refund within 7 enterprise days if merchandise DOA (damage on arrival) excludes traditional product lifetime wear-out, wear and tear or abuse would not follow to situations as a consequence of misuse, abuse, negligence, accident, improper application, wrong set up or alteration Please DO contact us first if there may be any difficulty with payment, delivery or merchandise obtained Negative suggestions will do no assist to resolve the issue

•
•
•
•
•
