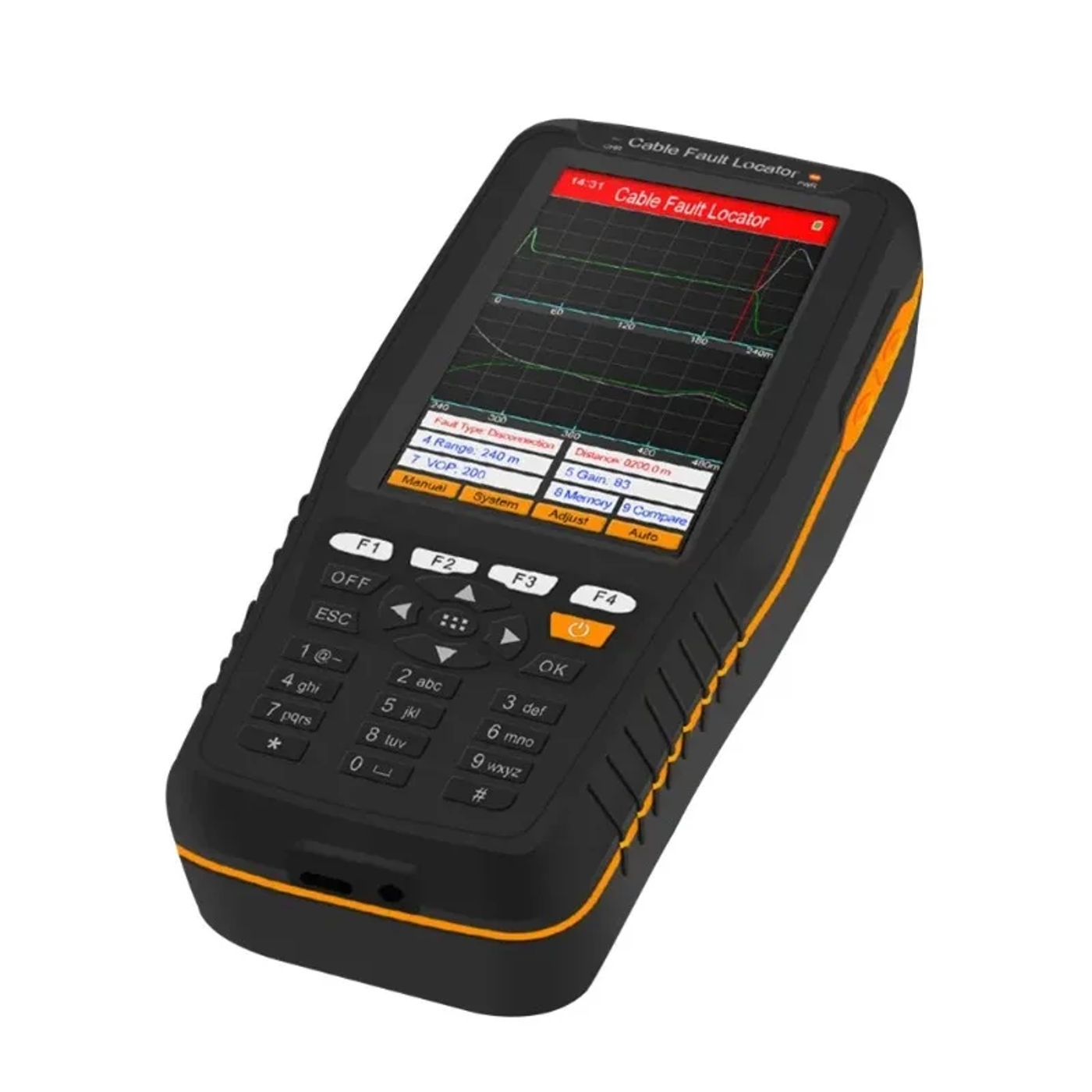

TDR Cable Fault Locator Coaxial Cable Communication Cable Wire Fault Locater Tester 1~8km
Product Introduction
TL280 cable Fault Locator is used for robotically checking out the exact location of the coaxial cable and communication cable's broken wires, mixed wires, ground gasoline and related cable fault
Product Feature
1) DAGC (Digital Gain Automatic Control) system: The gain would be modified digitally Eliminate the waveform distortion attributable to the potntiometer knob It can also do pure linear adjustment, which is handy for guide checking out
2) Digital waveform computerized popularity technology: mechanically respect the waveform which are challenging for human to establish
3)Using ARM CPU with FPGA technology, can soon carry out varied complicated operations and decide fault waveform precisely
4) Waveform comparison function, it is convenient to compare the check waveform of the fault cable and the conventional cable, and clearly find the fault point location
5) Large-screen LCD color display, humanization design of the interface menu, quick electronic press button, easy for users to function
6) High-power lithium battery, which are used for up to ten hours (with specialized strength charger)
7) With information interface to support clients upgrade the method remotely
Technical Specifications
1) Max dimension differ ( Manual): 8KM
2) Max size fluctuate (Auto): 4KM
3) Pulse width: 30ns ~ 50us
4) Pulse amplitude: 0 ~ 30V
5) Max resolution: 0
6) Dead zone: 0m
7) LCD: 480 * 800 shade display
8) Battery: 4400mAH lithium-ion battery
9) Power Consumption: 1W
10) Weight:0
11) Dimensions: 190*84*52mm
12) Working temperature: -15℃~+45℃
13) Storage temperature: -20℃-+55℃
