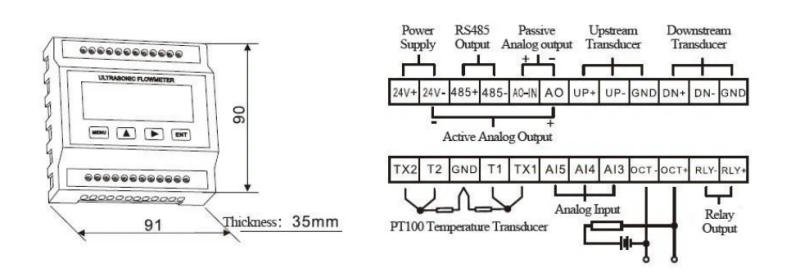

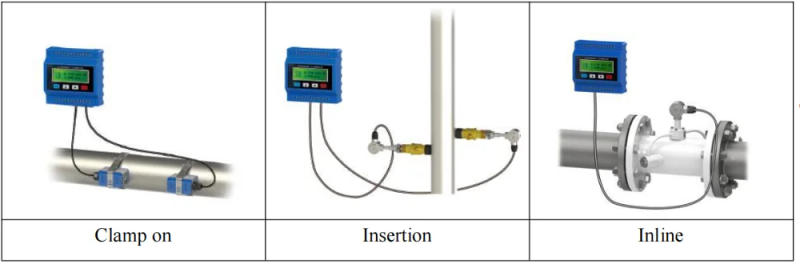

• TUF-2000M TS-2 TM-1 TL-1 Ultrasonic Flowmeter DN15-6000mm Water Flow Meters with RS485 Interface Modbus If you order greater than 10pcs, then contact with us to get extra discount TUF-2000M Introductions: The meter has the advantages of small size, total applications and low charge Using handbook rail installation, it is compatible to be put in in device field or distribution pane styles of transducers, measuring differ from DN15-DN6000mm No deserve to give up water Specifications: TUF-2000M Product Parameter Accuracy ≤1% Velocity vary 0~±10m/s, Bi-directional measurement Pipe length DN15~DN6000mm(optional) When DN15~20mm,the dimension accuracy can be reduced Temperature -30~90℃ / -30~160℃ Type of liquid Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc Pipe materials Steel, stainless steel, cast iron, copper, PVC, aluminum, glass steel, etc Liner is authorized Signal output 1 method 4-20mA output 1 means OCT pulse output 1 approach Relay output Signal enter 3 method 4-20mA input, achieve to heat dimension by connecting PT100 platinum resistor Interface RS485, assist MODBUS Power delivery DC8~36V or AC85~264V Protection Level Main Unit: IP65 Transducer: IP68 Humidity ≤85%RH Temperature Main Unit: -20~60℃ Transducer: -30~90℃ / -30~160℃ Standard Packing: TUF-2000M Host Steel Belt 10 meters Flow Signal Cable Connection terminal User manual Optional Transducer: Display: TUF-2000M Wiring Diagram: TUF-2000M Installation: Clamp on Transducer: Note: thanks to flight management , we are able to now not deliver the ultrasonic gel The buyer can purchase it regionally

•
•
•
•
•
