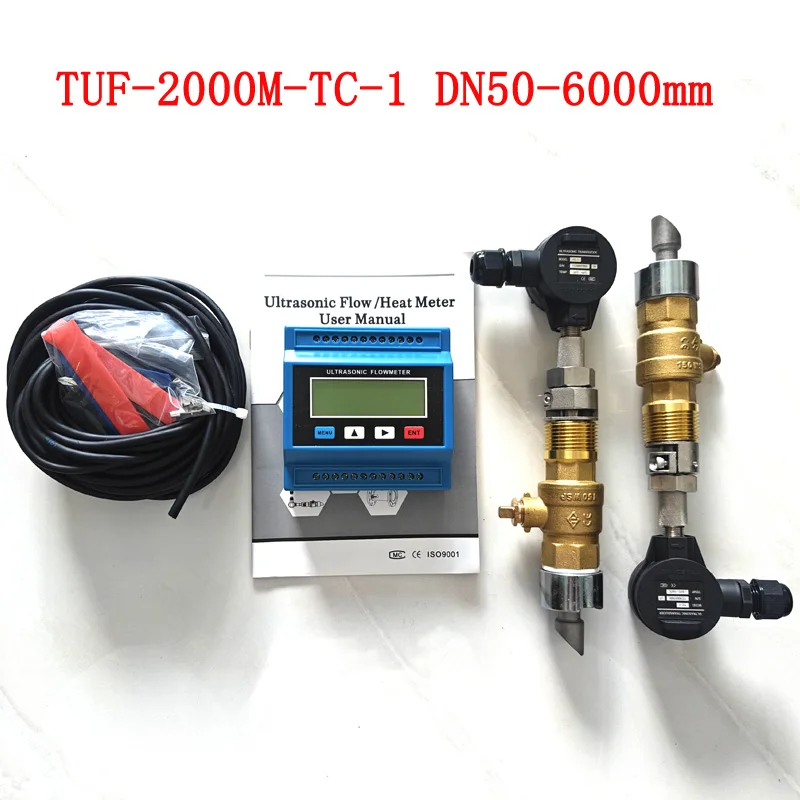

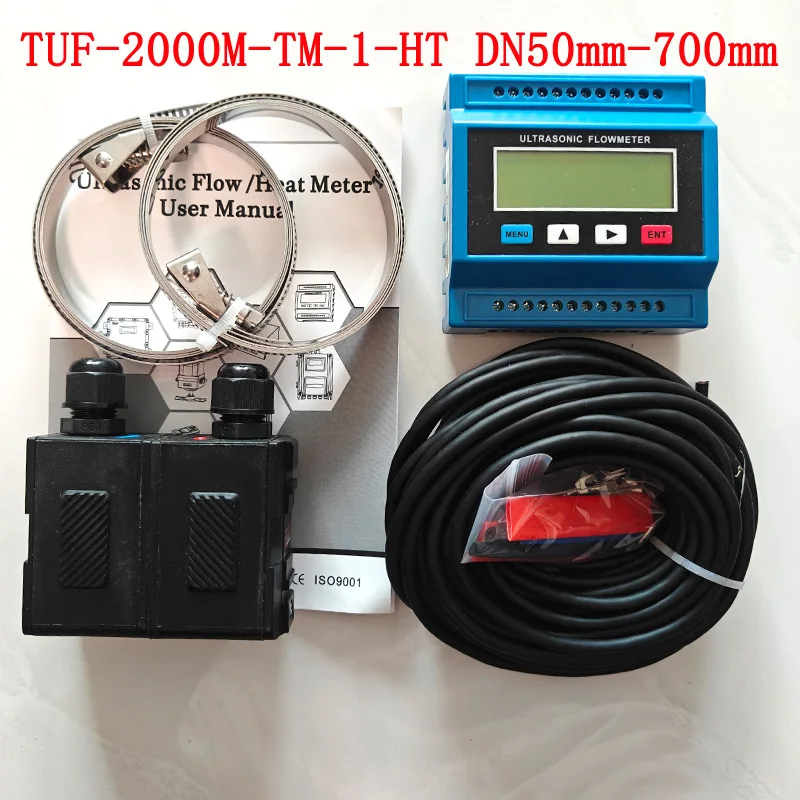

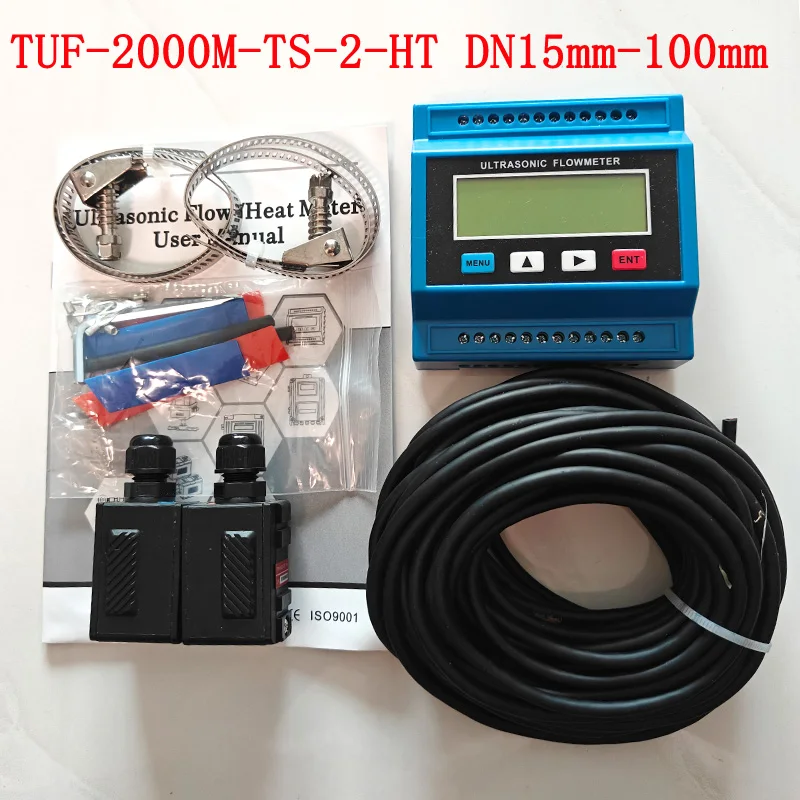

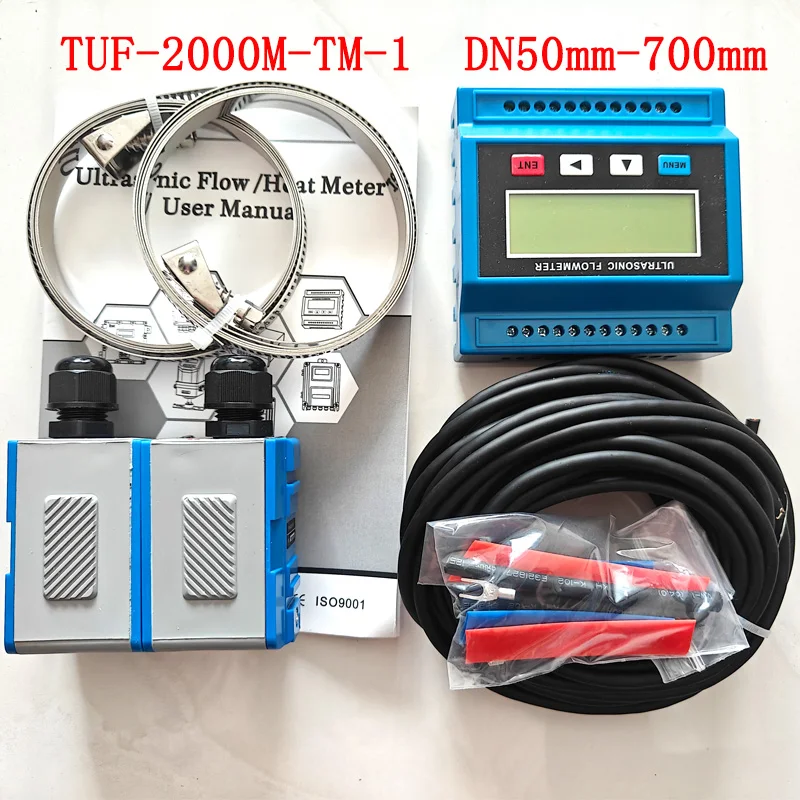

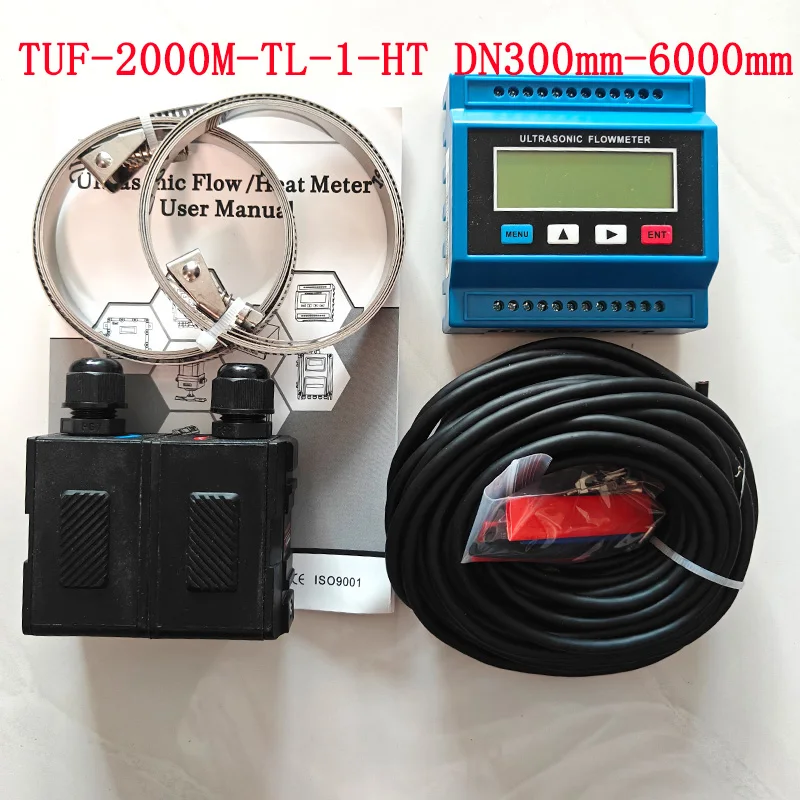

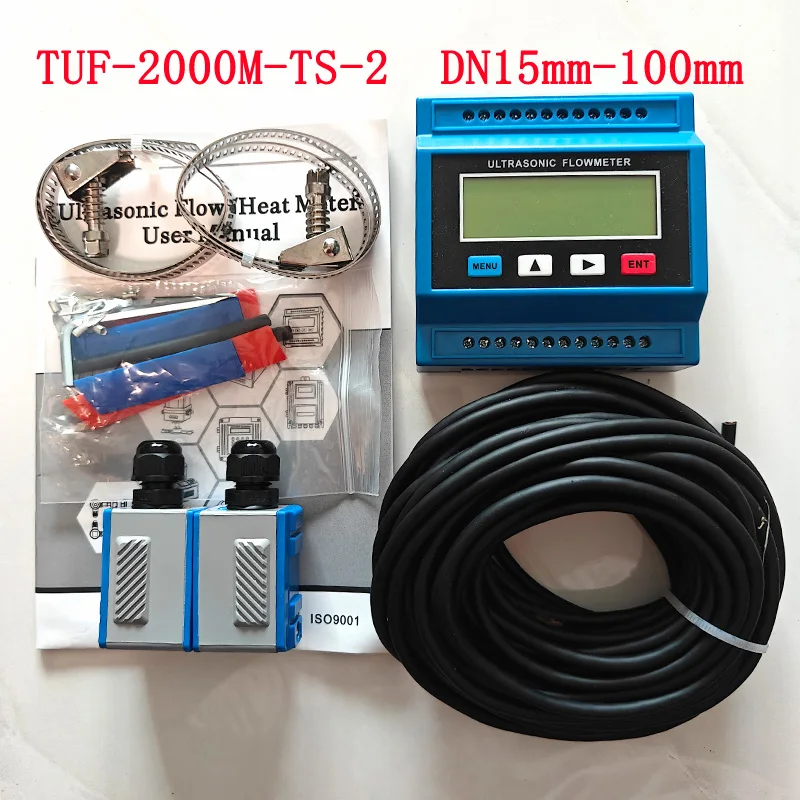

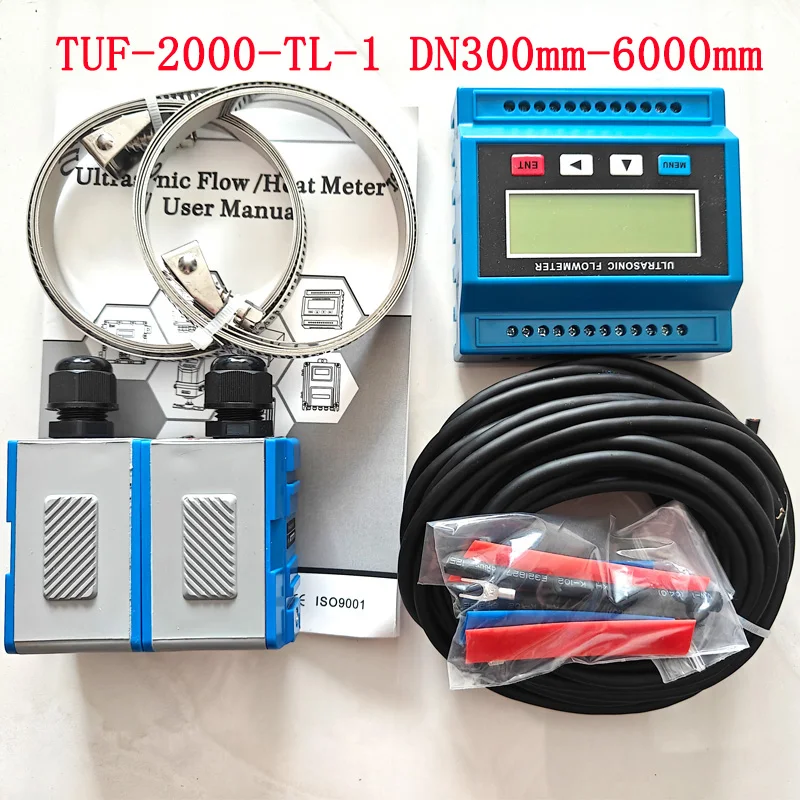

• TUF-2000M TS-2 TM-1 TL-1 Ultrasonic Flowmeter DN15-6000mm Water Flow Meters with RS485 Interface Modbus If you order more than 10pcs, then touch with us to get more discount TUF-2000M Introductions: The meter has some great benefits of small size, whole purposes and low cost Using instruction manual rail installation, it is suitable to be put in in instrument box or distribution pane kinds of transducers, measuring fluctuate from DN15-DN6000mm No should stop water Specifications: TUF-2000M Product Parameter Accuracy ≤1% Velocity vary 0~±10m/s, Bi-directional size Pipe size DN15~DN6000mm(optional) When DN15~20mm,the size accuracy can be lowered Temperature -30~90℃ / -30~160℃ Type of liquid Single liquid can transmit ultrasound, similar to water, sea water, sewage, oil, alcohol, and many others Pipe materials Steel, stainless steel, forged iron, copper, PVC, aluminum, glass steel, etc Liner is permitted Signal output 1 approach 4-20mA output 1 way OCT pulse output 1 manner Relay output Signal enter three means 4-20mA input, achieve to heat dimension by connecting PT100 platinum resistor Interface RS485, help MODBUS Power delivery DC8~36V or AC85~264V Protection Level Main Unit: IP65 Transducer: IP68 Humidity ≤85%RH Temperature Main Unit: -20~60℃ Transducer: -30~90℃ / -30~160℃ Standard Packing: TUF-2000M Host Steel Belt 10 meters Flow Signal Cable Connection terminal User guide Optional Transducer: Display: TUF-2000M Wiring Diagram: TUF-2000M Installation: Clamp on Transducer: Note: because of flight management , we are able to no longer deliver the ultrasonic gel The buyer can buy it domestically

•
•
•
•
•
