Description

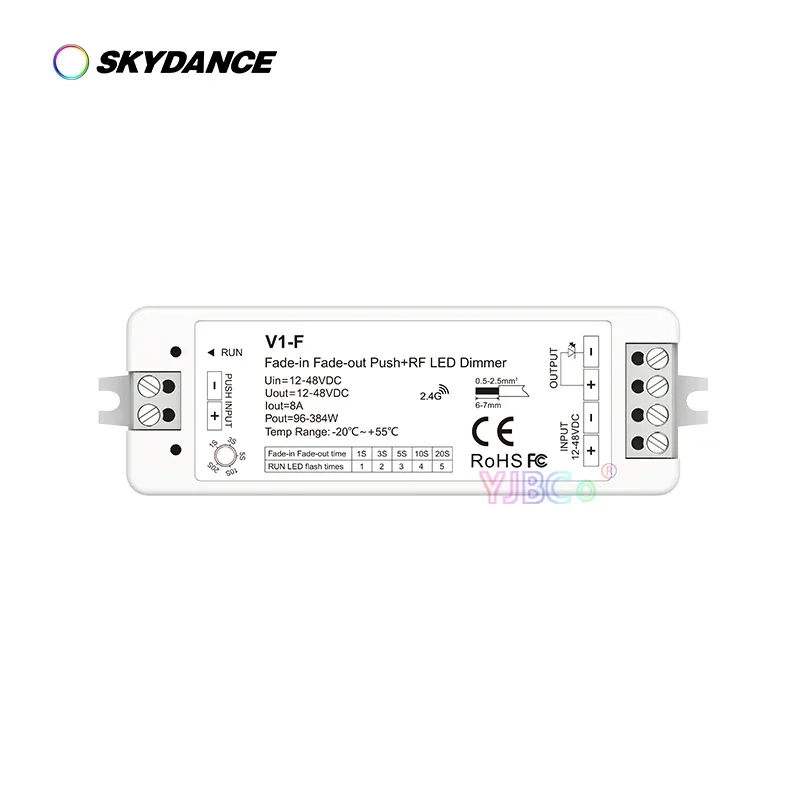

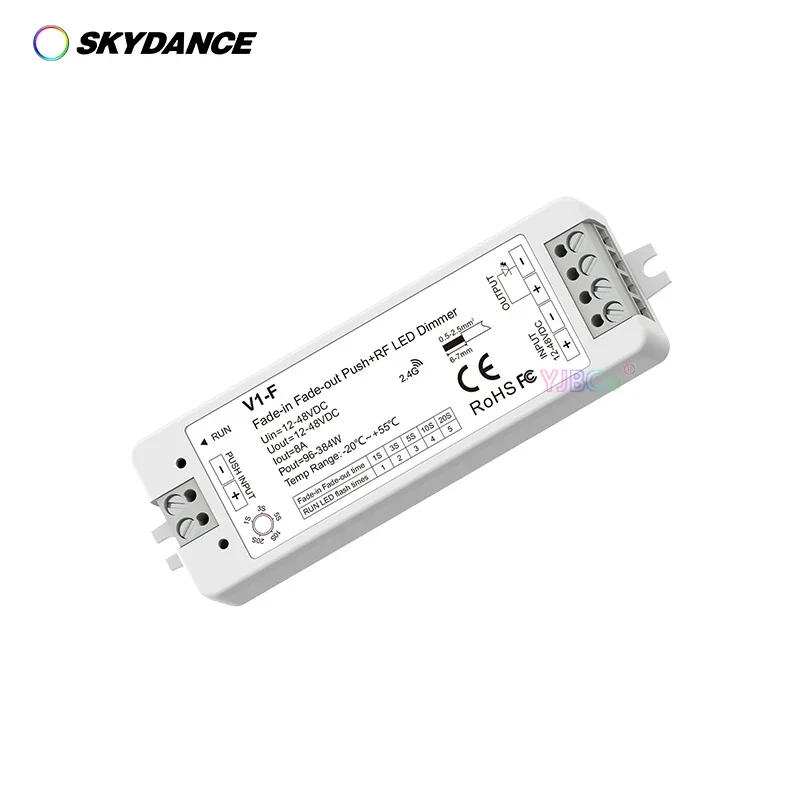

  • Fade-in Fade-out Push+RF LED Dimmer Model No.: V1-F 5 fading speed/Step-less dimming/Push Dim/Wireless remote control/Multiple defense Features: ● Fade-in Fade-out LED dimmer with delicate fading impression for comfortable start and stop. ● The fading pace could be set by way of knob potentiometer, 1S, 3S, 5S, 10S, 20S selectable. ● Connect with self-resetting steel button or push switch to realize on/off and 0-100% dimming function. ● Push input can accept either effective or detrimental trigger. ● Match with RF 2 single zone or a number of zone dimming hand held handheld remote control optional. ● Over-heat / Over-load / Short circuit protection, get well automatically. Technical Parameters: Input and Output Input voltage : 12-48VDC Input latest : 8A Output voltage : 12-48VDC Output latest : 1CH,8A Output energy : 96-384W Output type : Constant voltage Dimming news Input signal : Push Dim + RF 2 Control distance : 30m(Barrier-free area Dimming grey scale : 4096 (2^12) phases Dimming fluctuate : zero -100% Dimming curve : Logarithmic PWM Frequency : 2000Hz (default) Package include: 1pcs*V1-FFade-in Fade-out Push+RF LED Dimmer

  • Description Picture 2 of itemV1-F Single Color led Strip tape 12V-48V Push Dim CV Fade-in Fade-out LED Dimmer 24V 36V 1CH*8A 5 Fading Speed/Step-less Dimming
  • Description Picture 3 of itemV1-F Single Color led Strip tape 12V-48V Push Dim CV Fade-in Fade-out LED Dimmer 24V 36V 1CH*8A 5 Fading Speed/Step-less Dimming

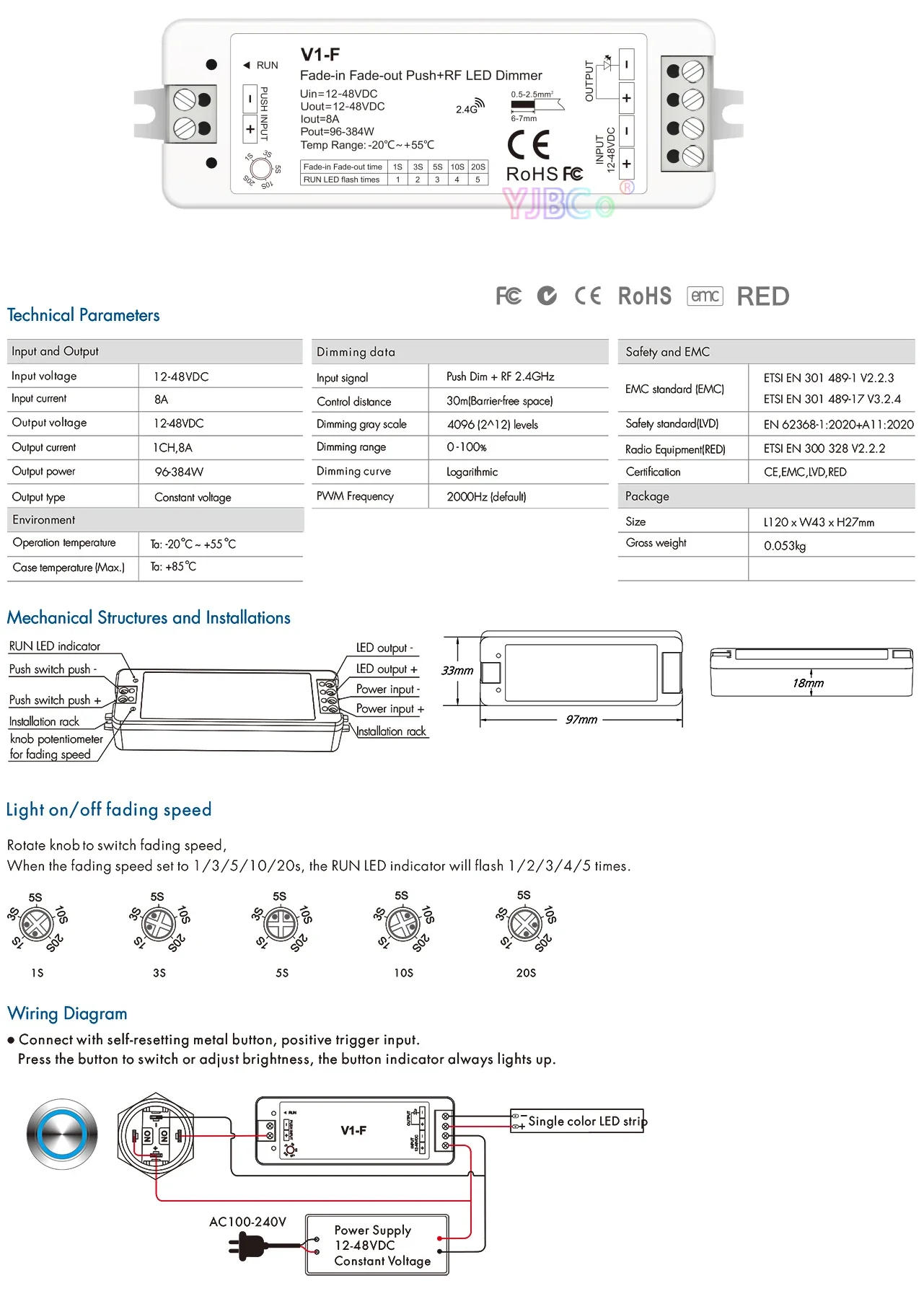

  • Description Picture 4 of itemV1-F Single Color led Strip tape 12V-48V Push Dim CV Fade-in Fade-out LED Dimmer 24V 36V 1CH*8A 5 Fading Speed/Step-less Dimming

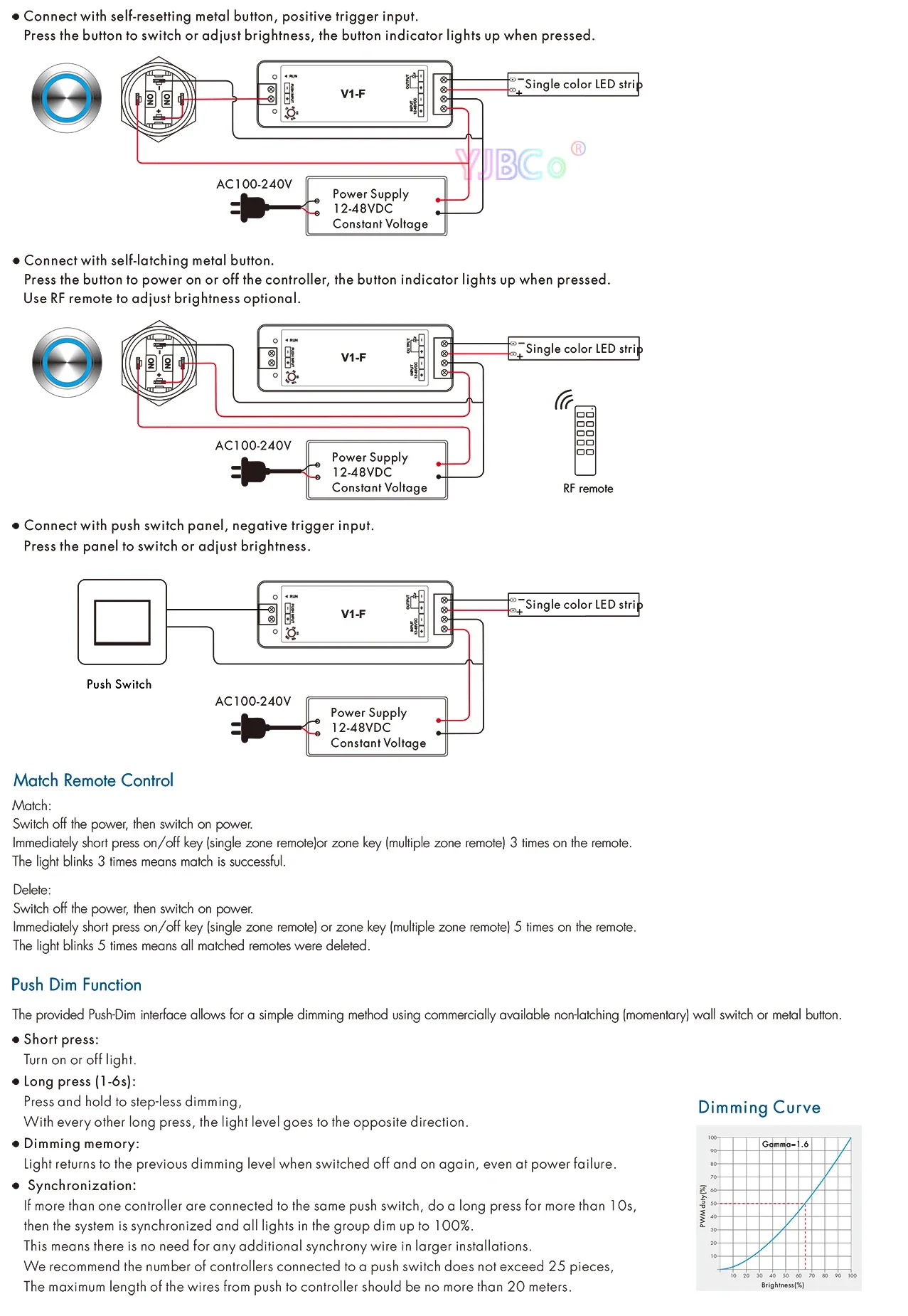

  • Description Picture 5 of itemV1-F Single Color led Strip tape 12V-48V Push Dim CV Fade-in Fade-out LED Dimmer 24V 36V 1CH*8A 5 Fading Speed/Step-less Dimming

Review

0 people rated this product
No reviews
Provided by:Raidlight

V1-F Single Color led Strip tape 12V-48V Push Dim CV Fade-in Fade-out LED Dimmer 24V 36V 1CH*8A 5 Fading Speed/Step-less Dimming

0.0
56%$ 10.84$ 24.53
VAT included
