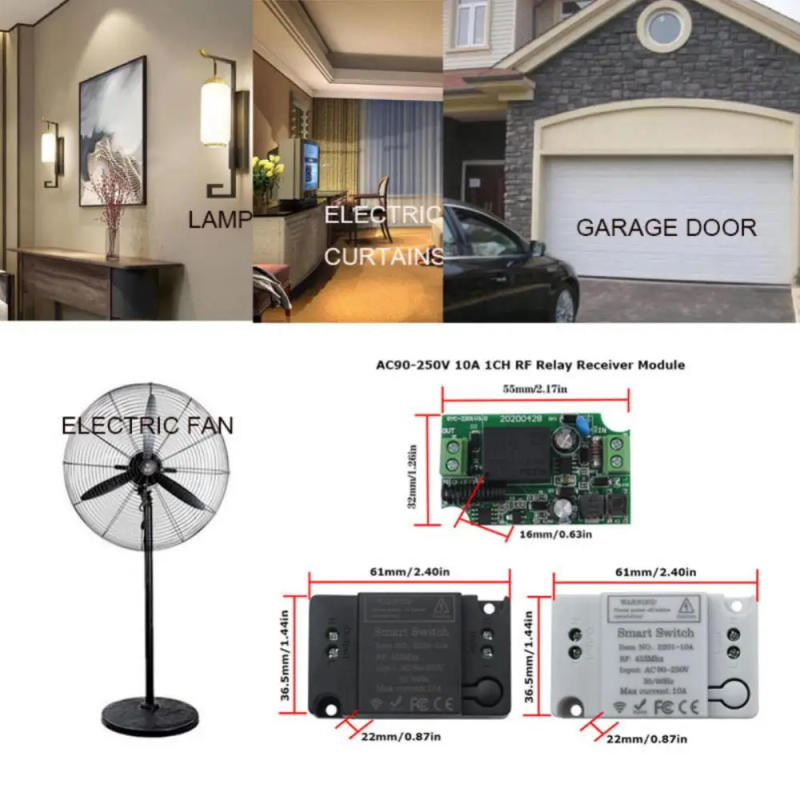

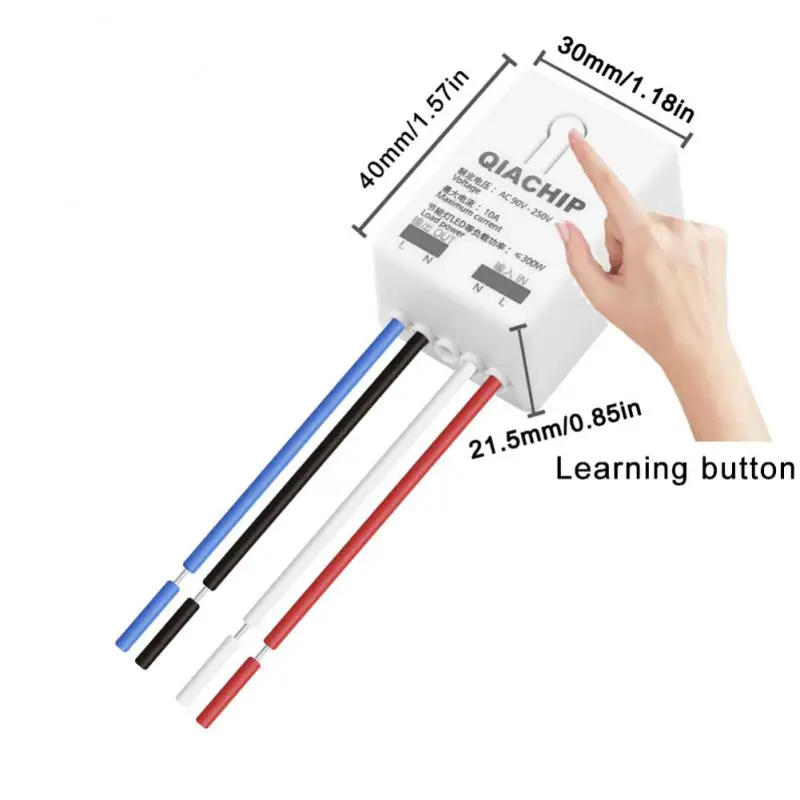

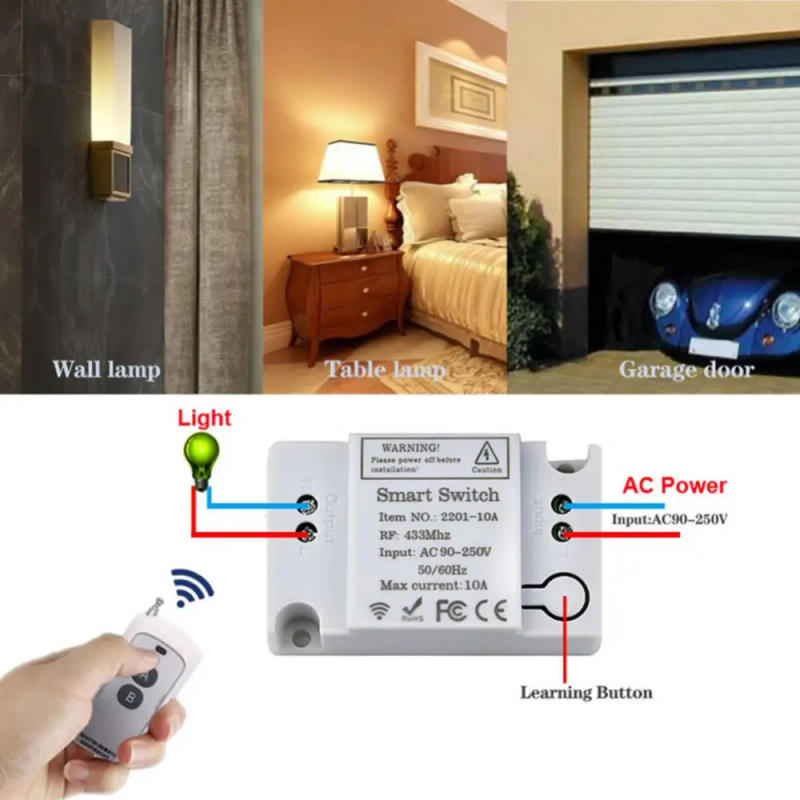

• Wireless RF 433Mhz Smart Switch Wall Panel Switch With Remote Control AC90V~250V Mini Relay Receiver For LED Light Lamp Fan If you don't know how the product works Please go to the lowest of the link to ascertain the description Description: Product parameters: Working voltage: AC 90-250V 50/60Hz Load current: ≤10A, load power: 1100W Standby current: 3～5mA RF frequency: 433MHz RF working mode: superheterodyne reception Receive sensitivity: >97dbm Remote management receiving distance: greater than 50 meters in open area Decoding method: MCU utility decoding; Modulation method: ASK (anti-interference, secure transmission performance) The style of remote controllers that may be stored: 20 Support handheld remote control type: intelligent learning kind 1527 studying code, 2262 fixed code (customizable rolling code); Output type: 1-way relay change signal, with load recent lower than 10A; A sort of working modes: jog, self-locking, interlocking, delay off (5 seconds, 10 seconds, 15 seconds, 20 seconds optional), light-on operate when incoming calls; Working environment: -20～80℃. Color: black, white Wiring method: fixed terminal Output wiring type: impartial wire, stay twine Specifications: About Working mode: [Jog mode]Press the remote control and do not launch the road to calories on, launch the hand-held handheld remote control line to disconnect; [Self-locking mode]Press the remote control line to energy on, and press the remote control again to disconnect the line; [Interlock mode]Press one of the buttons at the hand held remote control (such as the A button), the road is powered on, after which press another button at the handheld remote control (such since the B button) to disconnect; [Jog postpone off mode]Press the hand held remote control line to calories on, release the remote control to begin timing, and routinely disconnect the line after five seconds, 10 seconds, 15 seconds, 20 seconds (4th gear); [The operate of turning on the lighting fixtures for incoming calls]That is, the entire line robotically pulls in after power is supplied, additionally referred to because the function of turning on the lighting fixtures for incoming calls. Package Included: 1 x 433Mhz Receiver Module， 1 x Feel loose to stick the remote control (optional) Notes: Precautions: 1. Do no longer operate with energy on, you should flip off the power first to operate, and use it after the confirm is confirmed. 2. When the voltage of the remote control is insufficient, please update the battery in time (when the voltage of the handheld remote control battery is insufficient, the ultimate remote control distance turns into closer). How to apply the 433Mhz Switch？ About operating mode: Momentary: Press the hand held handheld remote control button, the relay connects, release the handheld remote control button, the relay connection. Switching: Press as soon because the remote control button, the relay connects, press the handheld remote control button twice, the relay contact. Interlock: Press the hand-held handheld remote control button A, the relay connects, press the remote control button B, the contact relay. Time delay mode: Press the handheld remote control button, the relay connects, when launch the hand held handheld remote control button, after 5s or 10s or 15s or 20s, the relay disconnects automatically. Auto power on when calories on: when power supply, the relay connects. Code cleanup: Press the training button at the receivers 9 occasions until the LED indicator turns off after which flashes until it flashes five times. This suggests that the code change into efficiently cleared; After clearing the code, all hand-held handheld remote control can no longer work. Code learning: (instant) Press the training button at the receiver once, it comes into immediate surroundings mode. Wait for a moment, the LED indicator will flip on, it will input the training state. Press the hand-held handheld remote control button, the LED indicator on the receiver board will flash three times after which turn off, Training successful. Code study: (switching - load on/off, common switch) Press the learning button at the receiver twice, it comes into switching mode Wait for a moment, the LED indicator will flip on, it's going to enter the training state. Press the handheld remote control button, the LED indicator at the receiver board will flash 3 times after which turn off, Training successful. Exploring code: (fix) Note: When you choose lock mode, with the aim to study extra remote control, it's best to study two varied buttons, the first time chanced on for "ON", the second time learned for "OFF". For example: Button A = ON, Button B = OFF Press the learning button on the receiver 3 times, it enters into latching mode. Please wait a moment, the LED indicator on the receiver board may be on, Press the handheld remote control button A, LED flashlight 3 times. Press the hand-held remote control button B. LED indicator flashes 3 times after which turns off, Training successful. A = ON , B = OFF. Learn code: (time delay mode) Press the educational button on the receiver ahead time, time for five seconds. Press the educational key at the receiver for the fifth time, put off time for 10 seconds. Press the educational key on the receiver for the 6th time, postpone time for 15 seconds. Press the learning button at the receiver seven times, postpone time for 20 seconds. The LED indicator could also be on. Press the handheld remote control button, the LED indicator flashes thrice after which turns off, learning successfully. Learning code: (auto-on when grew to become on) Press the learning button on the receiver eight times, it comes into surroundings mode Wait for a moment, the LED indicator will turn on, it'll enter the academic state. Press the handheld remote control button, the LED indicator on the receiver board will flash three times after which flip off, Training successful. Note: 1. The formulation can shop 25 pcs. distant controls, if the remote obtain greater than 25pcs, the original remote control could be lost. 2. When you purchased our products, it may be installed one distant randomly, as a results of each product has been examined before it may be arranged for shipment. Therefore, please delete the present news for the 1st use. 3. After deleting the data, all distant controls can no longer work.

•
•
•
•
•
