Description

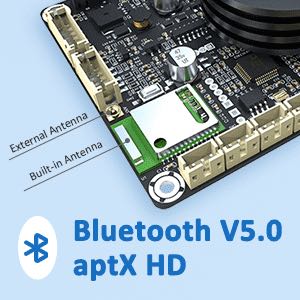

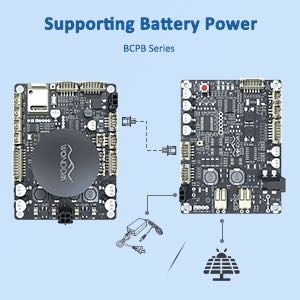

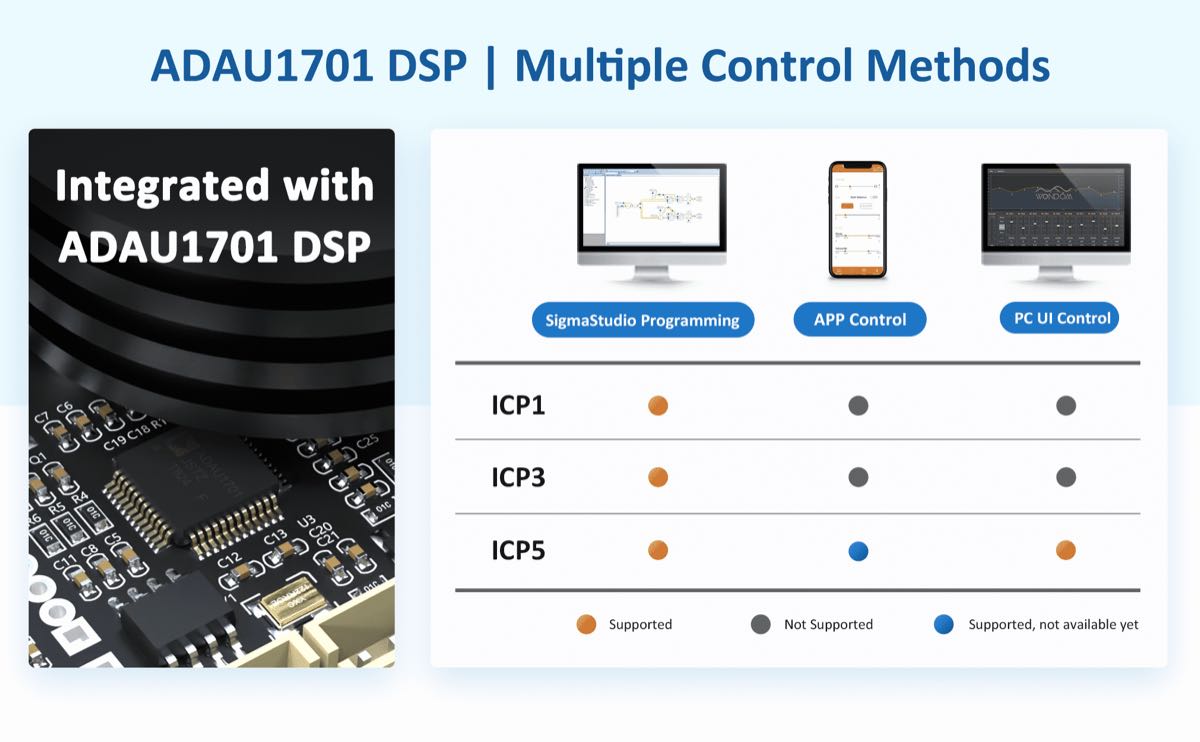

• JAB3+ is audio amplifier board incorporated with Bluetooth five (supporting aptX HD) and ADAU1701 DSP, offering a genuine all-in-one audio solution for purchasers JAB3+ covers 2 x 50W, 2 x 30W, 1 x 60W and 1 x 100W four units Thanks to the geared up ADAU1701 DSP, JAB3+ helps programming with SigmaStudio, APP control and PC UI management after reference to WONDOM ICP programmers, by way of which, you possibly can regulate volume, gain, frequency and EQ environment to customize your own audio In addition to speaker output, JAB3+ offers a further combined signal output, that are input to different audio amplifier board to build audio 2 / four formula You can set it as stereo or mono with PC UI in line with the related amplifier board Besides power supply, JAB3+ supports battery power, which tremendously improves the portability Wireless audio input, incorporated ADAU1701 DSP, battery power, gentle weight and fine audio functionality make JAB3+ completely compatible for transportable Bluetooth speakers, home audio, backyard audio and DIY purposes A DC12V-26V power supply is needed with Bluetooth V5 JAB3+ employs Bluetooth 5 module for audio input, which helps assorted audio codecs as aptX, aptX HD, aptX LL, SBC & AAC and excessive receive sensitivity with RF power up to 9dBm and -90dBm There is a integrated antenna equipped in this board So you can directly pair JAB3+ with the device to play track An external antenna port is also offered at the board to guarantee the secure connection and excessive audio performance in such purposes that JAB3+ is installed right into a speaker or a cabinet with ADAU1701 DSP, Supporting Programming with SigmaStudio, APP and PC UI management JAB3+ also is incorporated with high performance ADAU1701 DSP chip for audio signal processing Four ports for exterior potentiometers are fixed on JAB3+ You can use the external potentiometers to regulate the volume, achieve and frequency even if JAB3+ is installed in a speaker After reference to WONDOM ICP programmers, you can write a program with SigmaStudio, or get real-time handheld remote control of your audio programs by way of APP or PC UI, via which, you possibly can adjust gain, volume, high/low-pass filter, EQ and other parameters UI Miumax PC UI - Miumax for JAB3+ Download Link three Line Input In addition to Bluetooth input, JAB3+ helps three line input Signals from the two enter tricks might be mixed before being transmitted to the amplification circuit You can get the three AUX-IN cable within the Functional cables kit for JAB3+ (AA-JA11117) Battery Power Beside strength supply, JAB3+ helps battery power, which significantly improve the portability of the programs Please note, since JAB3+ isn't geared up with charging circuit, it's endorsed to use WONDOM BCPB sequence battery boards, which are equipped with charging circuit, to power JAB3+ External Potentiometers Four ports for exterior potentiometers are fixed on JAB3+ for simple management of the entire audio system, even supposing JAB3+ is integrated into a cupboard You can use them to regulate acquire and cut-off frequency comfortably The purposes of those potentiometers would modify mechanically in line with the output mode You can discover 4 cables together with potentiometers within the Functional cables package (AA-JA11117) Signal Level Sensor System for Lower Power Consumption JAB3+ employs signal point sensor formulation for decrease strength consumption and longer playback time It will constantly video display the enter sign and there is a preset sign voltage threshold When there isn't any signal (voltage is less than the threshold) detected for 5min, the amplifier module will enter into standby mode automatically, in which condition, it will devour decrease energy When there's sign detected, it'll run straight without any miss of the audio for Integration Bluetooth pairing cancellation operate is included on JAB3+ You can disconnect with Bluetooth through one clear-cut press, with out worry about which Bluetooth is paired Standby function also is accessible on JAB3+ Ports for External LED signals are offered to expose the reputation of Bluetooth and signal, so you can have a top level view of the running condition of JAB3+ Accessories We present optionally available equipment for customers’ simple operation With 3&;&; x 2&;&; L-style bracket (AA-JA11115), you could immobilize JAB3+ in connection and installation stage Functional cables package (AA-JA11117) gives all of the cables you wish for larger use of JAB3+ As for the detailed information, please seek advice from AA-JA11117 Include 1pc AA-JA32173, JAB3+ - 250 1pc Molex-2Pos energy supply cable, 50cm/ 19&;&; 1pc Molex-4Pos speaker cable, 50cm/ 19&;&;

•
•
•
•
•
