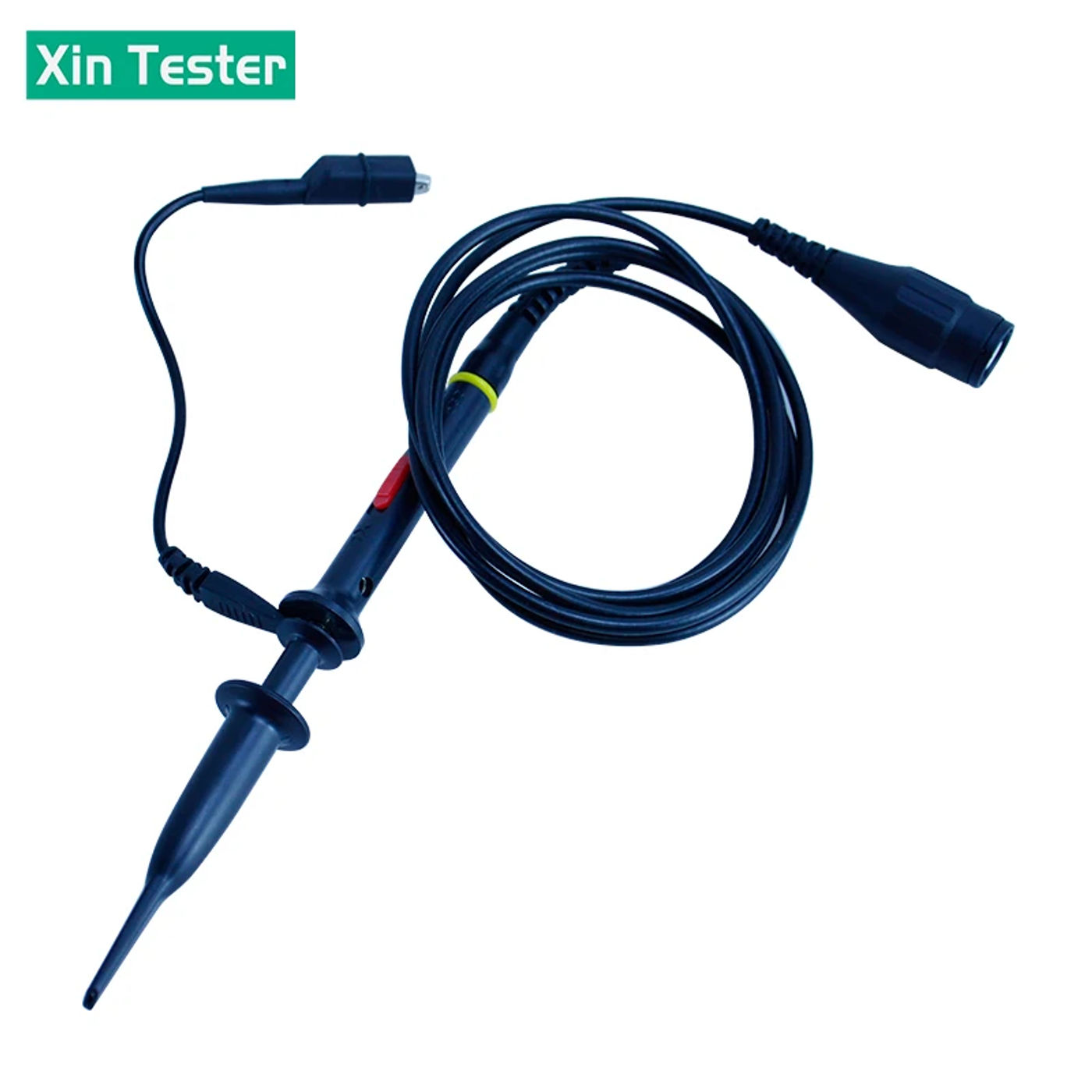

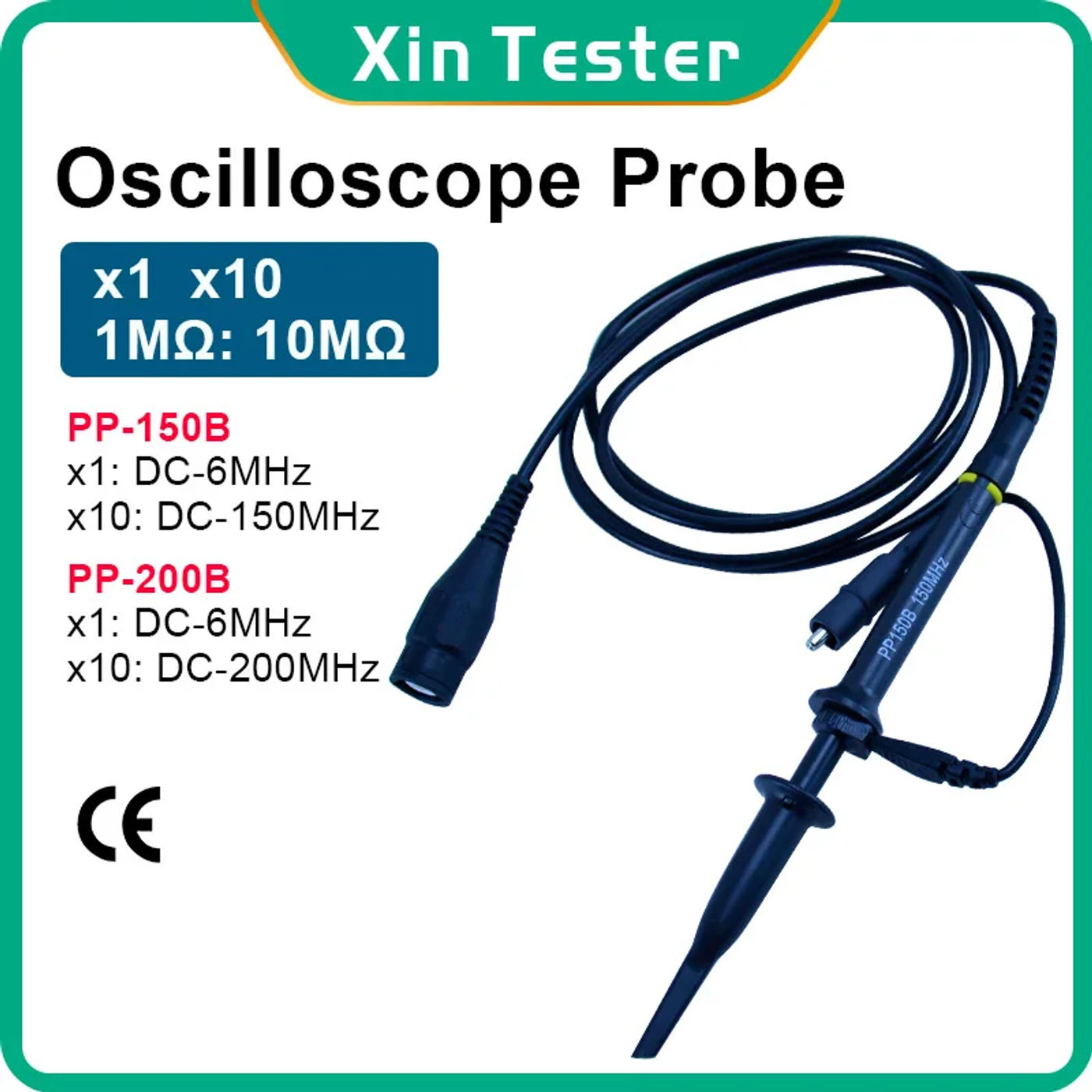

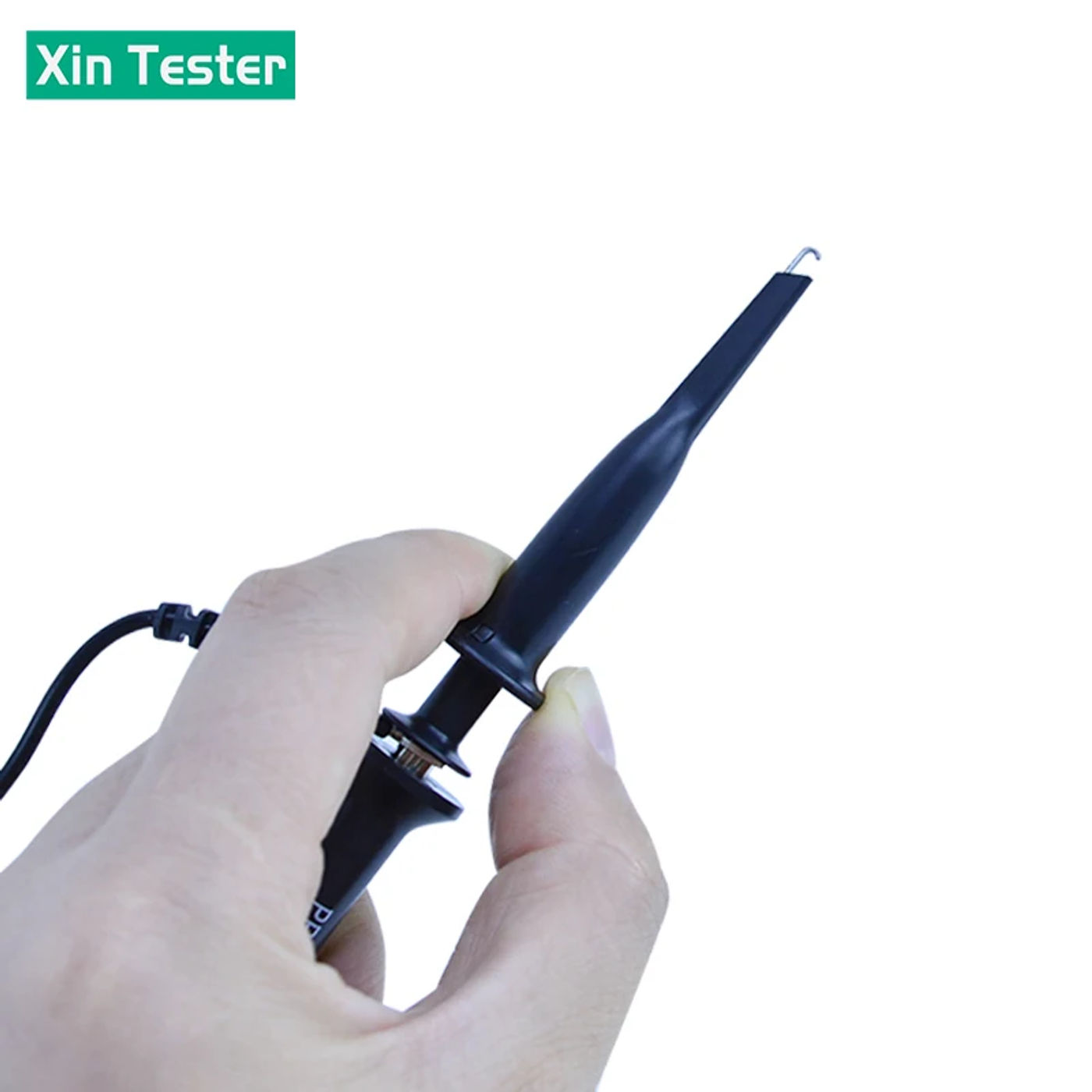

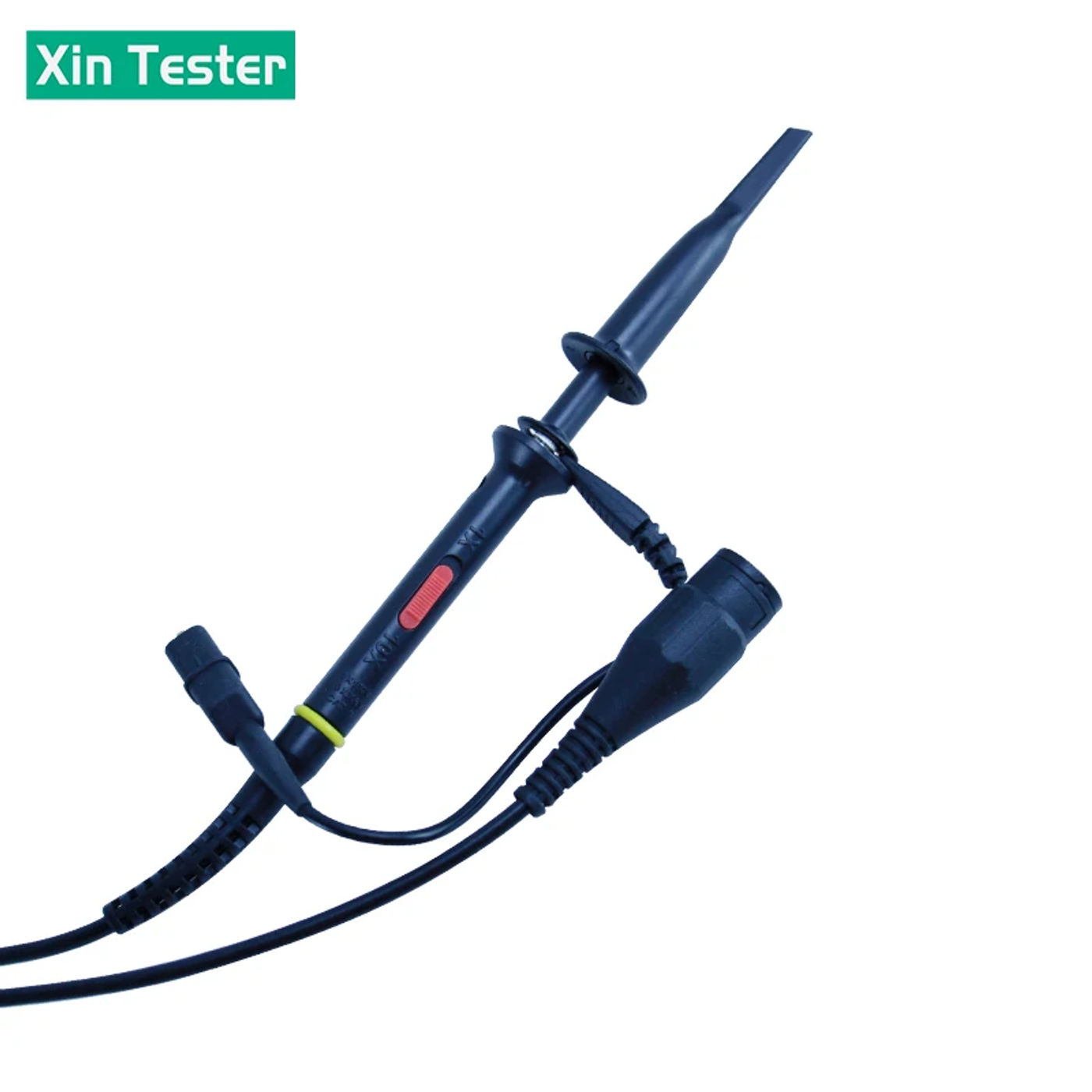

• Xin Tester Digital Oscilloscope Probe 150/200MHz X1 X10 Osciloscopio Test Probes accessories PP-150B PP-200B Black colour Probe Characteristics Model PP80B PP150B PP200B PP300B Bandwidth 80MHz 150MHz 200MHz 300MHz Rise time four 2 1 1 Attenuation Ratio X1 & X10 Input Resistance 1MΩ/10MΩ ±2% Input Capacitance 1X:85pF-120pF/10X:18 Maximum enter 1X:200V&10X:600VWorking Voltage Compensation Range 10pF-35pF 8pF-330pF Operation Environment 0~50℃,0-80%RH Storage Environment `-20℃~60℃,0-90%RH Size 130±2cm Weight About 52 Accessory Kit Item Description Quantity 1 Retractable Hook Tip 1 2 Adjustment Tool 1 three Locating Sleeve 2 4 Marker Rings eight 5 Ground Lead 1 6 Ground Spring(Above 100MHz) 1

•
•
•
•
•
