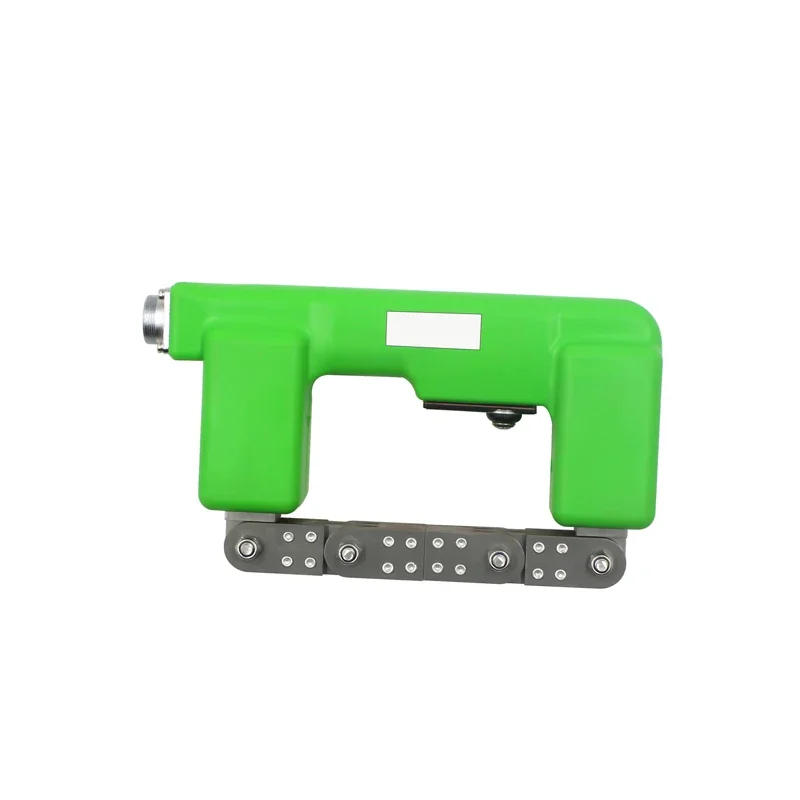

• Yoke magnetic particle trying out package Y-1/Y-8 Product Description Instrument evaluation With the characteristics of compact structure, realistic layout, compact size, mild weight and easy to carry, the sort of detector can be immediately plugged into AC, in addition be equipped with AC magnetized power delivery (AC battery pack) and DC magnetized energy supply (DC battery pack), which is of excessive efficiency and compactness Besides, it is relevant for inspection of hull welds, high-altitude metallic structure welds and inner operation of stress vessels Moreover, it's compatible for magnetic powder inspection of surface and close to surface defects for various metal structures, boilers, stress vessels, strain pipes and welding buildings in electric power, metallurgy, petrochemical, equipment and other industries Product Characteristics Three power supply modes could be selected freely: *Be straight linked to AC power supply for position with direct insert AC strength supply; *For place without direct insert AC energy supply, AC magnetized strength supply (AC battery pack) can be utilized to realize AC magnetization inspection operate *DC magnetized energy supply (DC battery pack) can also be selected to achieve operate of DC magnetization *AC magnetized energy delivery (AC battery pack) has the safety function of secure voltage output, over-charge, over-current, over-discharge *Automatic power off may be started when the lifting power is insufficient, with a purpose to make sure the detection sensitivity *Power reveal function, which may reveal recent battery capacity, as well as with sound-light alarm function *Built-in microcomputer chip, secure output voltage to ensure detection sensitivity *Adjustable magnetization depth *Special working pockets, which can bring battery pack, magnetic suspension, distinction agent, magnetic yoke probe, and many others Technical parameter *Working temperature: -10~+40℃ *Storage temperature: -20~50℃ *Relative humidity: No condensing<80% *Operation temperature rise: <18℃ *Duty cycle: >50% *Sensitivity: sort A1 usual specimen 15/50 grooves are clearly displayed *Minimum AC boost: >4(44N), maximum AC boost: 7kg (68) *Minimum DC boost: >18(177N), maximum DC boost: 23kg (225N) Parameter Netic yoke flaw detector Y-1 Y-2 Y-2L Y-8 Electrode spacing 0~210mm 0~210mm 0~210mm 0~210mm Maximum recent 2 2 2 2 Weight 2 2 2 2 Main operate ● AC magnetization (direct insert energy supply) ● AC magnetization (direct insert power supply); ● DC magnetization (with MT-500 DC magnetization energy supply) ● AC magnetization (direct insert power supply) ● AC magnetization (with MT-600 or MT-610 AC magnetization energy supply) ●AC magnetization (direct insert power) ●AC magnetization (with MT-600 or MT-610 AC magnetization power delivery optional,non-standard) ● DC magnetization (with MT-500 DC magnetization energy delivery via default)

•
•
•
•
