Description

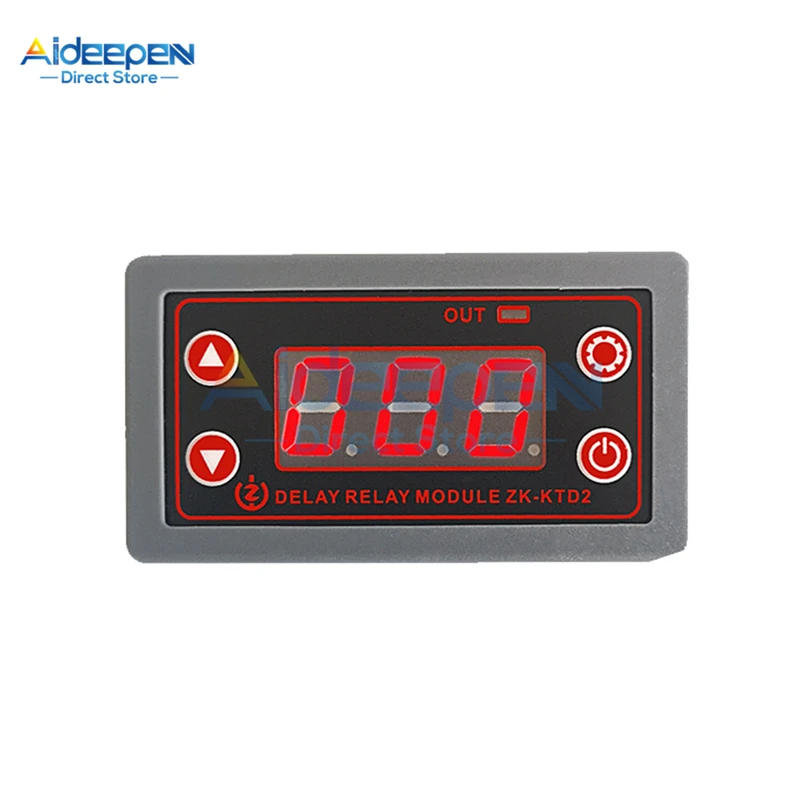

• Product Highlights 1 Wide voltage operation (5~30V), maximum kit can be used, very convenient; 2 The interface is clear and simple, powerful, clean to understand, and nearly meets all of your needs; three There is a key emergency give up function (STOP key), with reverse connection protection, opposite connection does not burn; 4 Sleep mode, after enabling, without any operation inside 3 minutes, routinely turn off the display; any key to wake up; 5 Different OP, CL, LOP, CLL, CLH parameters can be set, those parameters are mutually Independent and stored separately; 6 Added serial port communique operate to facilitate reading and surroundings parameters 7 All set parameters are robotically kept after power-off Product parameter 1: Working voltage: DC 5V-30V helps micro USB five strength supply; 2: Trigger sign source: ①High level trigger (DC 3) ②Switch set off ③Serial communication set off 3: Output capability: can management kit inside DC 30V 5A or AC 220V 5A 4: Quiescent current: 20mA Working current: 50mA 5: Service life: greater than 100,000 times; working temperature: -40~85C; size: 79*43*27mm6: with optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters for all time after energy failureFar reminiscence Special attention: The relay output is a passive contact, a non-charged output, which controls the on-off operation of a line use

•
•
•
•
•
