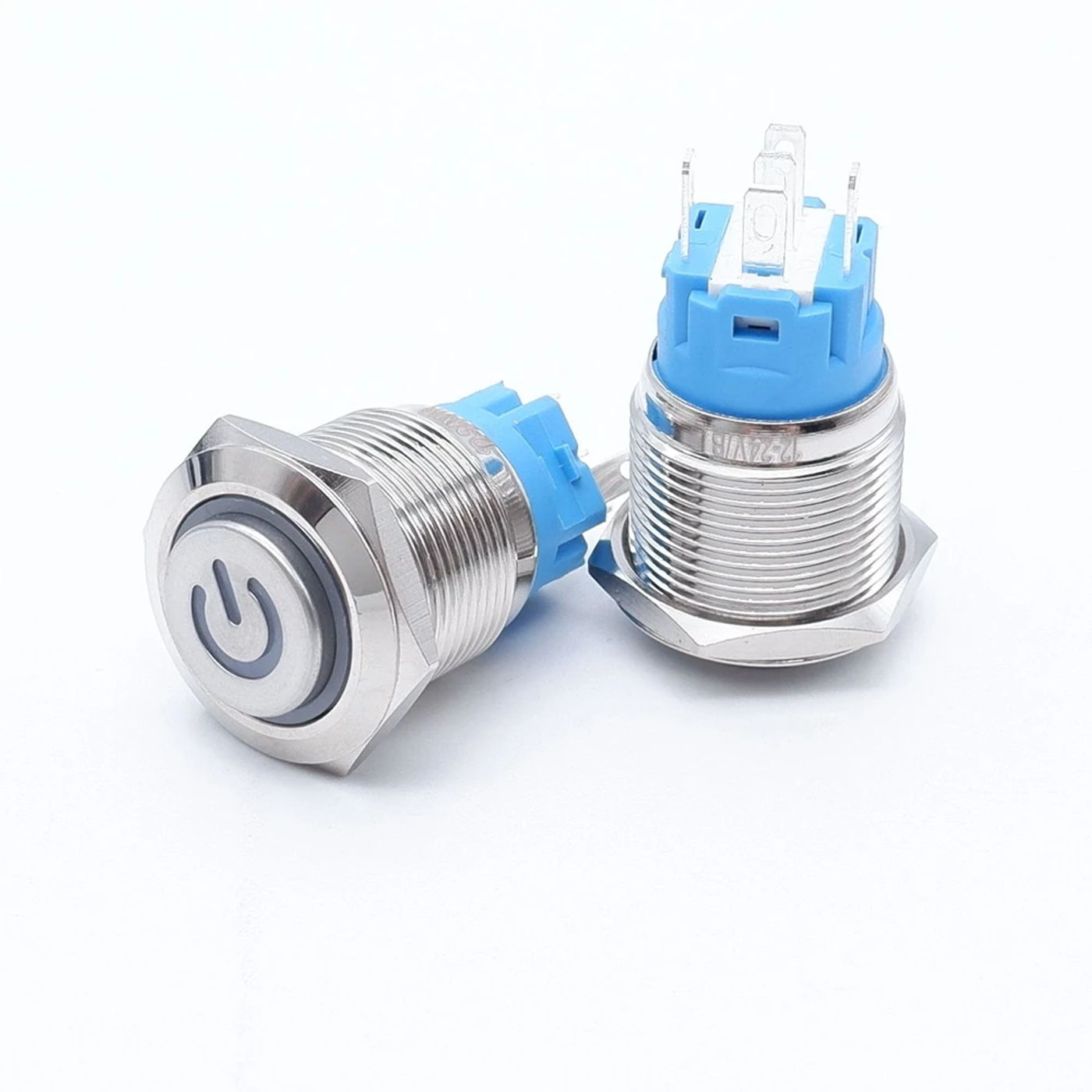

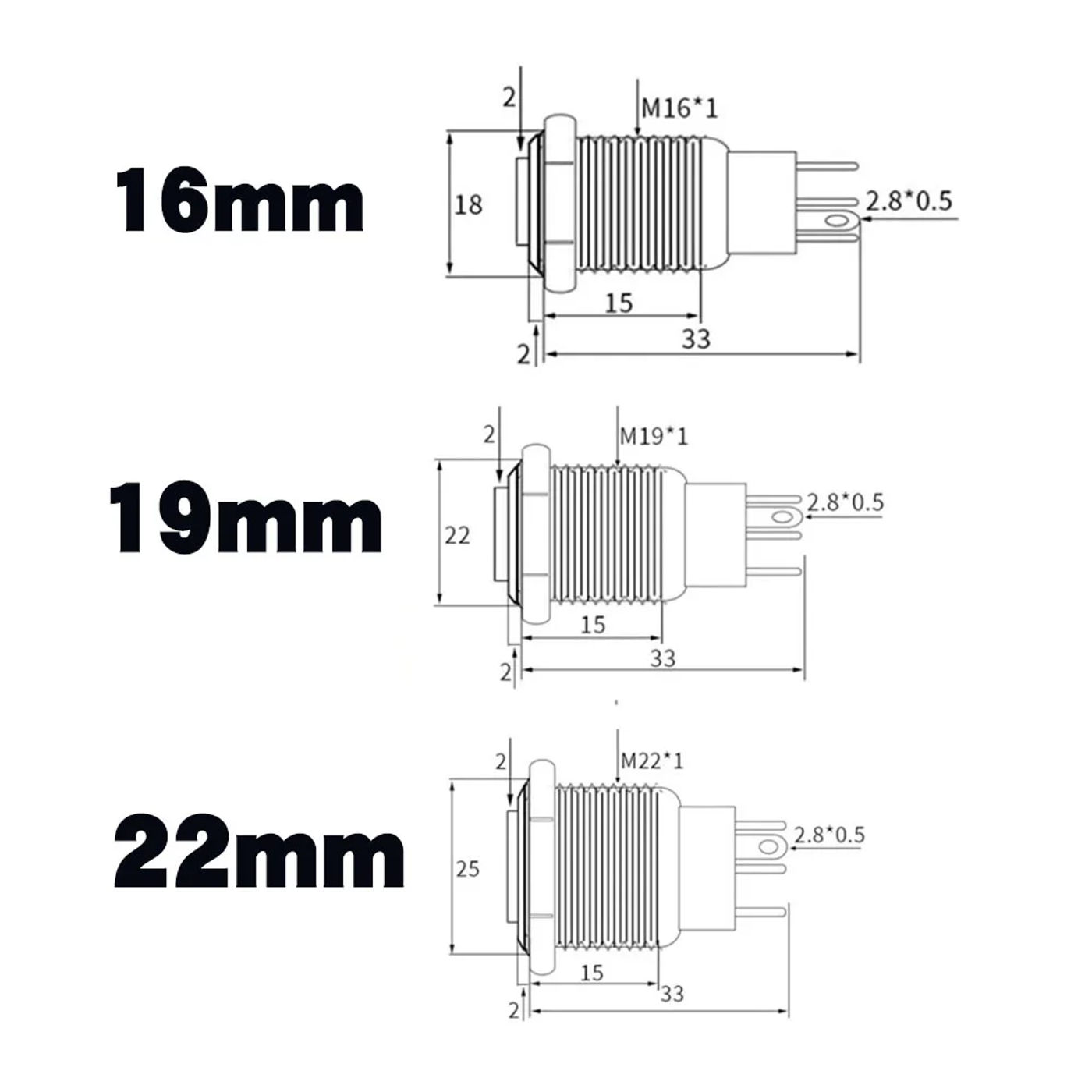

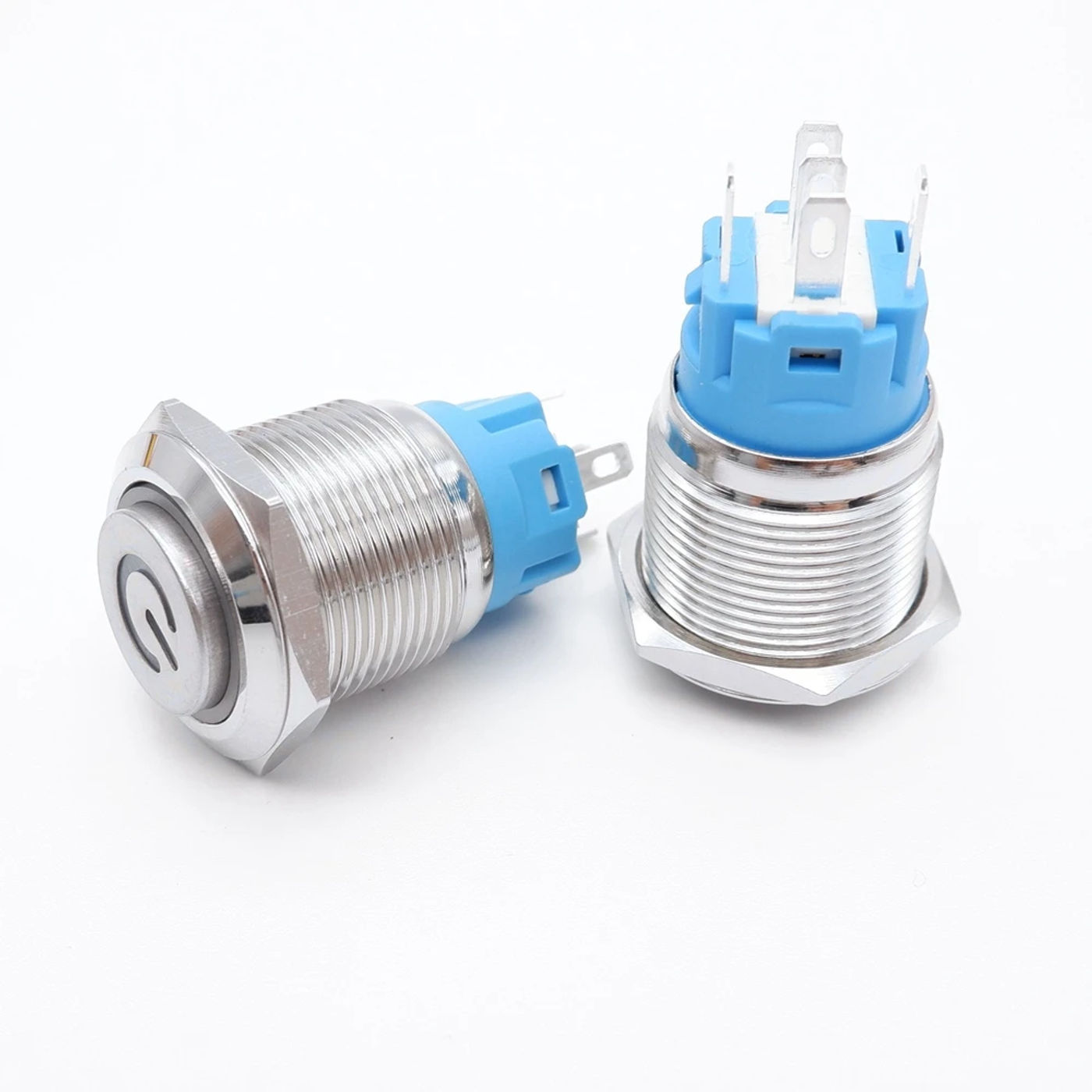

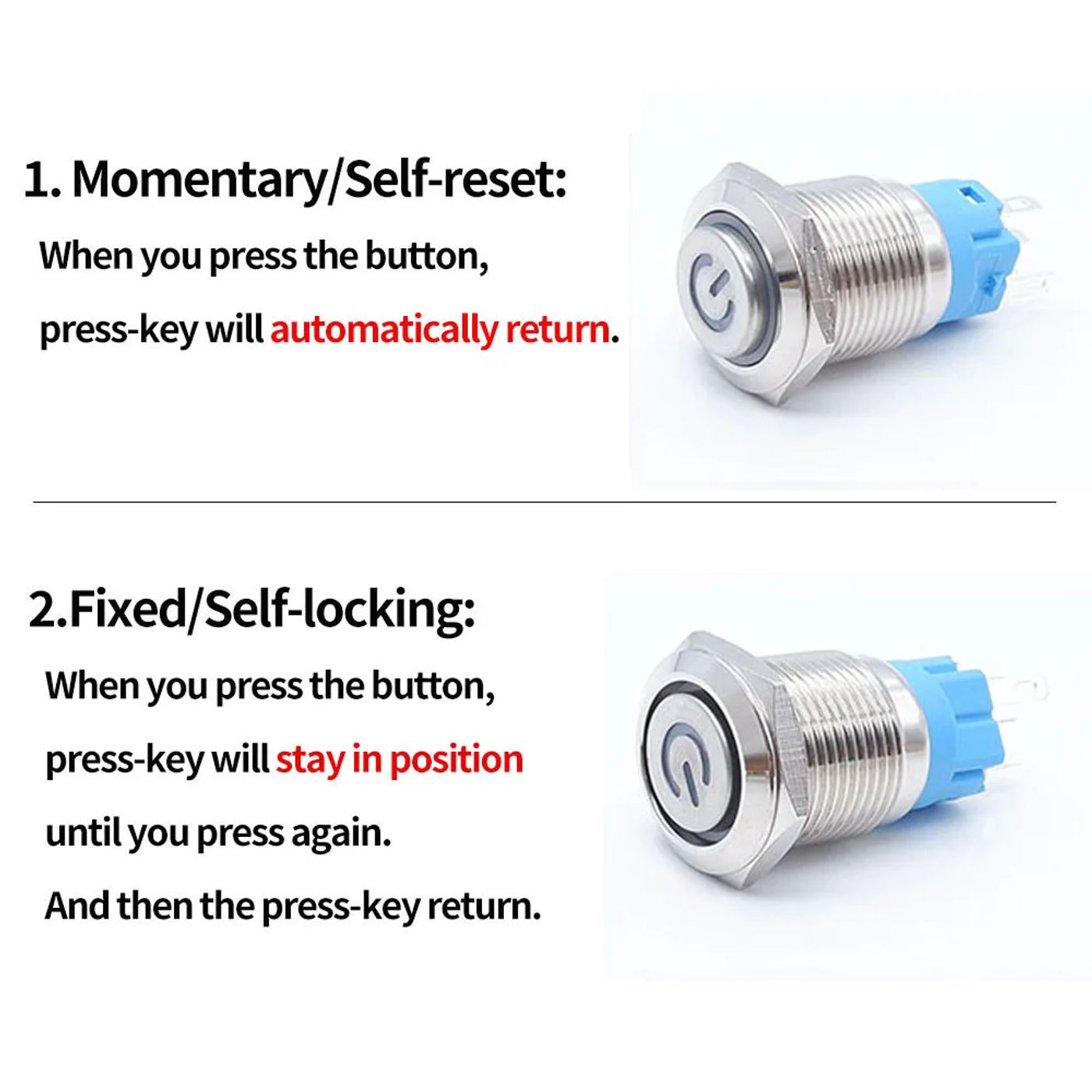

• Product Describe Switch type:Push button change Hole diameter:16mm/19mm/22mm Led color:Red/Yellow/Green/Blue/White Shell color:Silver Operation method:Momentary /Latching Led Voltage:3-6V/12-24V/110-220V Maximum current:3A Waterproof level:IP65 Contact type:1NO1NC Switch Tips 1/Self-reset: When you press the button, press-key will routinely return(Like a car horn switch it-power on, release it-power off) 2/Self-locking: When you press the button, press-key will reside in function till you press back then the press-key return(Like a lightweight switch it-power on, press it again-power off) Due to guide measurement, please allow a little bit error Non-polarity LED lamp makes wiring extra convenient High brightness and long provider lifestyles The metal shell can resist corrosion, pressure and put on With rubber sealing ring, waterproof and dustproof Wiring Instructions 1 does the sign “C”、"NC" and "NO" means? " NC ": Normal Close " NO ": Normal Open " C " : Common 2 to connect? (1) " NO " and " C " : The circuit is alway open unless press the button (2) " NC " and " C " : The circuit is alway close until press the button 3 lighting and switches have electrodes? The lamp and turn don't have any electrode, no need to divide the fine and destructive poles when wiring Wiring Diagram 1、The button turns the LED mild on and off，the circuit is alway open except press the button 2、LED lighting fixtures are continually on，the circuit is alway open unless press the button 3、 The button turns the LED mild on and off，the circuit is alway close except press the button 4、LED lighting are constantly on，the circuit is alway shut until press the button certificate authentication

•
•
•
•
•
