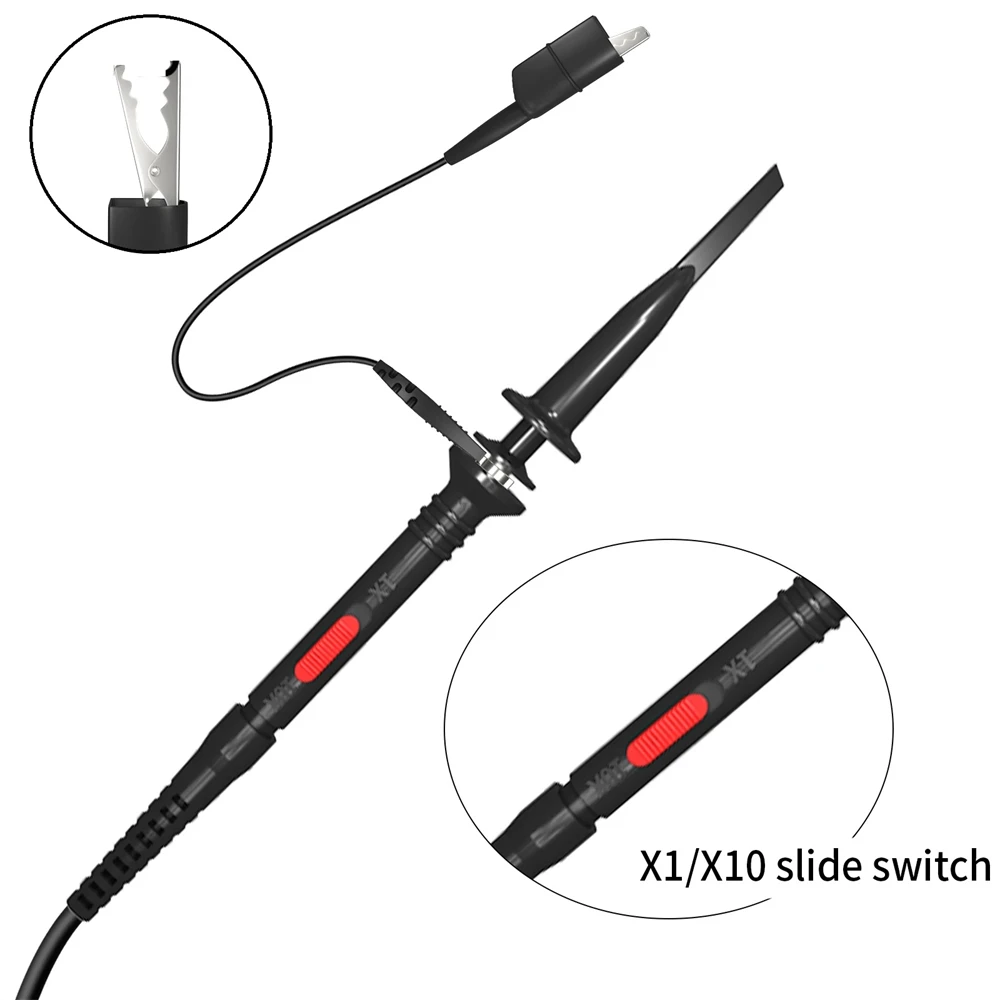

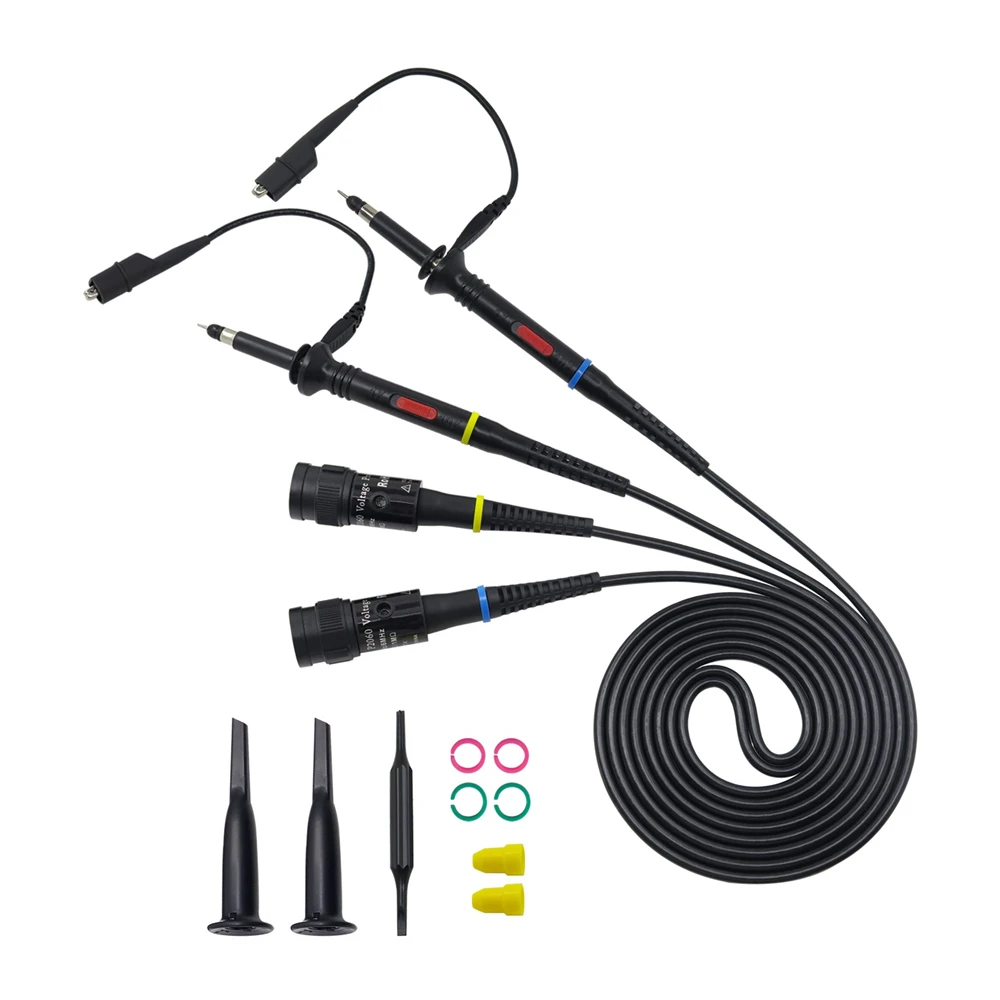

• Features and specifications: Model: P2060 Bandwidth: DC-60MHz Rise time: 5 Attenuation ratio: 1X/10X Input resistance: 1MΩ/10MΩ±2% Input capacitance: 1X:70pF-120pF, 10X:14pF-18pF Maximum input: 1X-200 working voltage (Vp-p), 10X-600 operating voltage (Vp-p) Compensation range: 14 - 45pF Operation environment: 0-50℃ ,0-80%RH Storage environment: -20-60℃ ,0-90%RH Size:110 ± 2cm Weight: About 130g/set Package includes: • 2 x Probes • eight x Marker rings • 2 x Ground leads • 2 x Locating sleeves • 1 x Adjustment tool • 1 x User manual -------------------------------------------------------------------------------------------- Model: P2100 Bandwidth: DC-100MHz Rise time: 3 Attenuation ratio: 1X/10X Input resistance: 1MΩ/10MΩ±2% Input capacitance: 1X:70pF-120pF, 10X:14pF-18pF Maximum input: 1X-200 working voltage (Vp-p), 10X-600 operating voltage (Vp-p) Compensation range: 14 - forty five pF Operation environment: 0-50℃ ,0-80%RH Storage environment: -20-60℃ ,0-90%RH Size: a hundred and ten ± 2cm Weight: About 130g/Set Package includes: • 2 x Probes • eight x Marker rings • 2 x Ground leads • 2 x Locating sleeves • 1 x Adjustment tool • 1 x User manual -------------------------------------------------------------------------------------------- Model: P2200-1pc Bandwidth: DC-200MHz Rise time: 1 Attenuation ratio: 1X/10X Input resistance: 1MΩ/10MΩ±2% Input capacitance: 1X:70pF-120pF, 10X:13pF-17pF Maximum input: 1X-200 operating voltage (Vp-p), 10X-600 working voltage (Vp-p) Compensation range: 10-35 pF Operation environment: 0-50℃ ,0-80%RH Storage environment: -20-60℃ ,0-90%RH Size: one hundred ten ± 2cm Weight: About 80g/Set Package includes: • 1 x Probe • eight x Marker rings • 1 x Ground Lead • 2 x Locating sleeves • 1 x Adjustment Tool • 1 x Ground Spring (Only P2200) • 1 x User handbook • 1 x Oscilloscope link adapter (Only P2200) Model: P2200-2pcs Bandwidth: DC-200MHz Rise time: 1 Attenuation ratio: 1X/10X Input resistance: 1MΩ/10MΩ±2% Input capacitance: 1X:70pF-120pF, 10X:13pF-17pF Maximum input: 1X-200 working voltage (Vp-p), 10X-600 operating voltage (Vp-p) Compensation range: 10-35 pF Operation environment: 0-50℃ ,0-80%RH Storage environment: -20-60℃ ,0-90%RH Size: one hundred ten ± 2cm Weight: About 150g/Set Package includes: • 2 x Probes • sixteen x Marker rings • 2 x Ground Leads • four x Locating sleeves • 2 x Adjustment Tools • 2 x Ground Springs (Only P2200) • 2 x User manuals • 2 x Oscilloscope link adapters (Only P2200)

•
•
•
•
•
