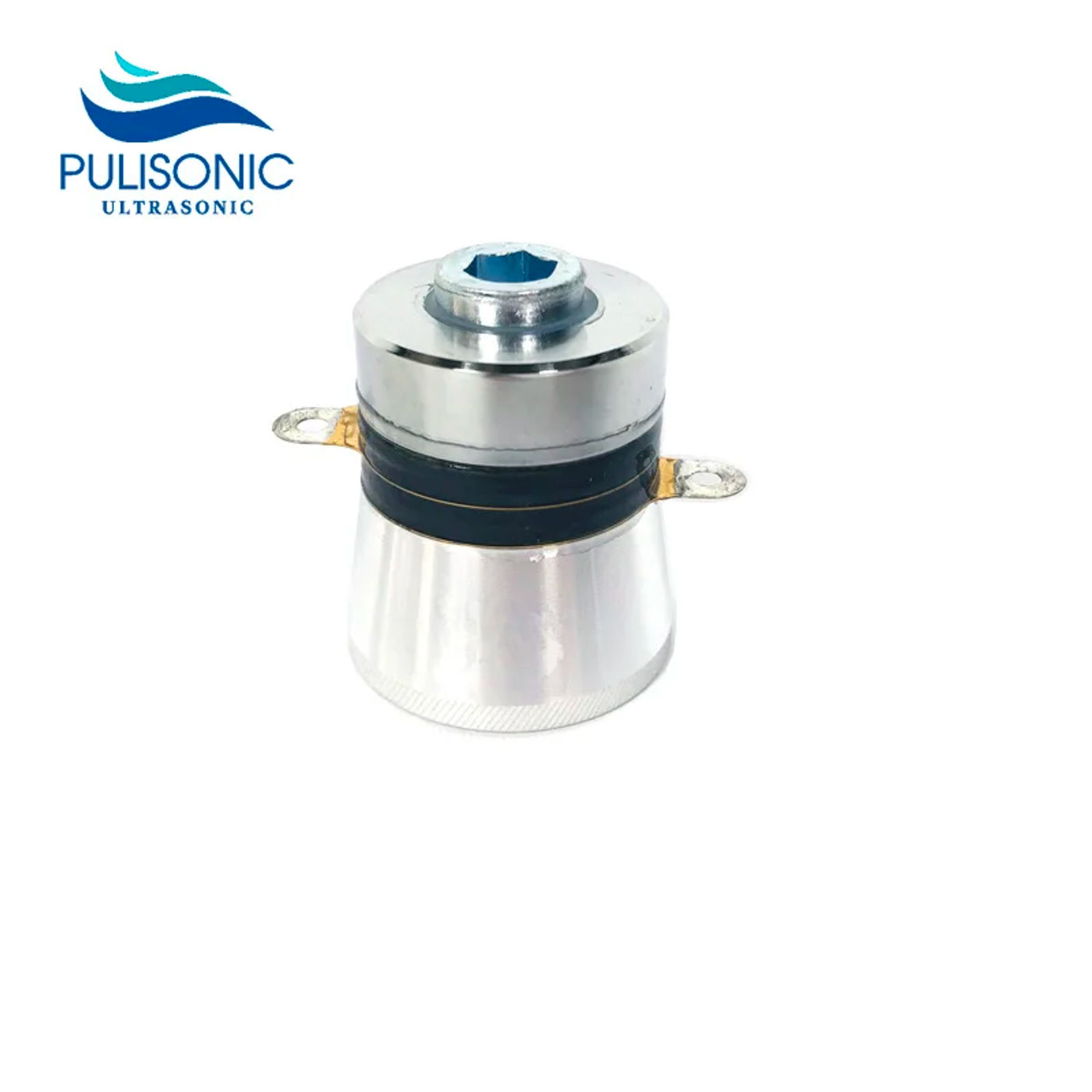

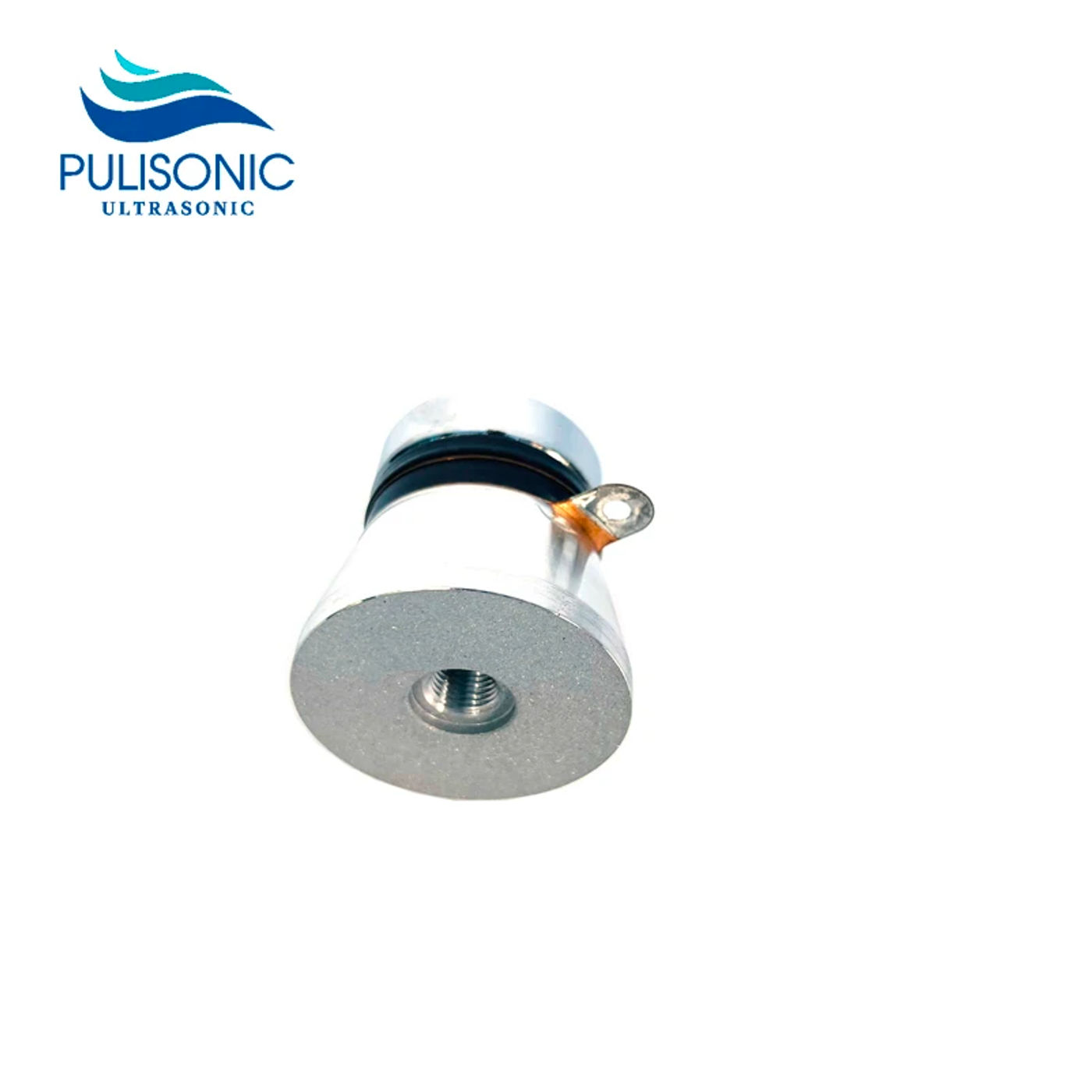

• Ultrasound Cleaning Machine Emitter 40khz 50W Ultrasonic Cleaner Transducer Piezoelectric Ceramic Sensor Introduction to ultrasonic transducer:Ultrasonic vibrator, also referred to as ultrasonic vibrator, is a type of ultrasonic transducer and the core factor of ultrasonic cleansing machine. Industry ordinary name: ultrasonic transducer, which belongs to piezoelectric ceramic supplies and one of the main equipment of ultrasonic cleansing machine. In phrases of power, a unmarried ultrasonic vibrator is 60W and 100W. Frequency: 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 54khz, 68KHz, 80kHz, 100kHz, 120kHz, 135KHz or higher; There are variations in shape: instantly column, horn, etc. Features of ultrasonic transducer: 1. High performance: immoderate mechanical Q value, excessive conversion performance and nice quality; 2. Ultrasonic vibrator transducer has wide amplitude and advanced performance; 3. Heat resistance of ultrasonic vibrator transducer: Piezoelectric ceramic material has nice warmth resistance, can expand the temperature differ of use, at the same time, the Q cost is high, the resonance impedance is small, and the warmth period is small; 4. The look of the ultrasonic vibrator transducer is clean, freed from rust, no obvious dents and scratches. The mechanism of ultrasonic cleaning transducer is to make use of the physical effects equivalent to cavitation, radiation strain and sound flow in the cleaning liquid. It can exfoliate the equipment produced throughout the filth on the cleaning parts, and might also sell the chemical response between the cleaning liquid and the dirt, with a objective to realize the point of cleansing the object. The frequency of the ultrasonic cleansing machine would be chosen through 10~500 kHz in line with the size and goal of the cleansing material, commonly greater than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleansing has turn into more and extra widely utilized in diversified industries, agriculture, relations equipment, electronics, automobile, rubber, printing, aircraft, food, health facility and scientific research.. Keywords of ultrasonic transducer:ultrasonic cleansing transducer,ultrasonic washing transducer,ultrasonic cleaner transducer,piezoelectric ultrasonic transducer,low frequency ultrasonic transducer,ultrasonic piezo transducer,ultrasonic tub transducer,piezo ultrasonic transducer,dual frequency ultrasonic transducer,multi frequency ultrasonic transducer,ultrasonic sensor,ultrasonic vibrator,ultrasonic oscillator,ultrasonic converter,ultrasonic translator,ultrasonic adopter TypeLength(mm)Weight(g)Frequency(KHz)Resonance Impedance (Ω)Static Capacity (pF)±10%Input Power(W)PLS-QXHNQ20100 949002010-205200100PLS-QXHNQ25100 777102510-206600100PLS-QXHNQ28100 666242810-206600100PLS-QXHNQ2560 775302510-20540060PLS-QXHNQ2860 684702810-20380060PLS-QXHNQ2850 824252810-20410050PLS-QXHNQ3360 584203310-20380060PLS-QXHNQ4060 563104010-20540060PLS-QXHNQ4050 573004010-20410050PLS-QXHNQ5435 361355410-20320035PLS-QXHNQ6860 804606810-20380060PLS-QXHNQ68120 675886810-207800120PLS-QXHNQ8060 603258010-20540060PLS-QXHNQ12060 5626012010-20540060PLS-QXHNQ13550 5421513510-20420050

•
•
