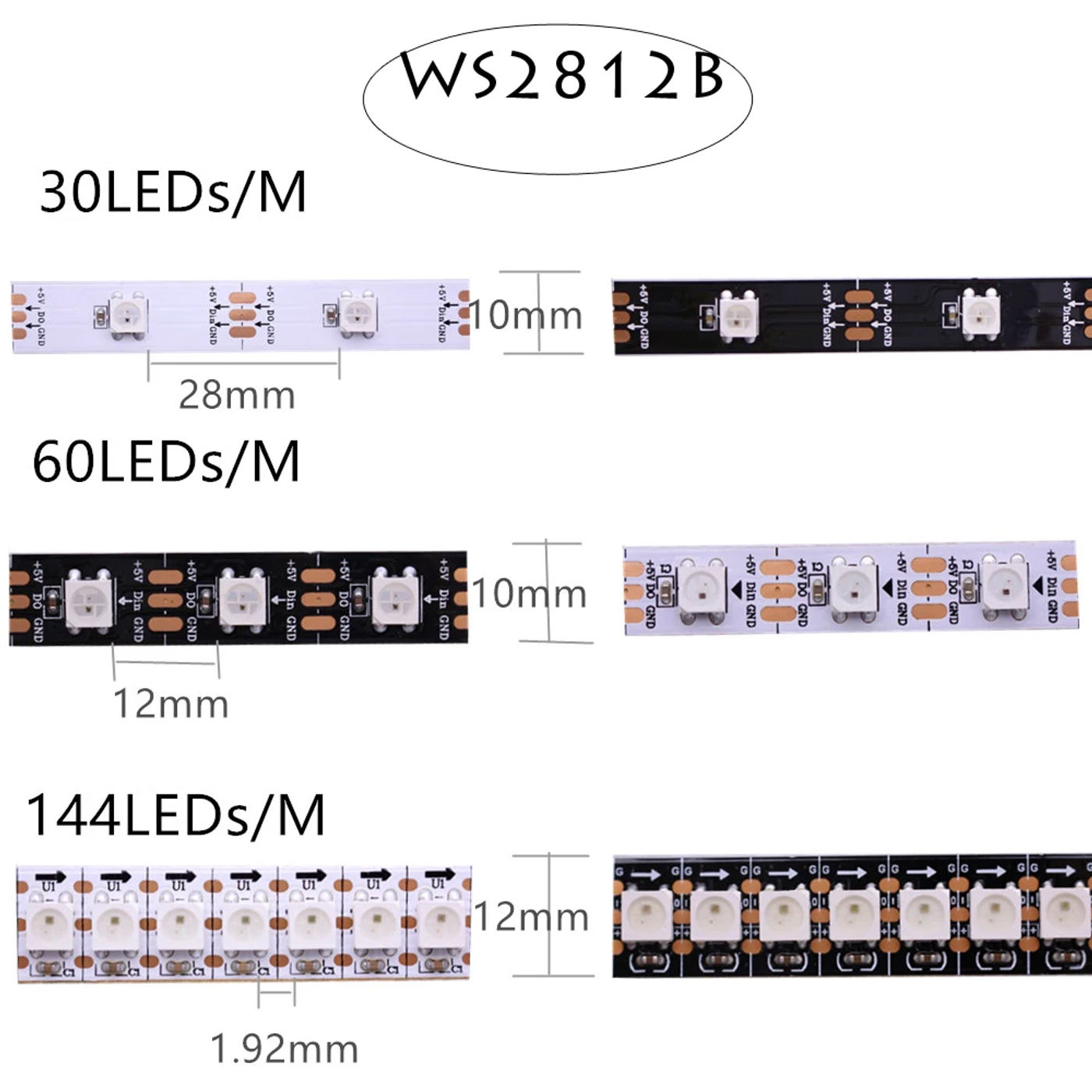

• Pay attention:ws2812b：one pixel broken will influence the other LEDs operating ws2813：one pixel damaged will not impact the opposite LEDs working (1) IP30 --- No waterproof, for indoor use (2) IP65 --- Silicone coating, gentle cut, outdoors use (3) IP67 --- Silicone tube, needs to be reseal after cut, exterior use The charge is just Led Strip, Not Include Power Supply or Led Controller!WS2812B LED Strip:1 voltage: DC5V 2: 9watt / meter (30leds / m) 18watt / meter (60leds / m) forty three / meter (144leds / m) 3. LED source: WS2812B led (5050 SMD RGB LED with incorporated upgraded edition of ws2811 ic) 4. LED: every single LED is separately controlled 5. IC Type: upgraded edition ws2812 IC (built in the 5050 smd rgb led) 6 IC: (1 IC drives 1 led chip) 7. Pixels: 30/60/144 / meter 8. Pitch: 16 (1000/64) Gray scale: 256 10 / Color: 8bit / Color eleven size: Width: 10mm, High: 2 12 color: BLACK / White Protection rate: IP30 / IP67 Colors: Full shade RGB, dream coloration changing 15: Each LED is cuttable 16: in anti-static bagWS2813 LED Strip:Input voltage: DC 5V Power: 30 Leds / M --- nine Watt / Meter / 60 Leds / M --- 18 Watt / Meter LED Source: WS2813 led (5050 SMD RGB LED with incorporated upgraded edition of ws2811 ic) LED: Each LED is individually managed IC Type: Upgraded edition ws2813 IC (built within the 5050 smd rgb led) From IC: (1 IC drives 1 led chip) Pixels: 30Leds / 60Leds / 144Leds Pitch: 16 (1000/64) Gray Scale: 256 Colors: Full color RGB, dream coloration changing Bits / Color: 8-Bits / Color FPC Color: BLACK / White FPC Width: 30 Leds / M --- 10 MM / 60 Leds / M --- 10 MM Protection Rate: IP30 Non-waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube Cuttable: Each LED is cuttable Package: In anti-static bag, IP30 IP65 with 3M adhensive tape at the again (IP67 without 3M adhensive), every single strip with a free male connector for connector Working temperature: -40 - 70 ° C Storage Temperature: -50 - 80 ° C Source Lifespan: 50,000 hours Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: Standby date line, Black: GND) Recommand controllers: T-1000s, T-8000A; T-100K; T-200K; T-300K

•
•
•
•
•
