Descriptions

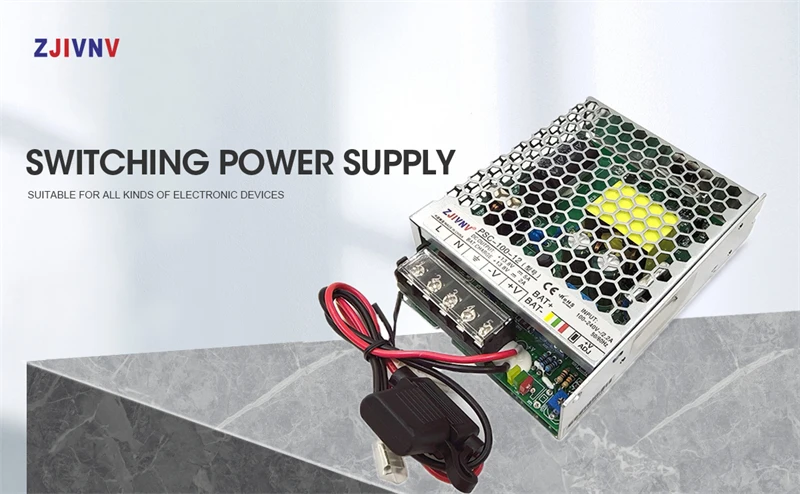

• 100W UPS Uninterruptible power supply smps Switching Power Supply AC to DC 13 27 2A/1A for Charge PSC-100-12 PSC-100-24 To make sure the life of the flexibility supply, pls don&;t use complete load once you use it We recommend the use energy should be 80% of the rated strength example: the label of the flexibility delivery is 500W, use strength must be : 500W*80%=400W Feature 1 International normal AC enter voltage differ is switched through switching 2 Small size, mild weight, high efficiency, top only 30mm 3 Protection characteristics: brief circuit / overload four Battery low voltage protection five With power on / charging / mains reveal (light-emitting diode) 6% full load burn-in examine 7 Power start LED indicator 8 AC to battery energy supply, no switching time 9 Battery charging terminal with a fuse, battery opposite connection won't injury the switching power supply CN1 External Indicator Description GREEN:DC output RED:AC input YELLOW:Battery charging

•
•
•
•
•
