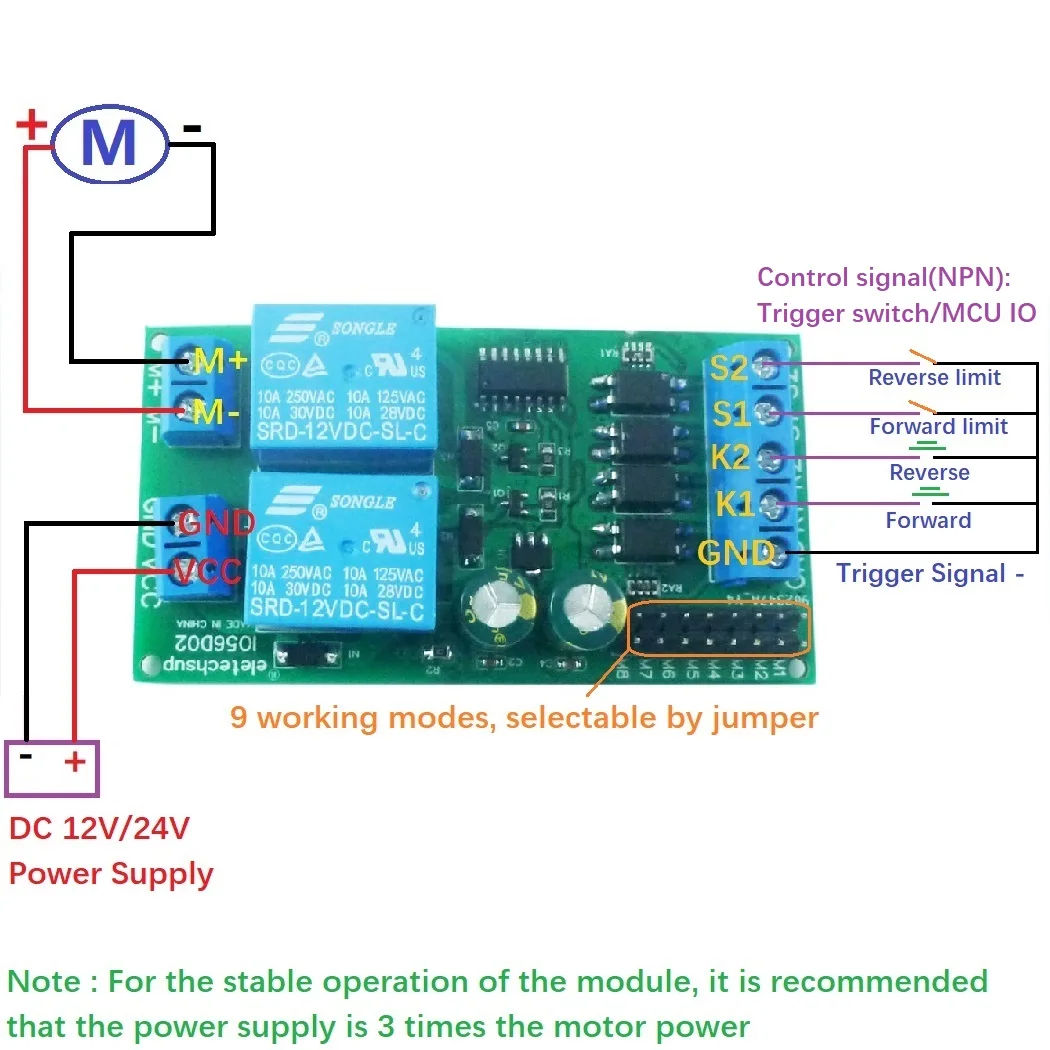

• 30A relay version, please click here: click right here Product Name: 12V 24V DC Motor Controller Relay Board Forward Reverse Control Limit Start Stop Switch Pusher Electric Curtain Automatic Door Wiring Reference Diagram: General wiring: Wiring Diagram 1: Two role (switch) reciprocating (moving backward and forward in a immediately line) Wiring Diagram 2: Positive and unfavorable beginning independently, whenever working a unmarried pass Wiring Diagram 3: Every time you start, run a forward and reverse rotation Product Included: 1pcs DC motor ahead and reverse controller Product parameters: 1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC energy supply strength ≥ motor load x3); 2 Applicable motor: brushed DC motor; three Maximum load current: 4; 4 Signal input: energetic low (NPN); five Working modes: nine elective modes, adding momentary, self-locking, etc; 6 Working recent (excluding motor): Quiescent Current: 4MA, Forward or Reverse working current: 40MA 7 Size: 75*40*19mm; 8 Weight: 37 grams Pin Description VCC : Power Supply + GND : Power Supply - M+ : Motor + M- : Motor - GND : Trigger Signal - K1 : Forward enter control K2 : Reverse enter control S1 : Forward restrict signal S2 : Reverse restrict sign This module has 4 signal input terminals, particularly &;&;K1&;&;, &;&;K2&;&;, &;&;S1&;&;, &;&;S2&;&;, K1 is the ahead rotation signal enter terminal, K2 is the opposite rotation signal input terminal, and S2 is the ahead rotation limit sign Input terminal, S2 is the reverse limit sign enter terminal The sign input source can be selected from micro switch, induction, infrared, metal, remote control and different modules, and can even be managed through a single-chip microcomputer Working mode: Mode zero (default) : Self-locking mode, the signal solely ought to be caused once, and the module self-locking keeps operating - When encountering a reverse sign during ahead rotation, immediately quit for 0 seconds after which enter opposite rotation; - The restrict sign has priority, and the forward limit sign might be stopped immediately when the forward rotation is encountered; - The ahead rotation cannot be started when there is a ahead rotation limit signal, and an identical is right for reverse rotation; - The forward rotation signal and the reverse rotation signal are valid when the low level, that is, a non permanent 0V point (negative strength supply), will start; - The restrict sign is normally open; (For example, when the SW1 swap is closed or related to a low level, the forward rotation can't be started) -Only one limit sign is legitimate at a time, for example: inputting two restrict signals on the identical time throughout opposite rotation can't stop the motor rotation Mode 1 : The automatic birth version of mode zero adds the power-on automated birth function at the basis of mode 0, that is, each time the module is powered on, it'll mechanically start ahead rotation This version is more suitable as a movement module between two points, and it will paintings routinely when the module is powered on Mode 2: Momentary mode When there's a forward rotation signal, the motor rotates forward; when there's a opposite rotation signal, the motor reverses; when there isn't any forward rotation sign and no opposite rotation signal, the motor stops; when forward rotation, if there's a forward rotation limit, it will give up forward rotation; During rotation, if there's a reverse rotation restrict signal, the reverse rotation may be stopped Removing the two restrict alerts won't restore the rotation, and it's necessary to re-input the rotation sign to start the ahead and opposite rotation Mode 3: The level-driven mode, identical in operate to the H-bridge, operates in step with the ensuing logic: When there is a ahead rotation signal and there is not any signal at the forward limit, it'll rotate forward; when there's a reverse sign and there is not any signal at the reverse limit, it's going to reverse; this edition is pure good judgment type, appropriate for single-chip sign enter Pay consideration to the forward rotation priority, that is, forward rotation is when either the forward and opposite enter meet the conditions Pay attention to the real-time nature of the level For example, when there are alerts on the ahead and opposite input terminals at the similar time, it is forward rotation At this time, if the forward rotation signal is removed and the reverse sign is retained, it will reverse The restrict input is invalid when the motor is rotating, and the motor can't be stopped Mode 4: Start/Stop mode, the function is the same as mode 0, solely the ensuing operate particulars are different: If the ahead rotation has been started, input the forward rotation sign again, it'll quit immediately; if the reverse rotation has been started, enter the opposite rotation signal again, it'll give up straight For example: there's a ahead signal >>> forward rotation immediately; at this time, input the ahead rotation sign >>> immediately give up ahead rotation Reverse an analogous Mode 5: The function is the same as mode 0, only the limit sign difference is as follows: The limit signal is only legitimate for the present time (the innovative is valid) For example, after beginning the ahead rotation, it'll quit when the ahead limit signal is encountered After the stop, even though the forward restrict signal is still input, the ahead rotation can nonetheless be started by means of inputting the forward rotation sign at this time When the unidirectional birth and end points are at the same motion circle, this specification is always used, for example, press as soon as to make a circle, and press it back to make another circle Mode 6: One-key change mode, the operate is similar to mode 0, solely the beginning system is different, as follows: Forward rotation sign input, ahead rotation after triggering, opposite rotation after re-triggering, and reverse rotation signal enter is invalid Input the ahead rotation sign once to begin the forward rotation, and forestall the ahead rotation when the forward restrict has a signal; input the forward rotation signal again, birth the opposite rotation, and stop the reverse rotation after the opposite rotation limit has a signal Mode 7: Forward rotation when there's a forward rotation sign input, opposite rotation when there's no signal, and the opposite rotation signal input is invalid and cannot be enter together with other signals During ahead rotation, the ahead rotation will be stopped if there's a sign on the forward limit; throughout reverse rotation, the opposite rotation could be stopped if there's a signal on the opposite restrict Only one limit signal is legitimate at a time for example: inputting two limit indicators on the identical time throughout reverse rotation cannot quit the motor rotation Mode 8: Self-locking-limit normally closed mode, solely the variation of the location signal, different purposes are similar to mode 0 The restrict sign is normally closed (for example, when there is no signal enter to the ahead limit, the forward rotation can't be started, and solely when the forward limit sign is input, the ahead rotation would be started) Power Requirements: The DC motor governor enter should be DC energy The strength supply can be used yet no longer restricted to the ensuing types: switching energy supply, DC output transformer, lead-acid battery, lithium battery, solar battery and so on The energy connection wires are linked to the &;&;VIN&;&; and &;&;GND&;&; terminals respectively, and the positive and unfavourable poles of the ability delivery cannot be reversed The power supply voltage vary is DC 11-15V (12V version), and it will paintings normally between DC 22-26V (24V version); DC energy requires energy ≥ motor strength × three Motor Requirements: IO56D02 is a DC motor controller, and the utilized motor should be a brushed DC motor Connect the motor connecting wires to the terminals of &;&;Motor+&;&; and &;&;Motor-&;&; respectively Motor power requirements: the rated energy of 24V DC motor is lower than 100W, and the limit cost is 200W; the rated power of 12V DC motor is lower than 50W, and the limit value is 100W

•
•
•
•
•
