Descriptions

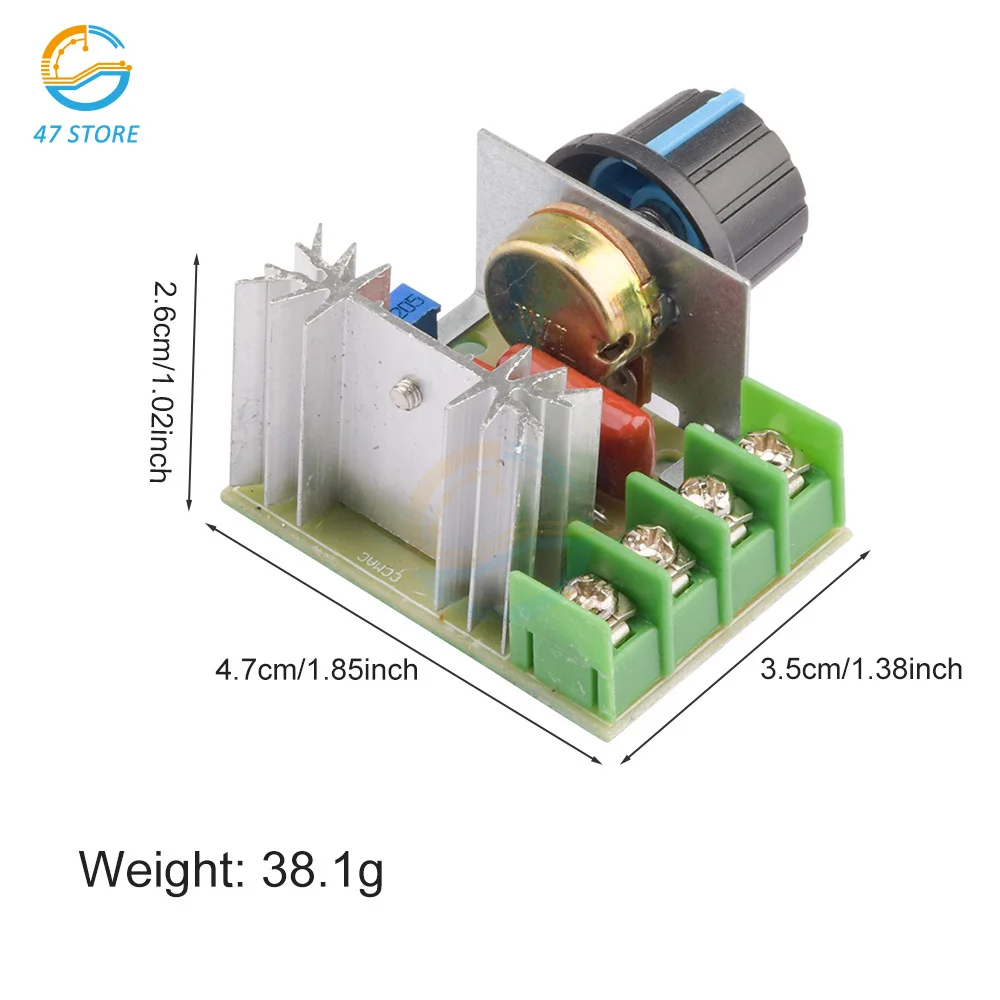

• AC 220V 2000W SCR Voltage Regulator Dimming Dimmers Motor Speed Controller Thermostat Electronic Voltage Regulator Module Features： Wide range of use stable performance Silicon-controlled voltage as much as 1200 volts / current 25A 1 thick epoxy copper clad laminate This voltage regulator has a height voltage absorption circuit to effectively preserve the high-power thyristor, and has an extended and more durable life Product parameters Use voltage: AC 220V High power: 2000W Voltage regulation: AC 50-220V Specification and size: hot temperature resistant FR-4 circuit board, circuit board 36MM*48MM or so Outer dimension: 48MM*60MM (knob direction)*28MM (height) Silicon-controlled voltage up to 1200 volts / current 25A 1 thick epoxy copper clad laminate This voltage regulator is provided with a peak voltage soaking up circuit to effectively preserve the high-power thyristor, and has a longer and tougher lifestyles Instructions: Connect this product in collection to the circuit of desk lamp or electrical appliances, (i disconnect anybody of reside wire or neutral wire of desk lamp, electrical appliances, etc, and fix the 2 wires of this "product") Rotate the potentiometer The rotary rod can play the role of sunshine and color adjustment, speed regulation, strain law and temperature regulation; it is very convenient to apply This product is suitable for: using a brand new sort of bidirectional high-power thyristor, because the recent can attain 25 amps, which solves the overcurrent problem caused by too small resistance of the electrical furnace wire when it is cooling; it can easily modify the mains energy The output voltage could be adjusted arbitrarily between 90----220 volts for use by electric home equipment Such as: electrical furnace, water heater heat adjustment, light adjustment of lamps, small motor speed adjustment, electrical soldering iron temperature adjustment, and so forth So as to realize the impact of dimming, temperature legislation and voltage law It can be used by huge electrical appliances with an influence intake of less than 2000 watts Because the flexibility is already very large, it is ample for general family appliances or small factories (The inductive or capacitive load power needs to be reduced This voltage regulator is provided with a bidirectional high-power thyristor, and the potentiometer is supplied with a nut It can be utilized without adding any components, which is terribly handy and practical) Shipping list： 1*module

•
•
•
•
•
