Descriptions

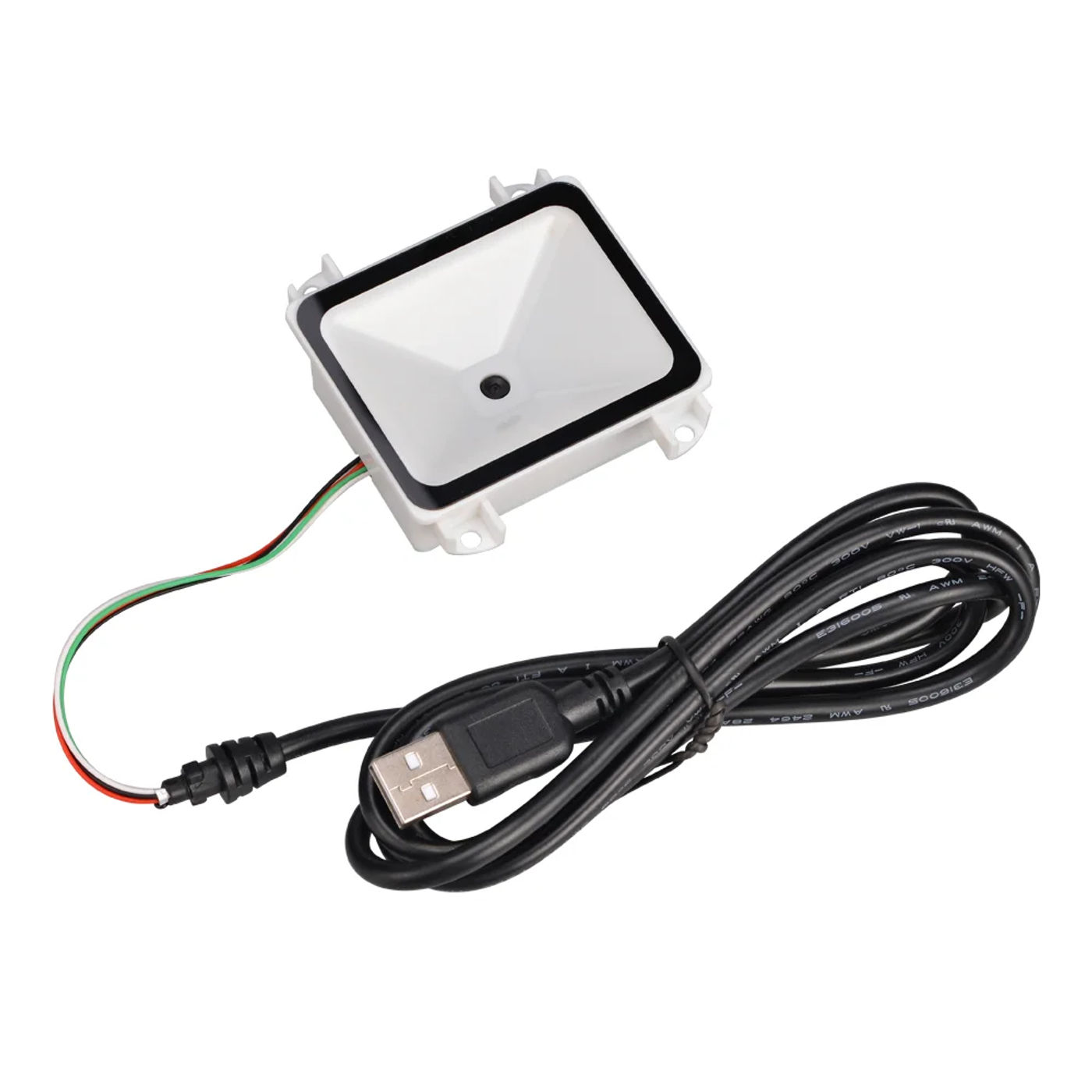

• Barcode Scanner Kiosk Small Fixed Mount Vending Machine Barcode Reader USB RS232 TTL Interface Features: * CMOS picture sensor * No driver, plug and play * Wide perspective lens design, scans a massive subject * Effectively scans barcodes in sensitive lighting fixtures conditions, including by way of glass/plastic, in brilliant sunlight, in darkish environments, or on curved/reflective surfaces * Super scanning and deciphering ability, can learn incomplete and fuzzy codes * Scanner reads 2D & 1D barcodes published on labels or displayed on machine monitors * Application fields: Electronic tickets/coupons, cellular advertising and office automation, kiosks,medical equipment,the sequence fixed mount barcode scanner is able to learn barcodes from paper and mobile phones * Can be customized in keeping with customer call for Interface: USB, TTL, RS232, three types for optionally available Purchase Guide:USB module&;s cable is hooked up with module, can not be plug out, the interface is USB-A,TTL module&;s cable is attached with module, can not be plug out, the interface is TTL,RS232 module&;s cable is connected with module, cannot be plug out, the interface is RS232 Decode Capability:1D: UPC/EAN,with complementaryUPC/EAN,Code128,Code39, Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1Databar,etc: PDF417, QRCode,Aztec,DataMatrix,Maxicode,MicroPDF417,etc Product Description TTL use Guide Product Specification YHD-M900D 2D Embedded Barcode Scanner Module Imaging Sensor CMOS Optical Source 620nm Visible pink mild diode Trigger Mode Continuous,Auto-Induction Indication Buzzer & LED Resolution Ratio 640*480 Interface RS232,USB,TTL Decoding Speed 500times/second Resolution 4mil Size 61*48*24mm Minimum Contrast ≥ 25% Decoding Capability 1D:UPC/EAN,with complementaryUPC/EAN,Code128,Code39, Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1Databar,etc 2D:PDF417QR Aztec DataMatrix Maxicode MicroPDF417,etc Depth of area 40-120mm Code 39(5MIL) 20-300mm EAN-13 (13MIL) 20-150mm PDF417(6) 15-250mm QR Code(20MIL) Scan Angle Roll 55°,Pitch± 25°,Skew±75° Working Voltage 5V Current Max : 212mA Working : 156mA~212mA Stand-by : 156mA StorageTemperature -40°C ~ 70°C/ -40°to 158°F WorkingTemperature -20°C ~ 60°C/ -4°to 140°F Relative Humidity zero ~ 95% Drop examine 1 fall to concrete Certificate CE,FCC,RoHS,IP54

•
•
•
•
•
