Descriptions

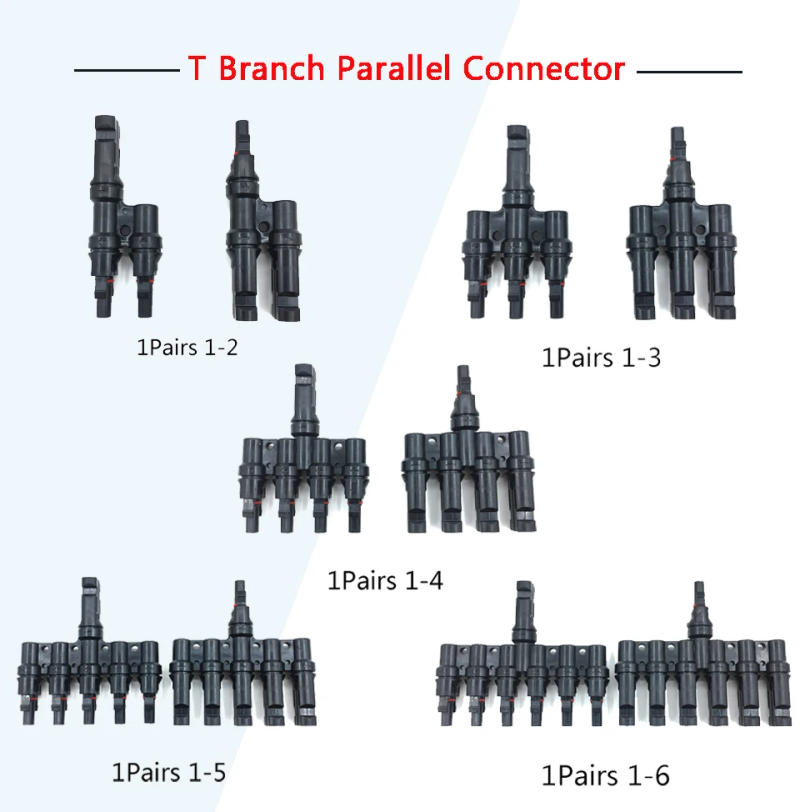

• 2T 3T 4T 5T 6T Branch Solar connectors Multi T Branch Connector for solar panel parallel connection T Type solar Solar T Branch Parallel connector Compatible Branch Conenctor Insulation materials PPO Rated Voltage TUV one thousand DC Rated Current 20A-40A Test voltage 6KV(50Hz,1Min) Contact materials copper, tin plated Contact resistance less than 0 m ohm Degree of protection IP67 Pin measurement four MM Compatible Solar cable 2/4 /6 mm⊃2; (14/12/10 AWG) PV 3T Branch Product No:PV-3T Rated Voltage 1000V DC / UL 600V DC Rating Current 20A-30A Suitable cable pass sections 2 / 14AWG-10AWG Pin dimension:4 Proof voltage:DC 8KV(1Min) Pollution degree: 2 Protection class: Class II Contact Material: Copper, tin-plated Contact Resistance: 5mW Connector Material: PPO Degree of Protection: IP IP67(IEC 60529) Insertion Force: 50N Temperature :-40-+85C Flame Class: UL94V - zero ------------------------------------------------------------------------------------- PV 4T Branch ------------------------------------------------------------------------------------- PV-5T Branch ------------------------------------------------------------------------------------- PV-6T Branch

•
•
•
•
•
