Descriptions

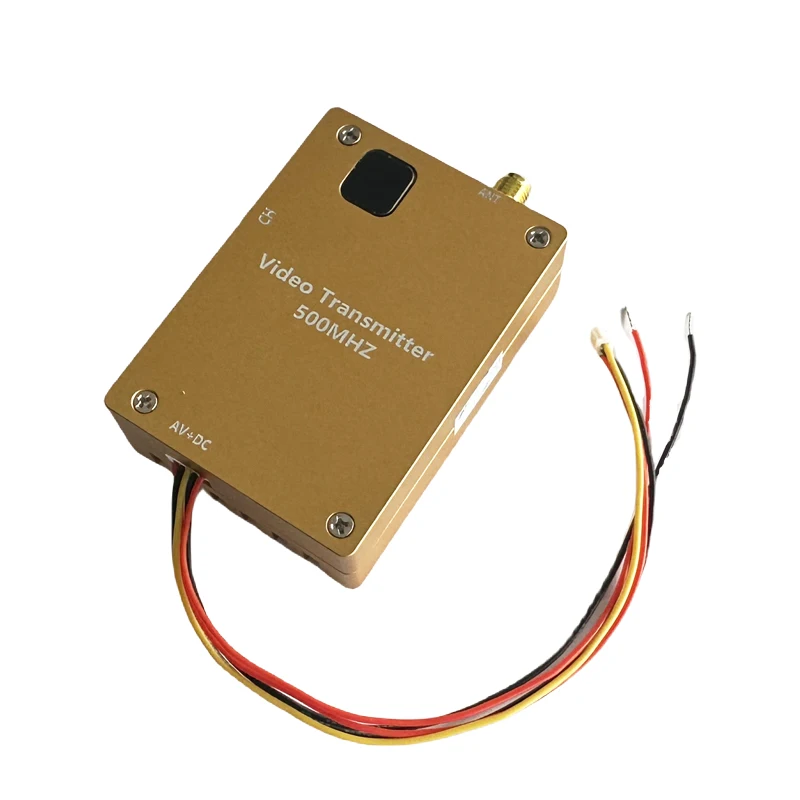

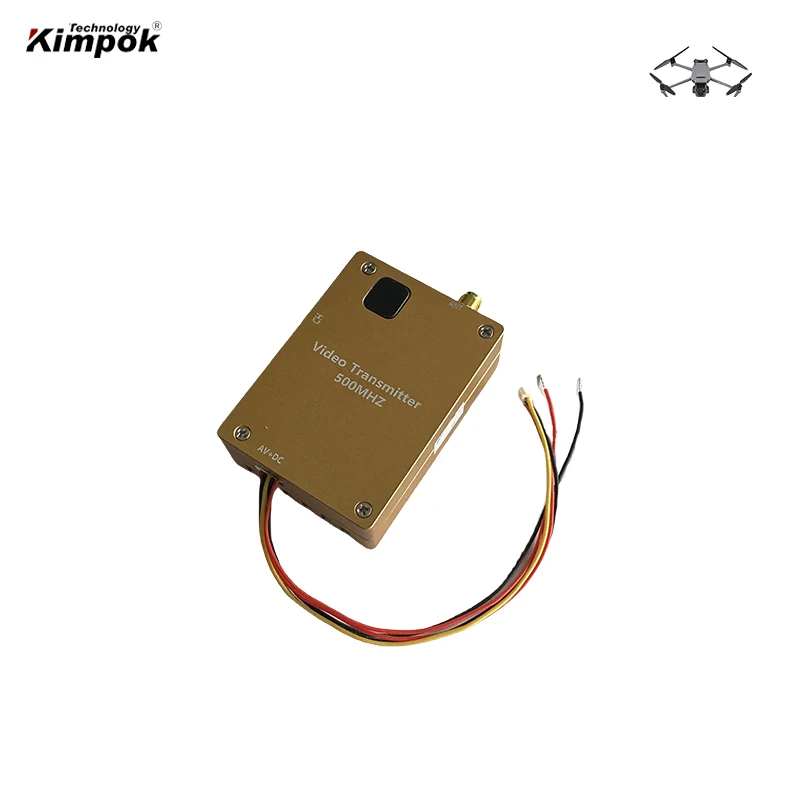

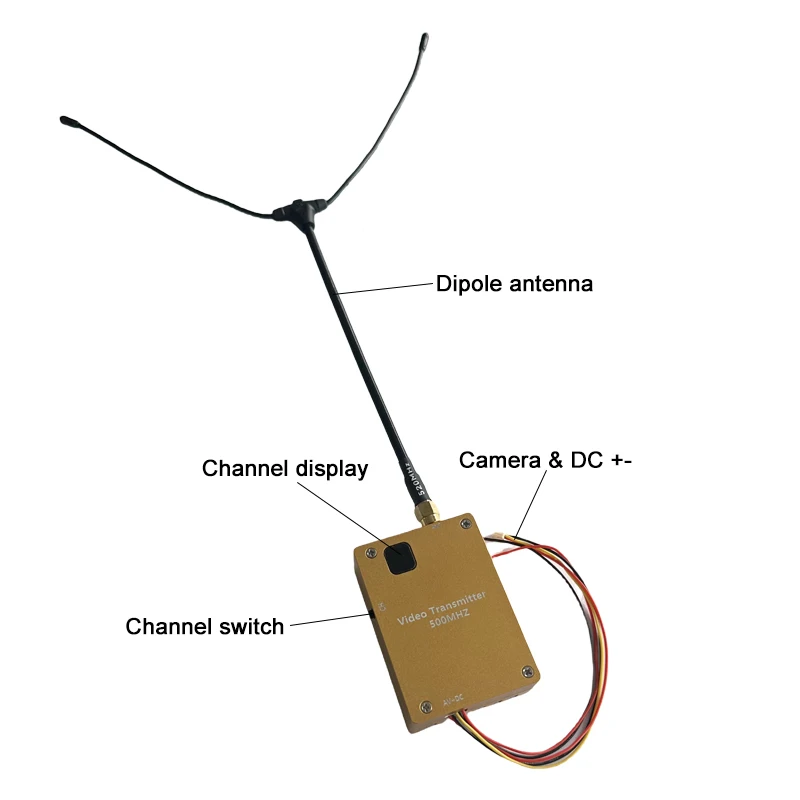

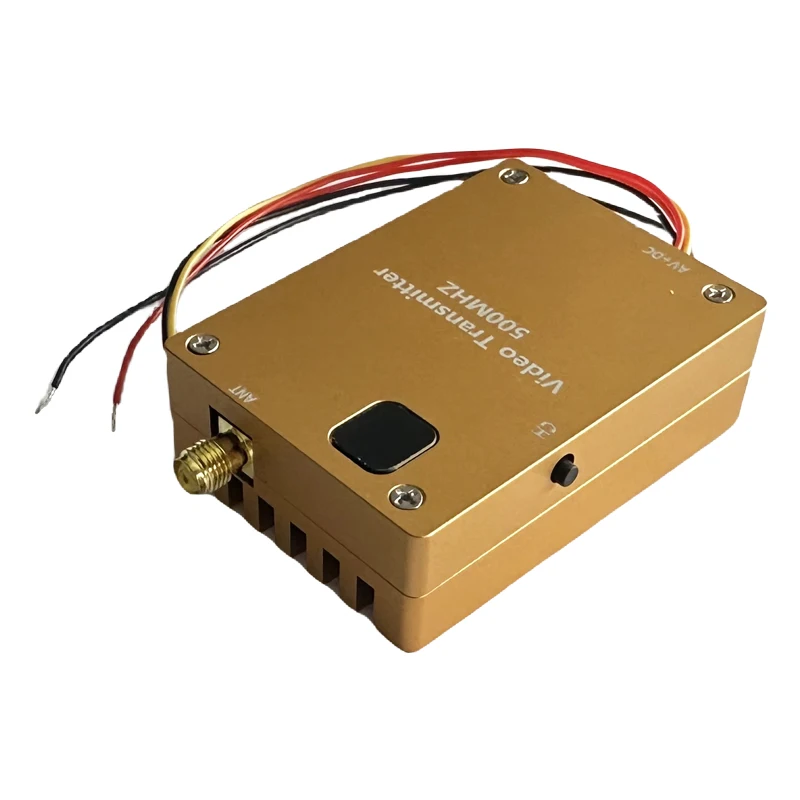

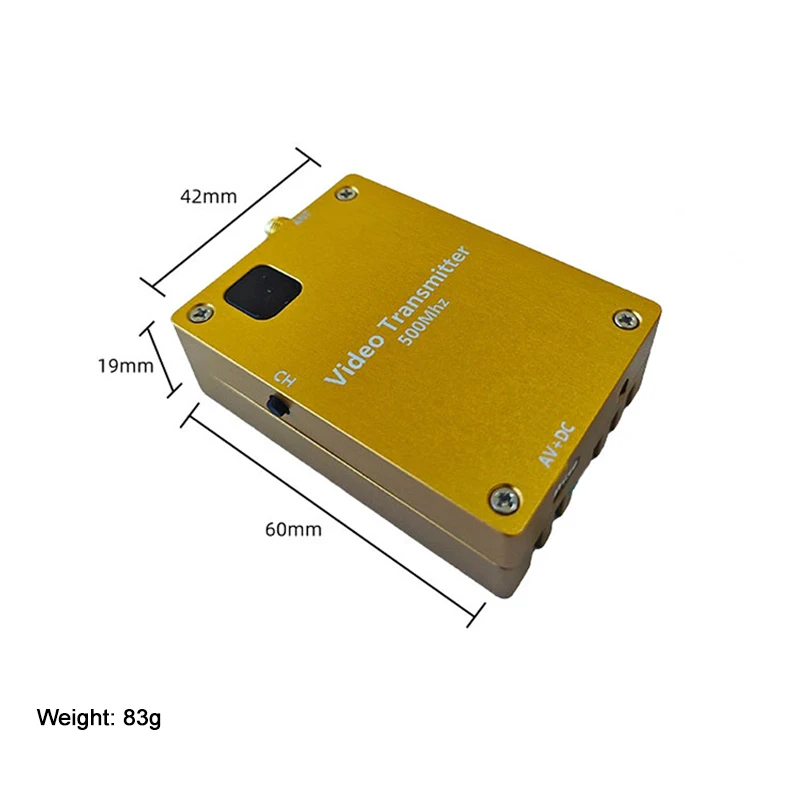

• 20~40km 500Mhz FPV Video Transmitter Drones Video Link Drone VTX 8 Channels 500Mhz FPV VTX description: KP-500VTX4W is a brand-new wi-fi video transmission device, which adopts FM modulation mode and brand-new frequency, keeping off the 1/1/2 wireless transmission that has been used more within the identical range, fending off an analogous frequency interference, and is more compatible for use in advanced environments The receiver sensitivity is -85dBm, and the transmitted image is apparent and secure With a ground high-gain antenna, it would transmit 2~3km within the open subject of the city, and about 40km within the air-to-ground LOS (the transmission distance is varied in different environments, and the explicit transmission distance depends upon the particular operating environment) The transmitter is exquisitely crafted, product of special metal, and in addition has a high-speed fan, which is extra conducive to heat dissipation and more appropriate for long-term paintings The sign enter adopts a common AV interface, which are easily well matched with all conventional AV interfaces akin to cameras, VCDs, DVDs, and so forth KP-500VTX4W isn't just a pro wi-fi CCTV transmitter and receiver for CCTV safety projects, but additionally can be utilized for video transmission of FPV systems, drones, mannequin aircraft/helicopters, unmanned package vehicles, and many others (customizable if information ought to be transmitted) 500Mhz 4W VTX specification: Voltage DC 12V Current 900mA Frequency 500Mhz Frequency band 460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz Number of channels 8 channels Transmit Power 4 watt Video Output 1 Vp-p(FM) Audio Output 1 Vp-p(FM) Audio Carrier Ware five 6 Overall Configuration Transmitter, receiver, video cable, antenna Temperature -10℃～+50℃ Transmitter Weight 83g Dimensions (L * W * H) 64*46*20mm(antenna port no longer included) VRX specification: Voltage DC 12V Frequency 500Mhz Frequency band 460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz Number of channels 8 channels Video Output 1 Vp-p(FM) Audio Output 1 Vp-p(FM) Audio Carrier Ware 5 6 Overall Configuration Transmitter, receiver, video cable, antenna Temperature -10℃～+50℃ Transmitter Weight 83g Dimensions (L * W * H) 83*68*15mm(antenna port no longer included) Tips: To transmit long range, you'll need a excessive acquire antenna on VRX side, please contact us to put forward the acceptable high gain antenna FAQ: Q1: What can I buy from you? COFDM electronic AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board Q2: Why must Ichooseyou? Our core R&D crew comes from the top notch university in China, major in communication engineering We have confidence that wireless conversation will carry on constructing in authentic markets in the future Q3: Do you've got a minimal order quantity? No MOQ limit, 1pc is suitable Q4: What form of product carrier can I have? OEM & ODM service Q5: What is the product warranty? We offer two-year-warranty and lifetime upkeep Q6: What is the common lead time? 5-7 operating days for regular model, and 20-30 operating days for customized model Q7: What styles of payment tips do you accept? We accept bank transfer, Western Union, PayPal, or cash fee Q8: Can you supply the applicable documentation? Yes, we will present maximum documentation adding Certificates of Analysis / Conformance; Country of Origin, and other export paperwork the place required Our Service: One-stop ODM/OEM solution; 24-hour technical support; Lifelong upkeep (Replacement components will be charged after a year); Provide respectable method design and construction; You will get nice payment and nice right here since we're an experienced manufacturer in wireless microwave transmission area since 2008, we are the supply

•
•
•
•
•
