Descriptions

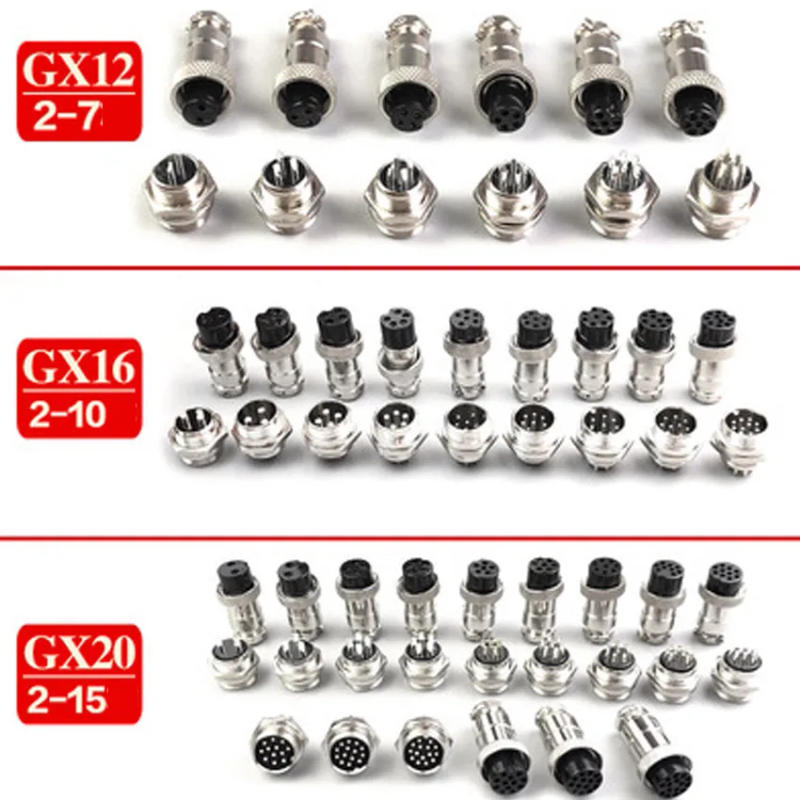

• 5/10/20set GX12 GX16 GX20 Male Female Air Aviation Connector 2p three four five 6 7 8 9 10 12 14p 15Pin Electrical Power Cable Plug Socket Pls observe the value is one set with male plug+female socket Description:Diameter :GX16 GX20 GX12 For choiceEnvironmental conditionsAmbient temperature: -50 ~ +70 CRelative humidity: as much as 98% at +40 CAtmospheric pressure: as much as 4,4 kpaVibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2Centrifugal: acceleration 250m/s2Main technical characteristicsRated voltage: 2 core /3 core/ four core- 400V, 5 pin /6 pin /7 pin /8pin- 250V Rated current: 5AContact resistance: (each touch pair)Less than zero ΩInsulation resistance: In normal conditions, not less than 1000MΩ; after constant heat tests, now not less than 20MΩ voltage: (50Hz, RMS) In ordinary conditions, 2 core /3 core/ four core-1500V, 5pin/ 7pin -1200V,After fixed heat test, 2 pin/ three pin /4 pin -1200V, 5pin /7pin- 1000VSeparation Force: Each unmarried foot separation force is 1-3N, total separation force is one and a 1/2 the upper limit complete amount of every singlefoot separation ForceTemperature Rise: at rated load, the touch of the temperature upward thrust shouldn't exceed +50 C ambient temperatureLife: after the use of the plugs 500 times, the sockets and shops should not be damaged

•
•
•
•
•
