Descriptions

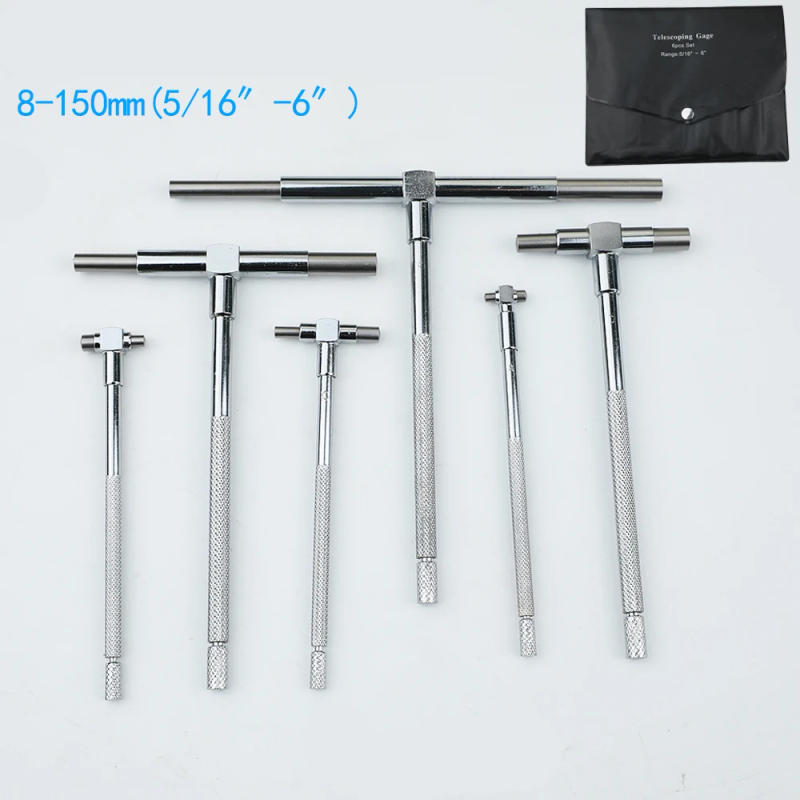

• 6pcs/set Telescoping gauges 5/16&;&;-6&;&;Size A: 5/16&;&; - 1/2&;&; (8 mm to 12) Size B: 1/2&;&;- 3/4&;&; (12 to 19mm) Size C: 3/4&;&; - 1-1/4&;&; (19mm to 32mm) Size D: 1-1/4&;&; - 2-1/8&;&; (32mm to 54mm) Size E: 2-1/8&;&; - 3-1/2&;&; (54mm to 90mm) Size F: 3-1/2&;&; - 6&;&; (90mm to 150mm) Product utility Under uniform spring tension, the plunger of the gage expand from the center to the diameter of the outlet or width of slot being measured after which locked in position by way of a knurled knob, the outlet length is located by measuring over the two contact level with a micrometer or caliper Letter Code Range Overall Length Depth A 5/16&;&; - 1/2&;&; (8 mm to 12) 4-3/8&;&; 4&;&; B 1/2&;&;- 3/4&;&; (12 to 19mm) 4-3/8&;&; 4&;&; C 3/4&;&; - 1-1/4&;&; (19mm to 32mm) 4-3/8&;&; 4&;&; D 1-1/4&;&; - 2-1/8&;&; (32mm to 54mm) 5-7/8&;&; 5&;&; E 2-1/8&;&; - 3-1/2&;&; (54mm to 90mm) 5-7/8&;&; 5&;&; F 3-1/2&;&; - 6&;&; (90mm to 150mm) 5-7/8&;&; 5&;&; Product facets Double motion inflexible manage with self centering feature for speedy checking of holes, slots and recess up to 6&;&; deep The ends of either contact are head handled chrome steel and precision floor to a radius to allow proper clearance on the smallest gap the gage will input Constant spring tension provides uniform touch stress Handles are rigidly hooked up to the contact plungers and are automatically self-centering Satin chrome done

•
•
•
•
•
