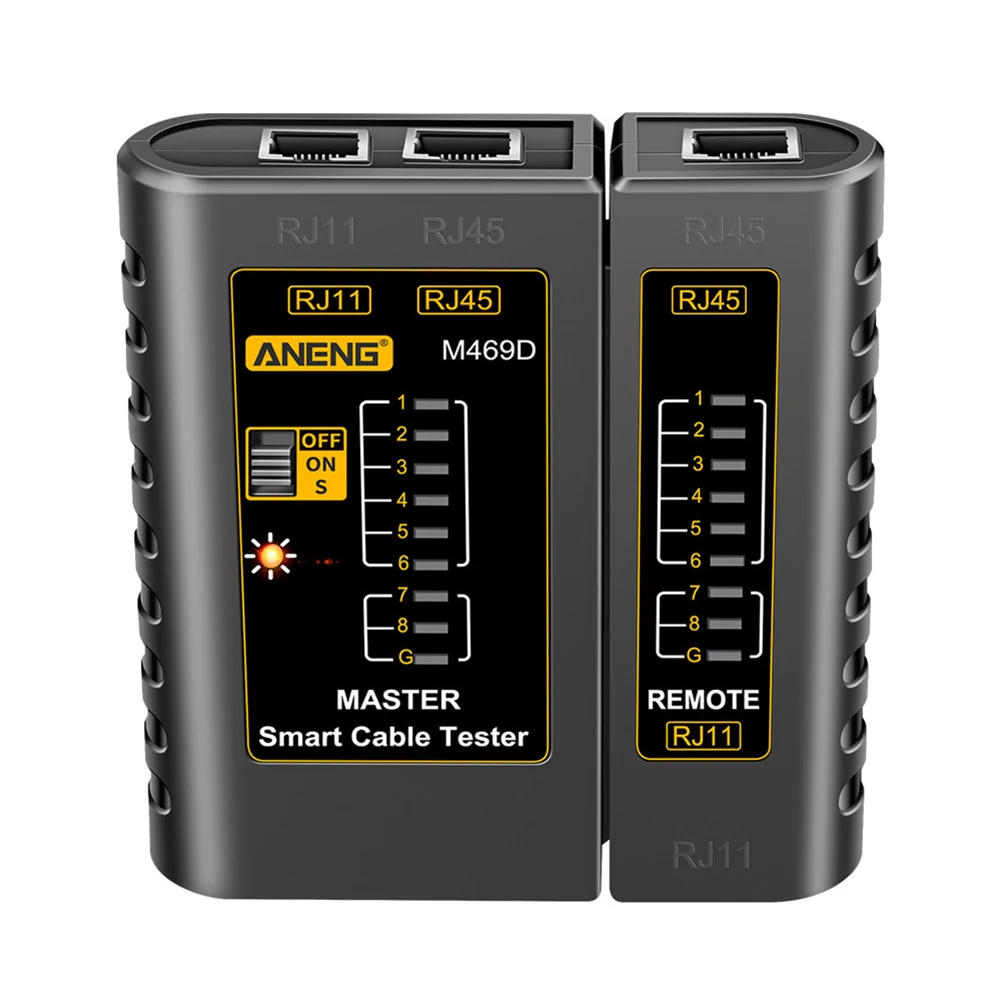

• ANENG M469D RJ45 RJ11 Network Cable Tester LAN Cable Networking Wire Telephone Line Detector Tracker Test Tool Feature: Test of double-twisted cables: Switch at the power (S is gradual automated grade, Mis manual) Put cables into both leading tester and distant tester The lighting of the most important tester will switch on sequently type 1 to G Main tester: 1-2-3-4-5-6-7-8-G Remote tester: 1-2-3-4-5-6-7-8-G RJ45 1-2-3-4-5-6 RJ11 Following are abnormal connections: If one cable, as an instance cable NO is open circuited, the 2 NO lighting of the major tester and distant tester won't switch on If several cables will not be connected, a number of lighting won't switch on respectively If less than two cables are connected, none of the lighting is on If two ends of a cable is disordered, as an instance NO 2and NO 4, then displays on: Main tester: 1-2-3-4-5-6-7-8-G Remote tester: 1-4-3-2-5-6-7-8-G If two cables are brief circuited, neither of the corresponding lighting is on of the distant tester while main tester stays unchanged If 3 cables, including three, are quick circuited, none of the corresponding lighting fixtures is on If examine patch panels or wall plate outlels, two cables which may match each other (RJ45) can be related to the tester If test cables of an identical axes, BNC turns on when the cable works Specification: Color: Black, Yellow Material: ABS plastic Size: 103x97x27mm/4 Power supply: 9V 6F22 battery (not included) Interface end: RJ45+RJ11 Note: Due to the various monitor and light-weight effect, the particular shade of the thing is probably barely assorted from the colour showed on the photographs Thank you! Please allow 1-2cm measuring deviation because of handbook measurement 1 X Line Measuring Instrument 1 X Instruction

•
•
•
•
•
