Descriptions

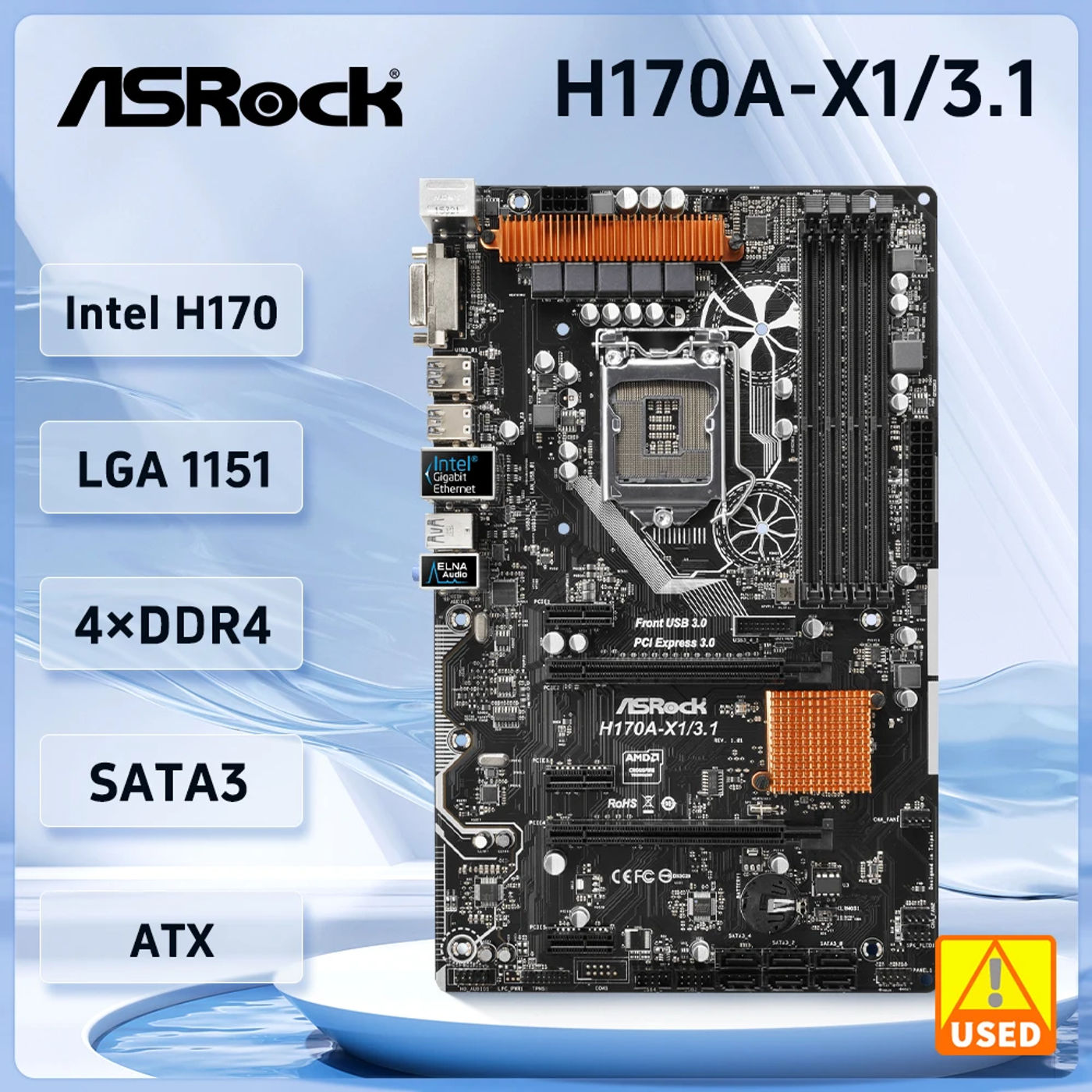

• Motherboard chip Integrated chip Sound card/network card Main chipset Intel H170 Chipset description Using Intel H170 chipset Display chip CPU built-in show chip (CPU support required) Audio chip Integrated Realtek ALC892 8-channel sound chip Network card chip Onboard Intel I219V Gigabit community card Processor specifications CPU type Sixth era Core i7/i5/i3/Pentium/Celeron CPU slot LGA 1151 CPU description Support Intel 14nm processor Memory specifications Memory variety 4×DDR4 DIMM Maximum reminiscence capability 64GB Memory description Support dual-channel DDR4 2133MHz memory Storage expansion PCI-E standard PCI-E three PCI-E slot 2×PCI-E X16 graphics card slot, 3×PCI-E X1 slot Storage interface 6×SATA III interface I/O interface USB interface 1×USB3 Type-A interface, 1×USB3 Type-C interface, 8×USB3 interfaces (2 integrated + 6 backplane), 4×USB2 interfaces (built-in) Video interface 1×DVI interface Power interface One 8-pin, one 24-pin power interface Other interfaces 1×RJ45 community interface, audio interface, 1×PS/2 keyboard and mouse common interface Board form Motherboard kind ATX board type Dimensions 30×19

•
•
•
•
•
