Descriptions

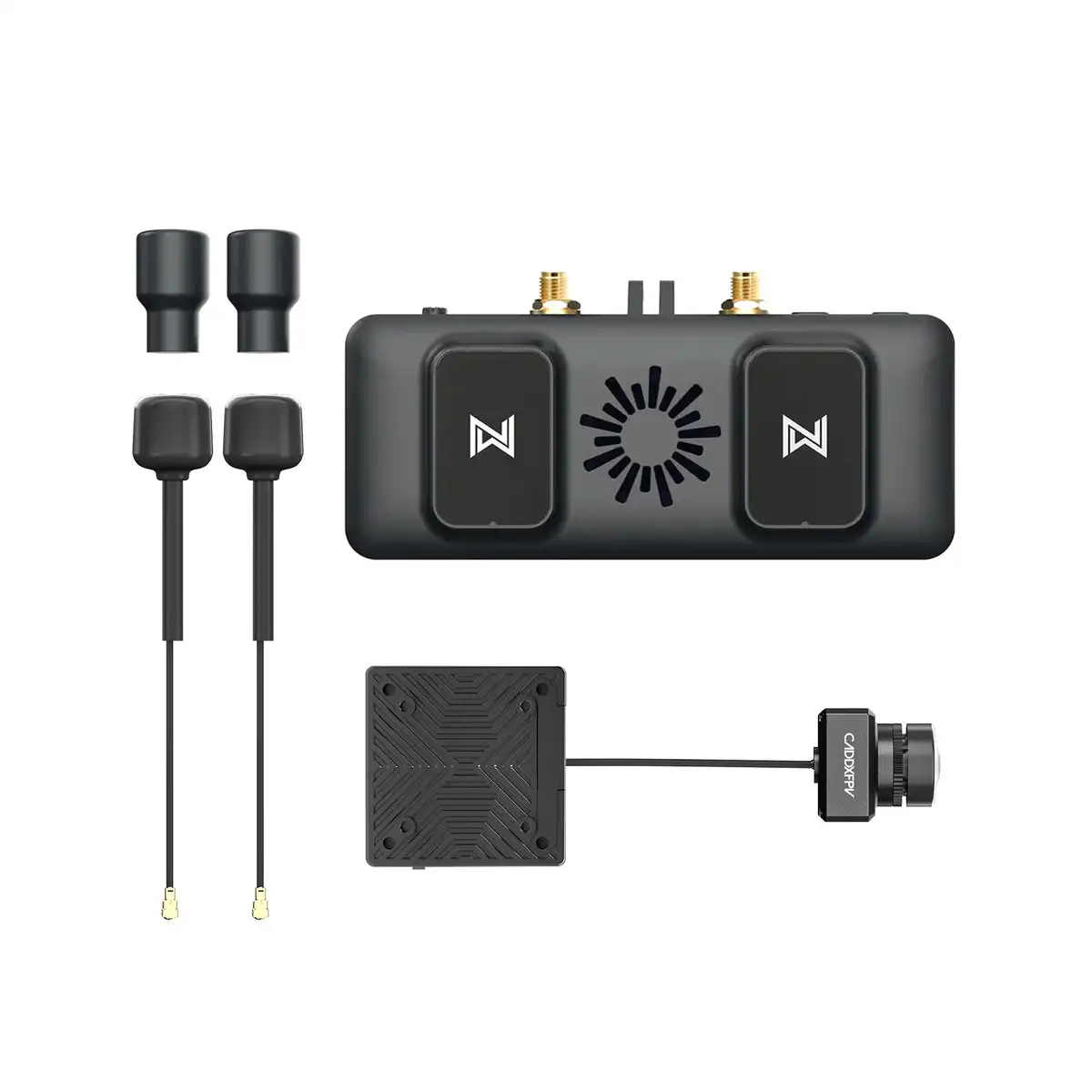

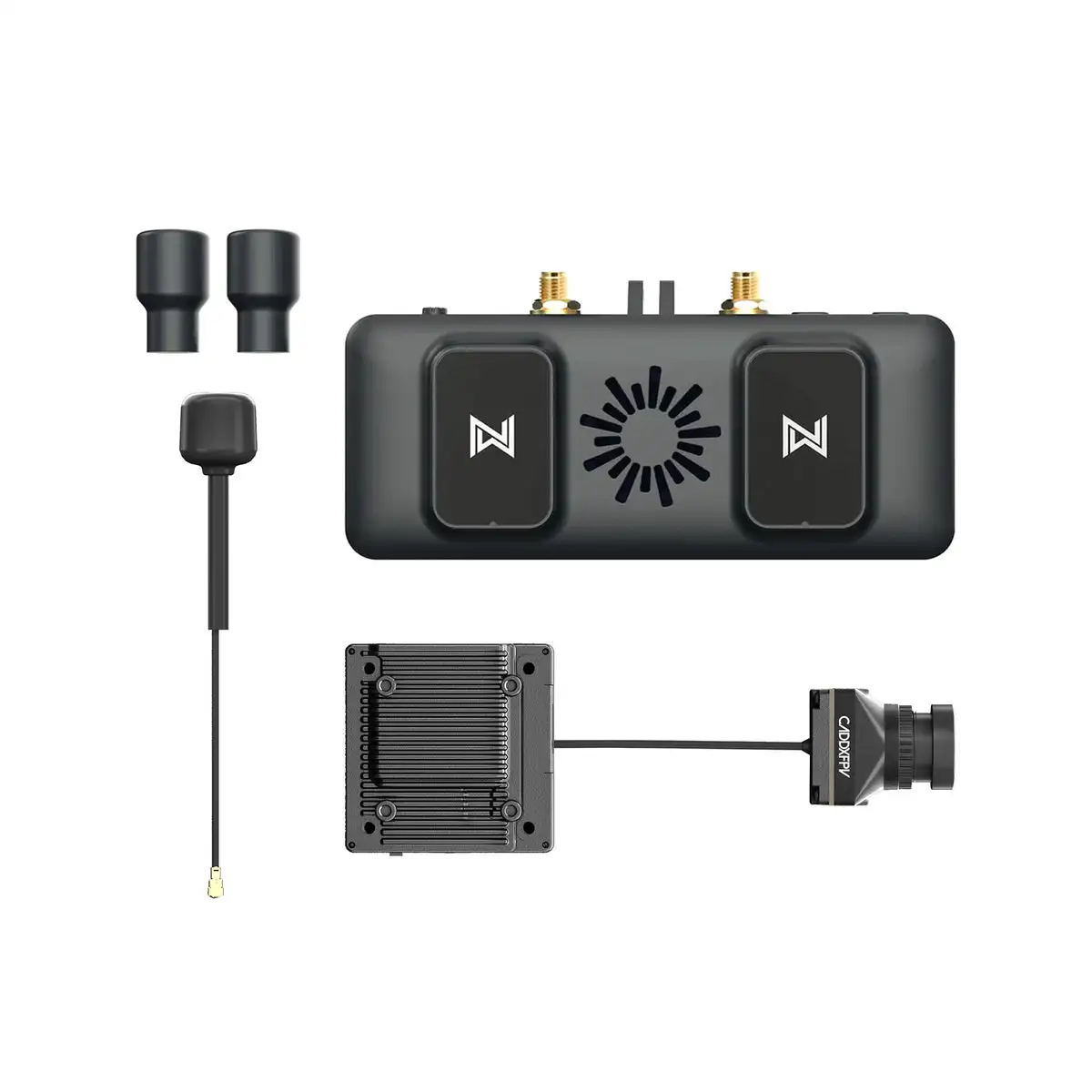

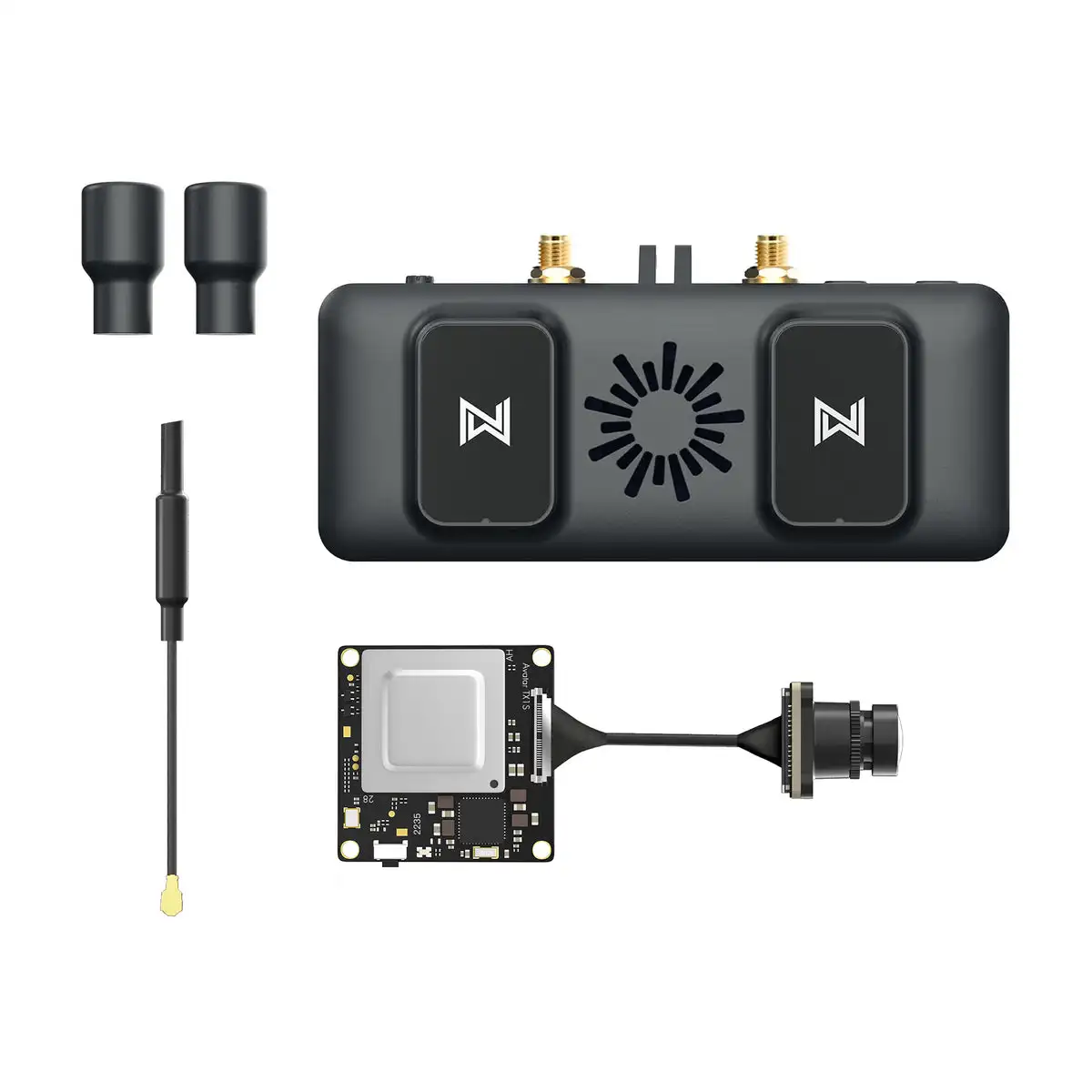

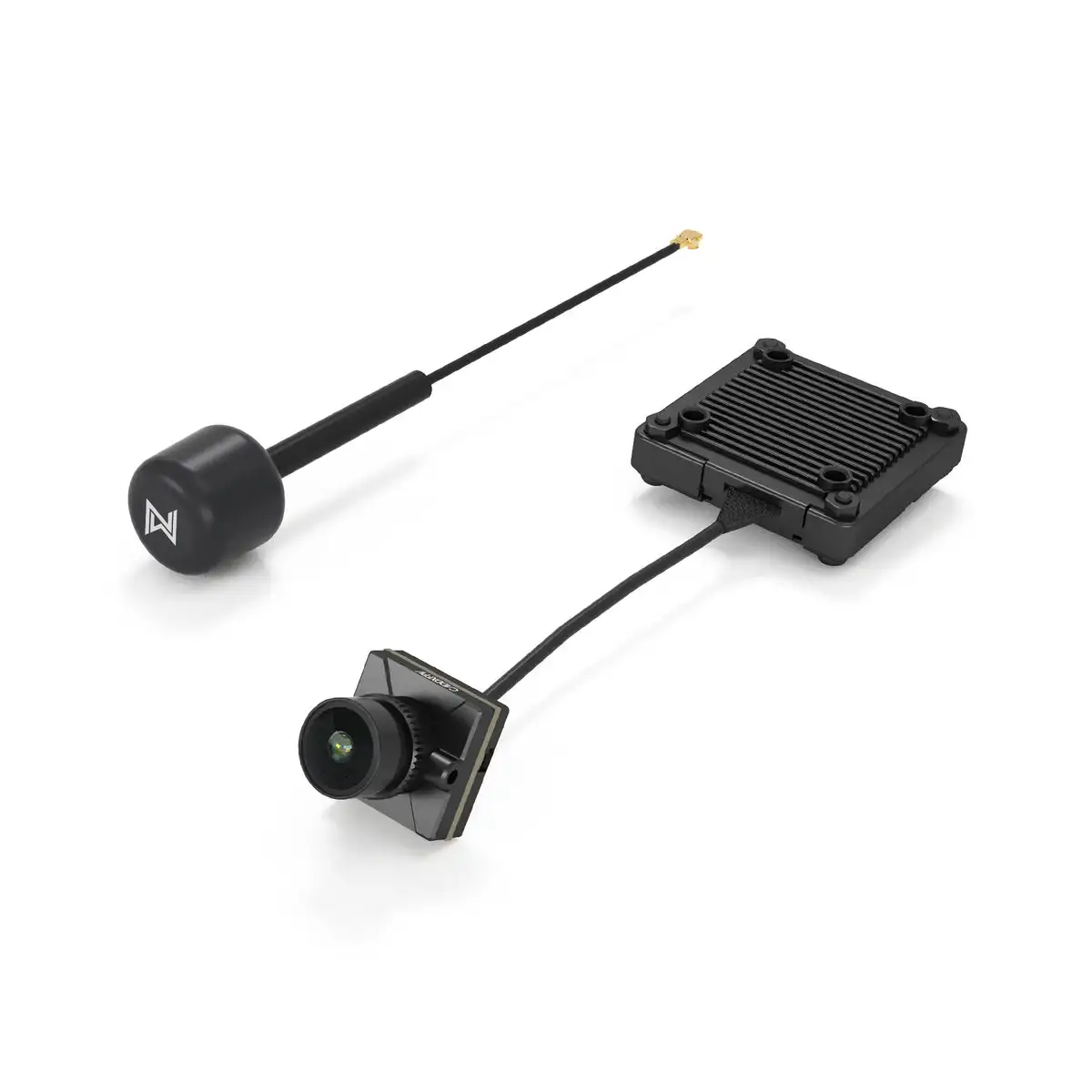

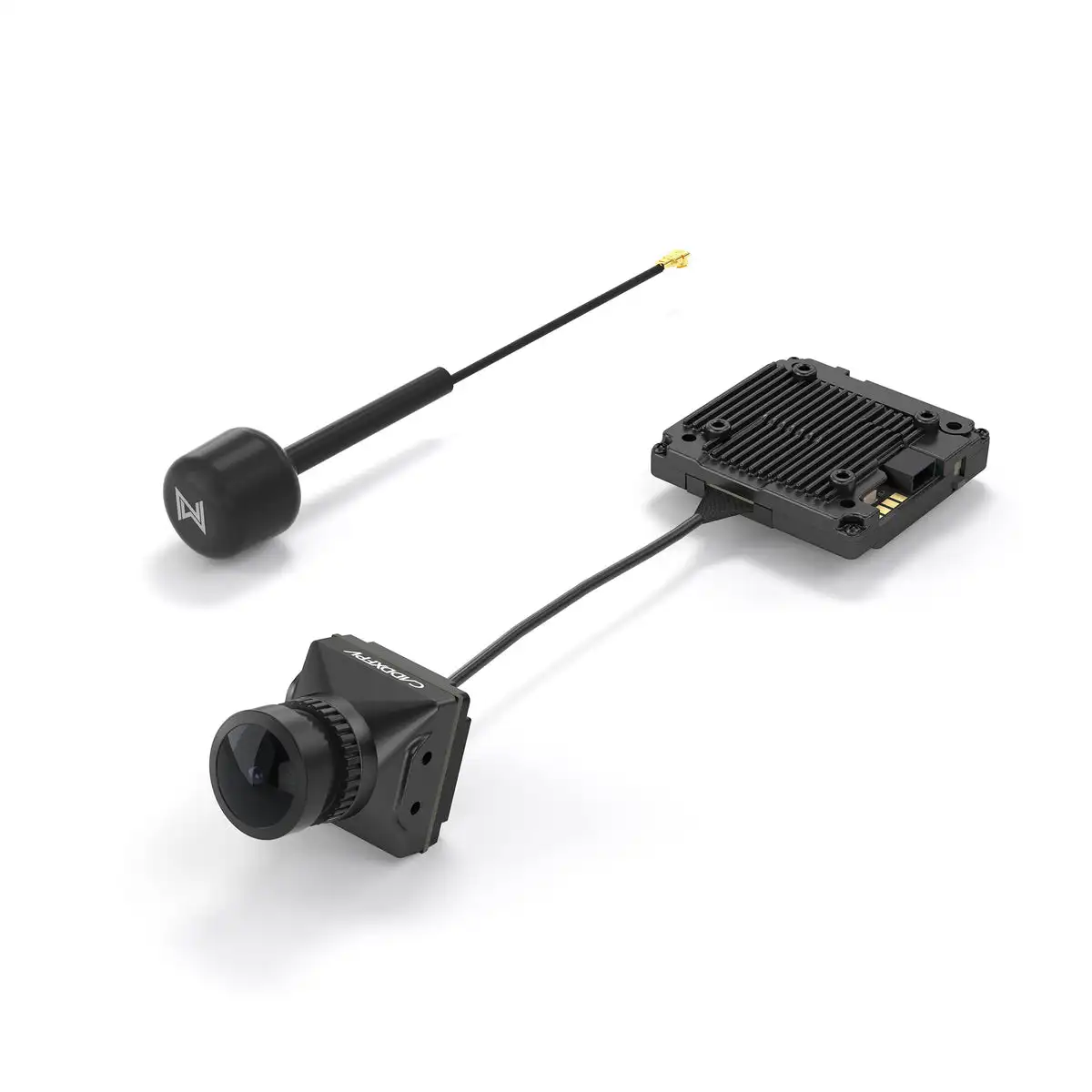

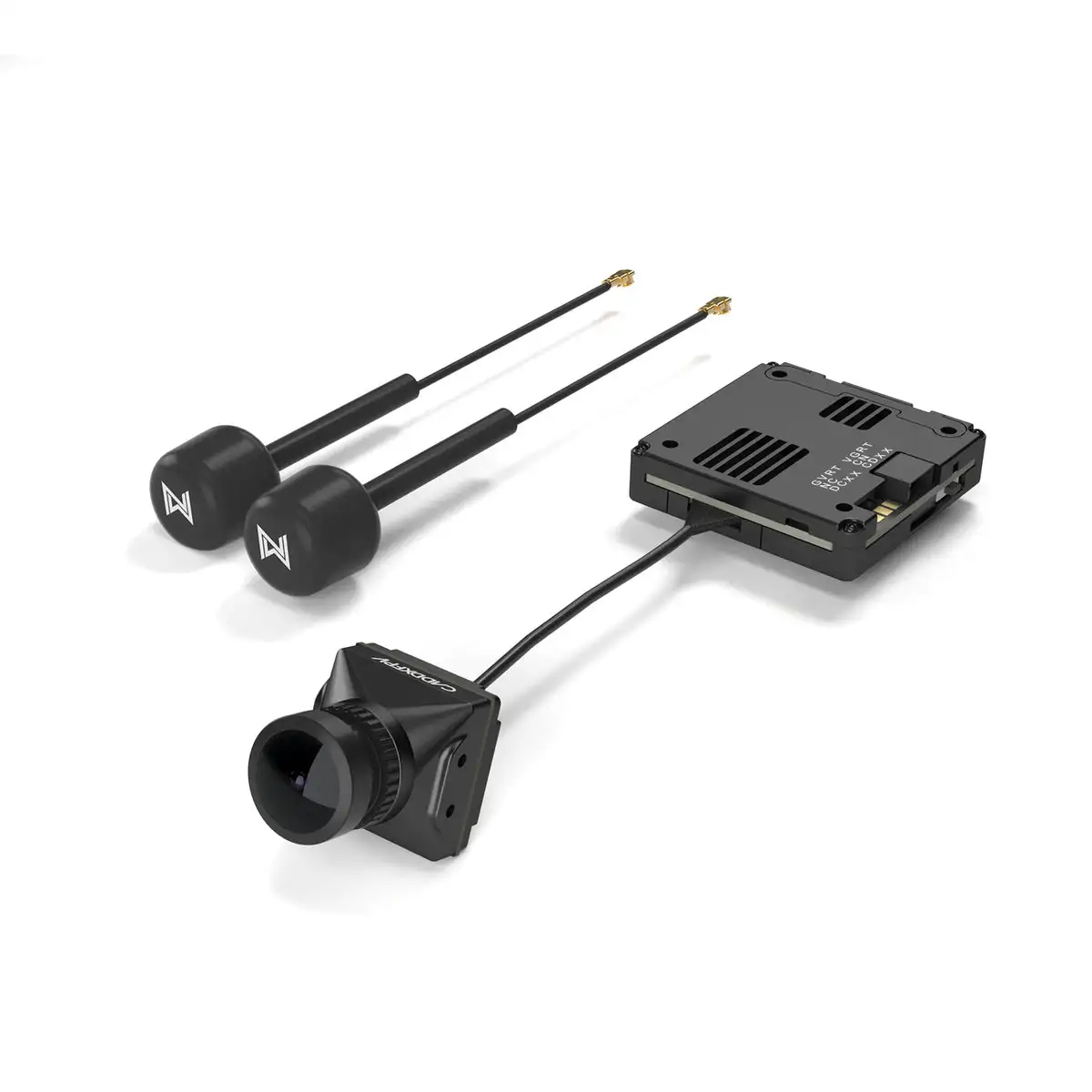

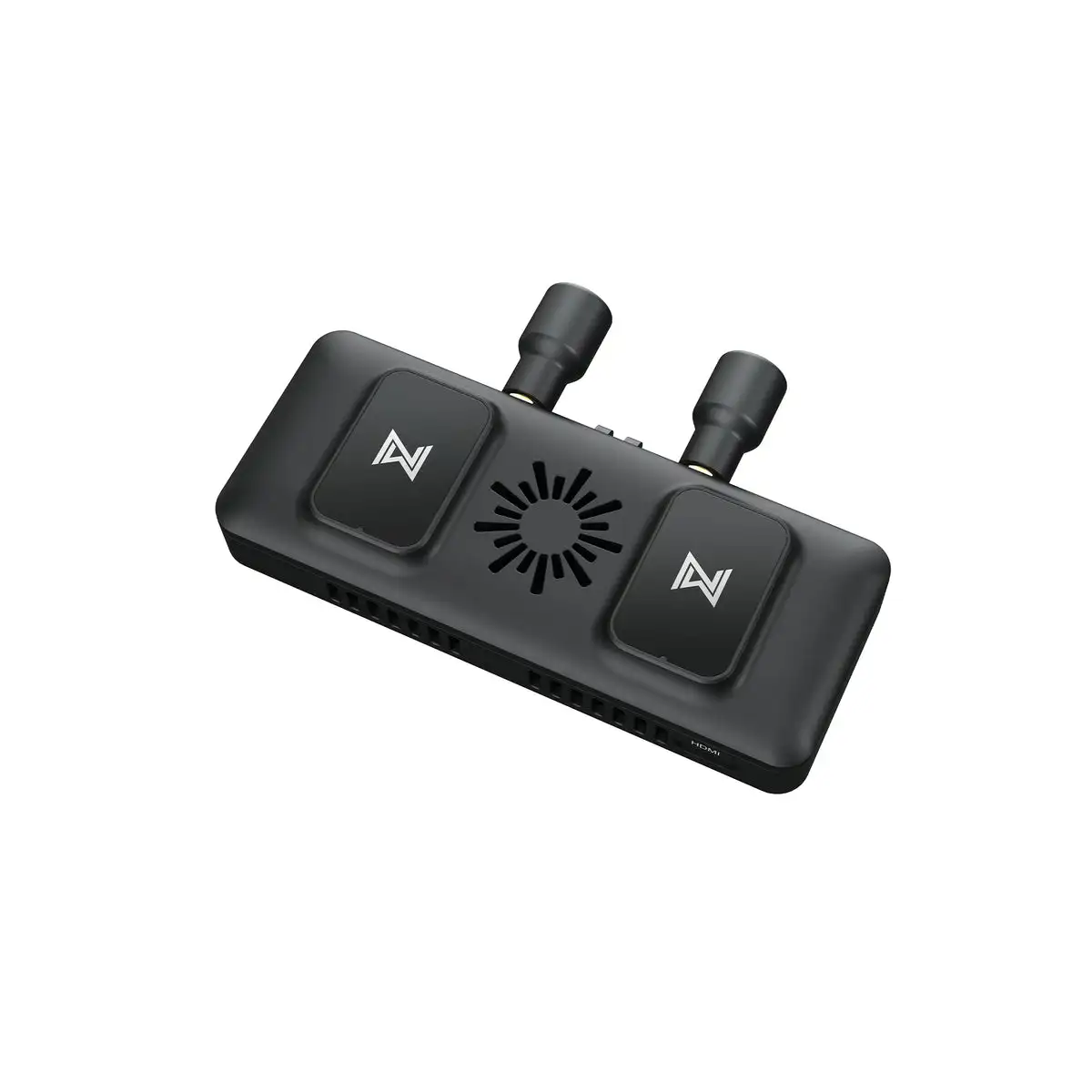

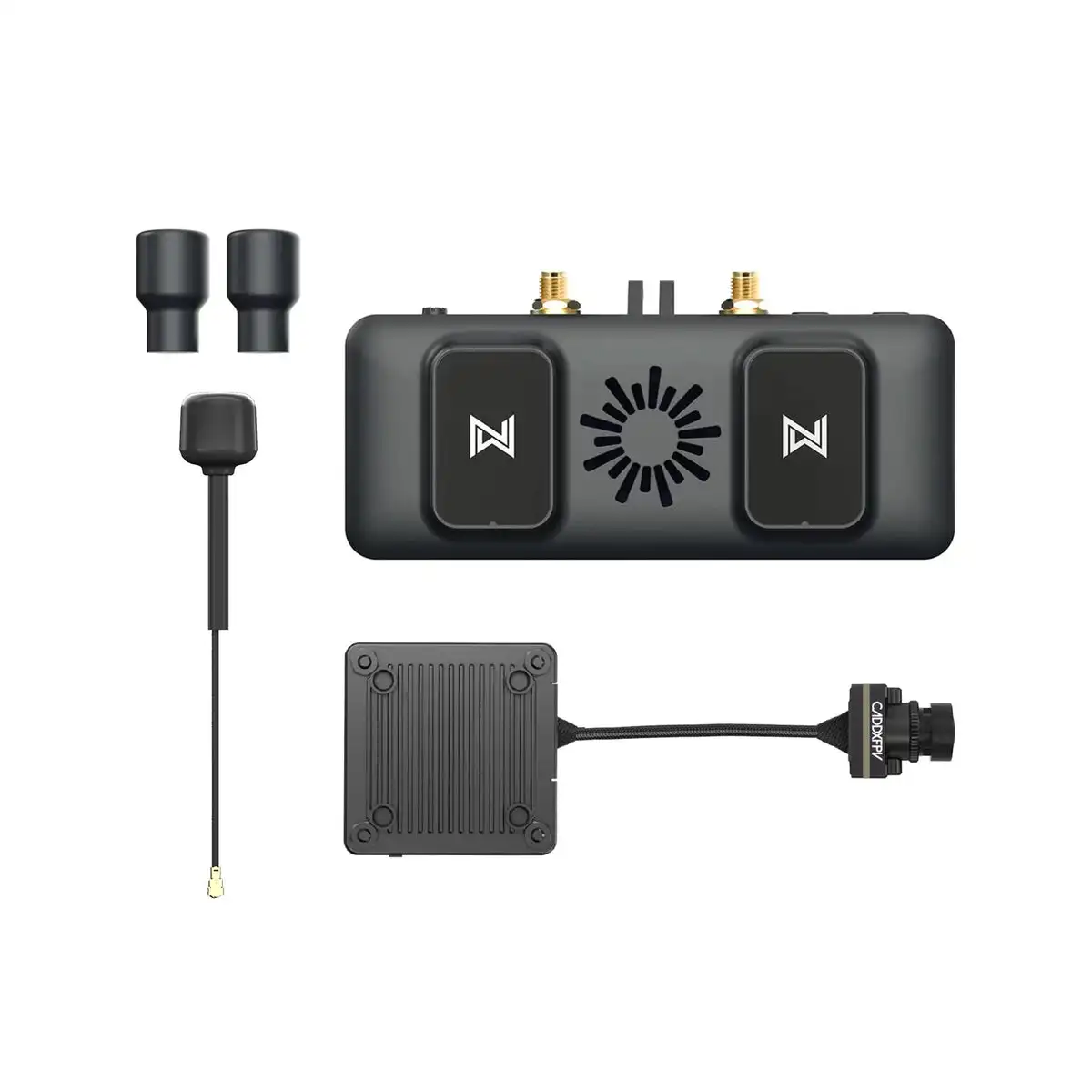

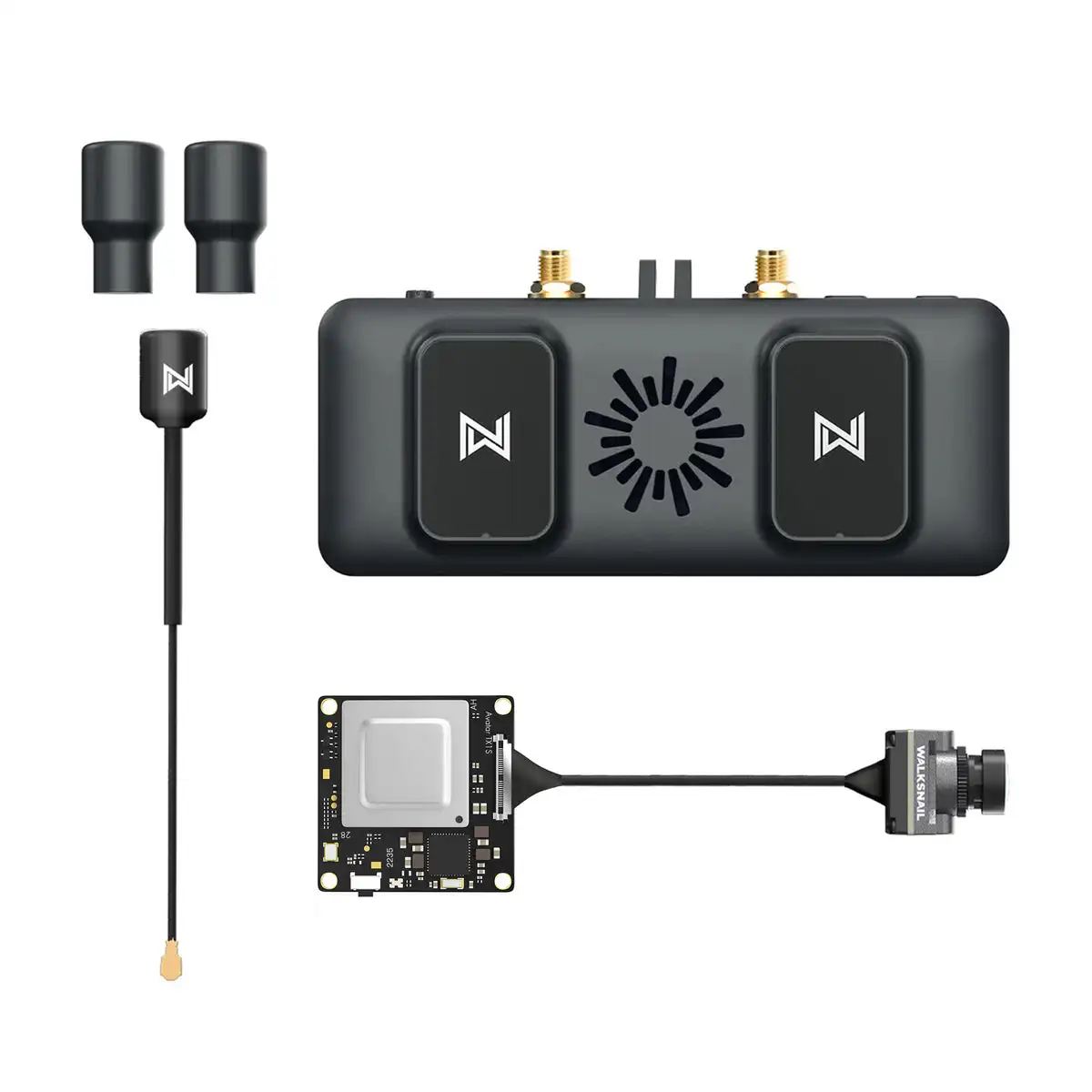

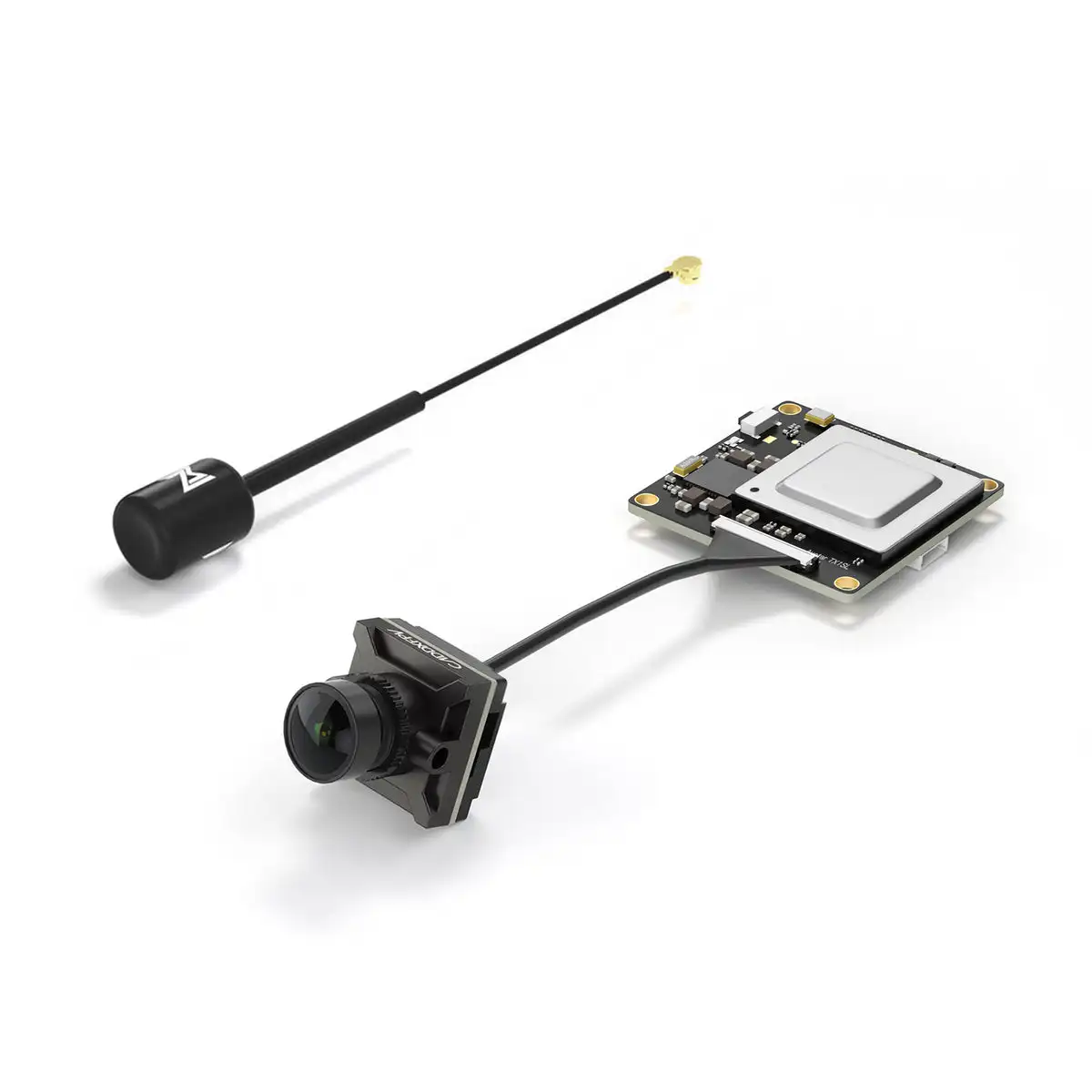

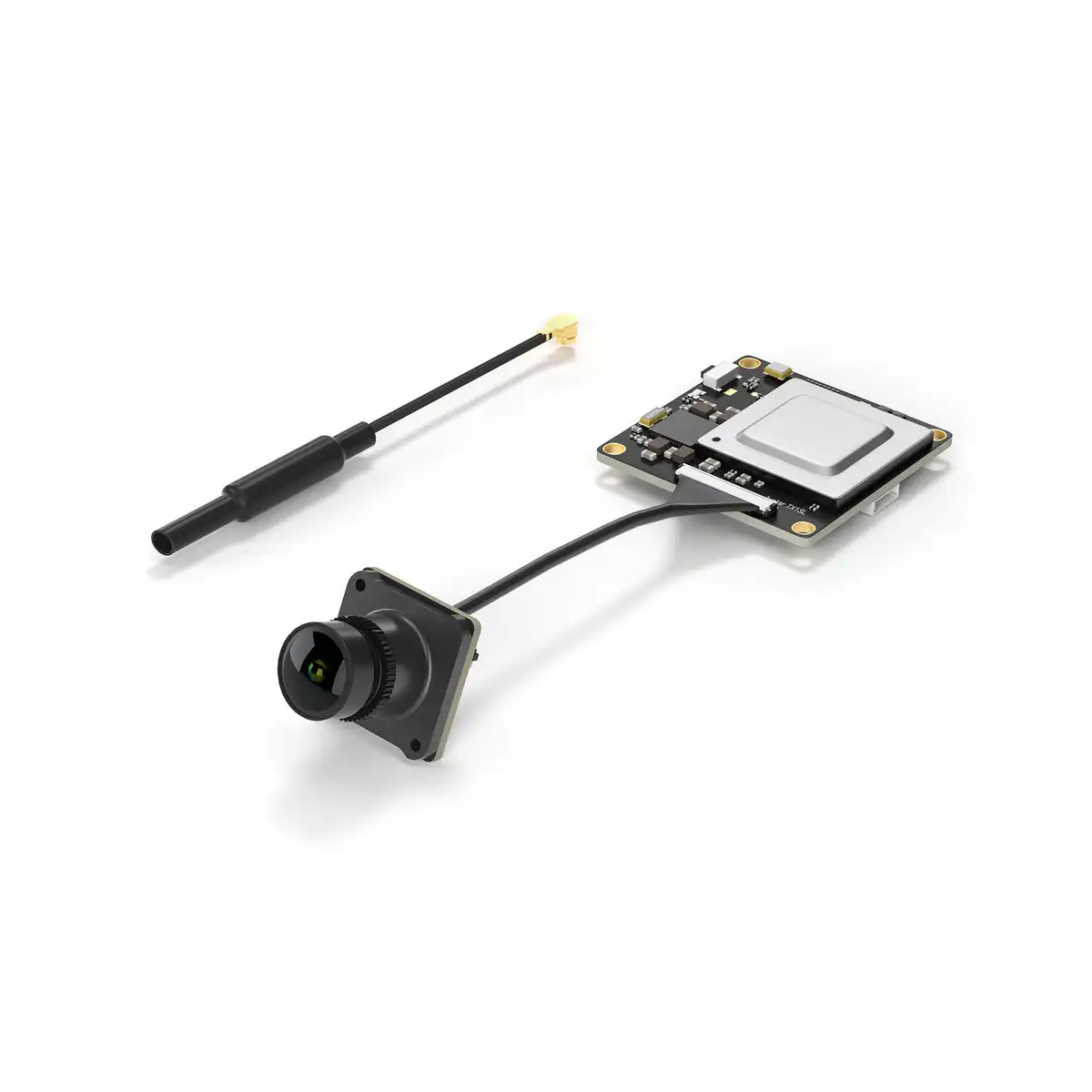

• CADDX Walksnail Avatar FPV VRX with 1S / Nano / Pro Kit Camera Lens 4KM Distance HDMI 1080P/60FPS for FPV RC Drone Spare Parts Description Specification Camera Model Avatar nano/Avatar digital camera Image Sensor 1/2"1nch Resolution 1080P/60fps,720P/120fps,720P/60fps Ratio 16/9 4/3 Lens 2 FOV 170° Aperture F2 Shutter Rolling shutter Min zero Weight 3/6g Dimensions 14*14*17mm/19*19*22mm Coaxial Cable 90mm/140mm VTX Model Avatar module Communication Frequency five Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm 1/O Interface JST1*6(Power in)JST1*4(USB) Mounting Holes 25*25 Dimensions 33*33*9 Storage 8G Recording 1080p/720p Weight 16g Operating Temperature -20-40℃ Channels eight Wide Power Input 6V-25 Supported FC System Betaflight OSD Canvas mode Latency Average delay 22ms Antenna 2(IPEX) Goggles Antenna Model Red bird Polarization LHCP Bandwidth 5 Average Gain 1 Radiation Efficiency ≥97% VSWR ≤1 Cross-Polar Rejection -15to-30dB Connector RP-SMA Dimension H24*R15 Weight 4 Avatar HD VRX Model Avatar HD VRX CommunicationFrequency 5 TransmitterPower(EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm I/OInterface HDMI,microSDcardslot,DC5*2 HDMIOutput 1080p60fps,720p100fps,720p60fps PowerInput 7-21V(2S-5S) SDCard Support256G System AvatarHDsystem Q&A Q:Is VRX well matched with goggles from different products? A:Compatible With Analog Goggles,HDMI Out(Our VRX module supports HDMI OUT, If you goggles help HDMI IN it'll work fine) Q:Do i would like a set of goggles with a 1080p decision or an 720p is enough? A:VRX supports 720P\1080P Q:Avatar HD Micro kit include a 140mm cable between the VTX and camera? A: yes Q:does the Pre-sale unit match 20x20 mount? A:Our vtx is 25*25 Q:the distinction between all three of the walksnail kits? What is the Avatar 1s vs avatar hd micro vs avatar HD nano? A: mini 1s kit 350mw, Power Input: 3, VTX Weight 6 avatar HD micro/nano package common version 1200mw, Power Input: 6V-25, VTX Weight: 16g Q:Micro/Nano Camera difference? A: Weight:3/6g Dimensions:14*14*17mm/19*19*22mm Coaxial Cable:90mm/140mm Q:hdmi type? A:mini hdmi Lightweight design, ultra-thin experience Walksnail VRX only 83g and springs with 114*55*22mm size, smooth to carry Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a most transmission distance of greater than 4km 1080P/60FPS Walksnail VRX adopts industry-leading H encoding technology, which might provide a minimal delay of 22ms and a most resolution of 1080p The HD photograph high quality takes you to experience the fun of flying a drone HDMI output ensure you to get pleasure from uncompressed audio and video signals from the Walksnail HD formulation Canvas Mode Supports betaflight full OSD display,supports betaflight, inav, kiss complete osd display you would smoothly alter the parameters you want through handheld remote control

•
•
•
•
•
