Descriptions

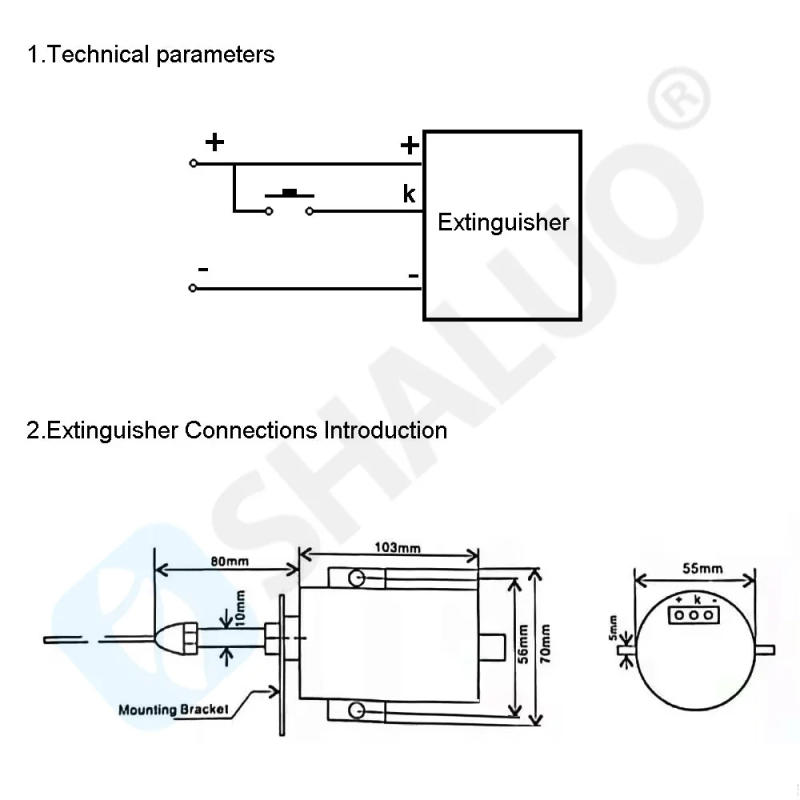

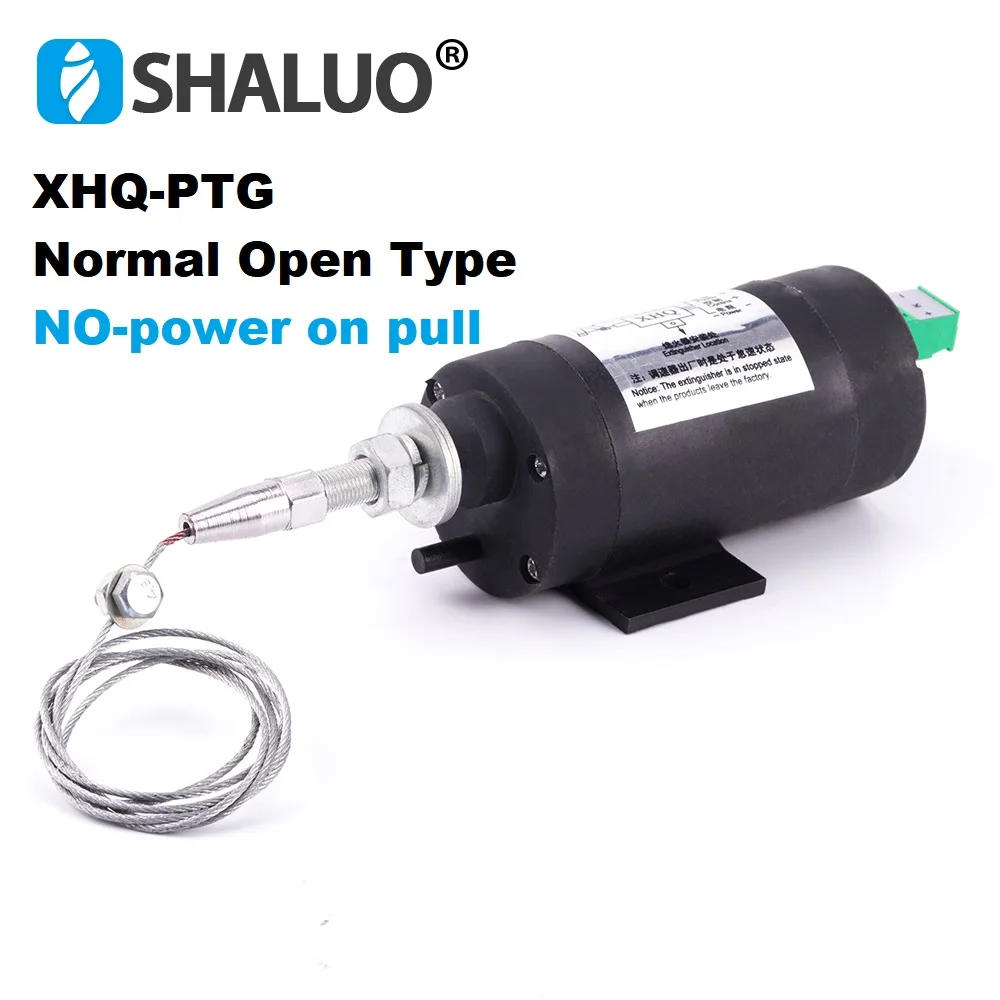

• 12V 24V Engine Flameout Device Off Valve Normal Open XHQ-PTG XHQ-FZ Normal Close non-obligatory 1 Parameters working voltage :12V (9-15V DC), 24V(18-30V DC) Fully loaded action Current:12V-2,24V-1 0A (deenergize automaticallywhen reachingactuation and the operating latest isunder 15mA)Working crent of the contol line: <15maOperating stroke: 45±1mmMaximum tension: 100NEnvironmenttemperature: -30℃~ 60℃Actuation time: ≤2sOverload protection: to guard the extinguisher it will quit working when the mechanical device isoverloaded or caught And it'll power on back after switching off for a while Extinguisherrecovers to work when resetting from malfunction Extinguisher Connections IntroductionExtinguisher terminals are proven as followed:Positive pole (+): linked the high quality pole of batteryK: Control line enter in positiveNegative pole (-): Connect the negativeClockwise: when the management traces strength on, the extinguisher starts to wark And it stopsrunning routinely whenreaching actuation After deenergizing, extinguisher sets free,and stops when actuating: when the control lines energy on, the extinguisher begins to paintings Anditstops unning automatically whenreaching actuation After control strains power on,theex-tinguisher units free, and forestalls when actuating Installment And CautionsTo keep away from useless machine, be certain that beforeextinguisher actuates, the joystick of dieselengine does not reach the restricted role Ifnot, the extinguisher would ruin down auto-matically for the overload defense At this time, as a way to run the machine normally, youshould swap off and modify it to power on back

•
•
•
•
•
