Descriptions

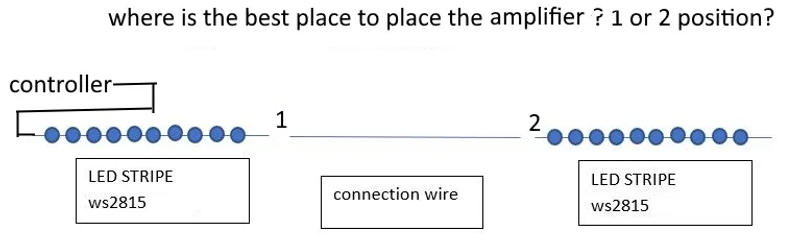

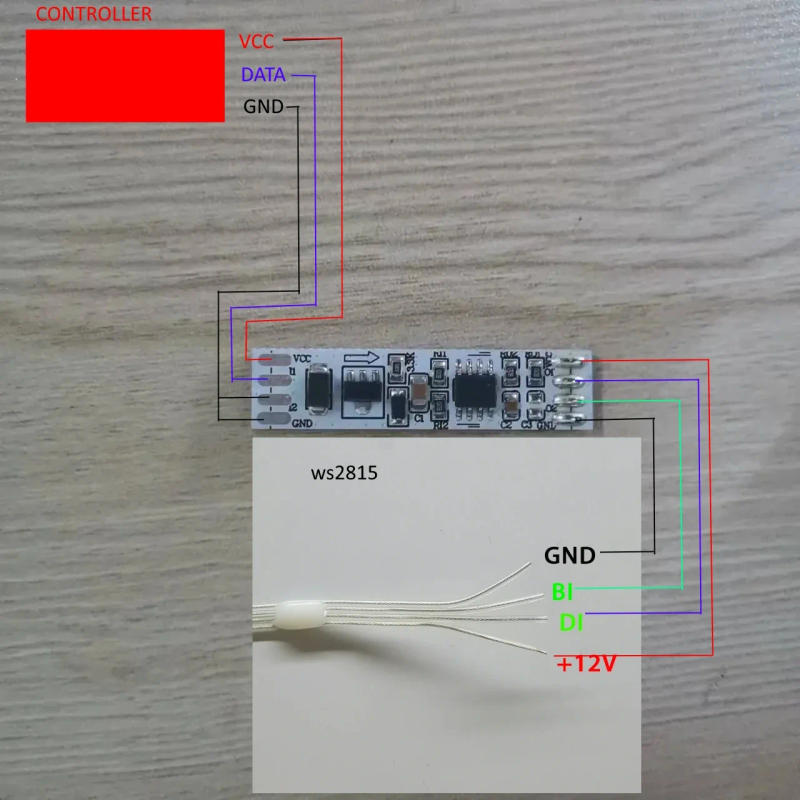

• package embody ：The quantity is analogous to what you bought, as you select No soldering, simply forums Control what sort of lighting fixtures fixtures: Supports both 3-pin and 4-pin, as prolonged because it is a TTL sign lighting fixtures fixture, comparable to the most typical ws2811, ws2812,2813,2815,2818,ect, And 6812 68131903，1934，8208，8806, ect This wiring series all is correct. Connection 1: Connect controller records to d1 and d2, and fix controller GND to amplifier GND Connection 2: Controller information connected to d1, controller GND connected to d2 and GND One final time (May 29, 2024)I beg you to take a clear look earlier than creating a purchase!I beg you to take a transparent look earlier than creating a purchase!I beg you to take a clear appearance earlier than making a purchase!If you do not have confidence our description, please don't purchase! Regarding the sign transmission distance, this can be a comprehensive issue, now not smoothly thinking that utilizing an amplifier can expand through technique of what number of meters!The TTL signal has the difficulty of decreasing sign because the transmission distance increases,The function of this amplifier is to augment the signal! How some distance a sign would be transmitted, the biggest factor is the fabric of the extension cable!!Secondly, it is also determined through your utilization method, which controller you use, and what form of light fixtures you control! Even the usage environment round you (strong or vulnerable electricity, magnetic fields, and other sign interference) Usage suggestions:Extension cable material: Super Category 5 community cable, can be prolonged via greater than 8 meters, commonly 15 meters within the environment (there isn't any sign interference around the environment) 22awg wire, can be prolonged by way of manner of two meters. If your lights fixture has low brightness, it may be extended via 3-5 meters (we have proven this difference in the product video)If it would not reach 2 meters, it may be because the sign is already very vulnerable or the twine loss is simply too high! Usage: If the amplified sign is divided into a number of parts, the transmission distance may also be correspondingly reduced! That is to say, when you weld a number of connectors to attach a number of lighting fixtures at the identical port! The signal might be divided into multiple parts, and the transmission distance will naturally decrease! If you are using regular wires instead of Ethernet cables!! Don&;t comment on what number of meters the amplifier can extend in product reviews! And try not to use community cables with sign shielding protection, as this may additionally influence the signal! It is generally believed that wires with low losses can propagate further! And even though a matching 22awg wire is manufactured from different materials, there'll nonetheless be differences! Not to say that diverse manufacturers have different standards, and some even label 26awg wires as 22awg for packaging and sales, resulting in choppy marketplace quality!So, please don't touch upon what variety of meters the amplifier would be extended in product reports Precautions for use:About the place the amplifier is decided within the circuit. The amplifier needs to be as close to the light as possible, to not the controller. If you can&;t tell, try and continuously adjust the right position: Add an amplifier the place you believe the signal is attenuated to the weakest, and the sign could be restored to the maximum: Because the signal is comparatively solid when it's near to the controller, it does not make a lot sense to enter the amplifier again. It is sensible to be far-off from the controller, plus the amplifier to increase the signal. 2. When the extension twine is comparatively long:When the cord between 1 and a couple of is comparatively long, similar to more than 15 meters, an amplifier needs to be added cost of 15 meters is only a reference per the community cable of Category 5, If it is a usual LED wire, the gap will grow to be shorter. Reference experience, (for reading applications only!!! FYI!!)With 22AWG cable wire, an amplifier is added every single 2-3 meters,With 20AWG cable wire, add an amplifier every 4-6 meters,The larger the brightness of the lamp, the better the required signal, and the shorter the space that can be extended. Using a Category 5e network cable, an amplifier is added about each 15 meters above information is only approximate, for studying reference only, and those values usually are not absolute!!Because diverse lamps, materials, and environmental affects are different!For example, if the space between 1 and 2 is 15 meters,Then, it is strongly recommended to put the amplifier as near to 2 as possible. If the gap between 1 and a couple of is 20 meters,Then, you might want to put the amplifier on the fifteenth meter (between the 7th and 15th meters, theoretically) above suggests that the gap between the closest LED and the amplifier at either finish isn't greater than 15 meters value will exchange with various factors, and is not absolute along with your actual use process, once you discover that whatever how you expand the ability delivery can't be solved, possibly you need to increase the amplifier. 3. There is also a case when the gap of the controller from the final LED is bigger than a hundred meters, we also recommend including an amplifier. entrance back

•
•
•
•
•
