Descriptions

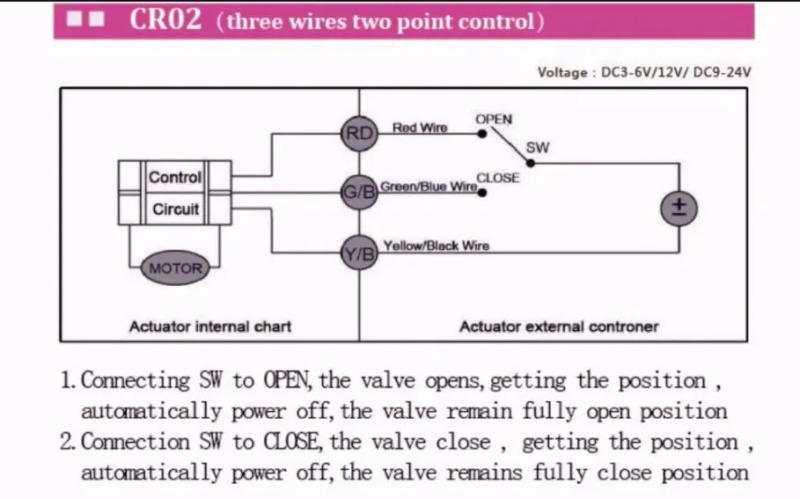

• DN15 1/2" chrome steel Two Way Electric Ball Valve DC5V DC12V DC24V AC220V CR01 CR02 CR03 CR04 CR05 motorized valve for waterDetails:1 Model: CWX-152 Product size: G(BSP) DN15 1/2" 15mm3 Valve material(body/ball/stem): stainless steel4 Working voltage: DC5V DC12V DC24V AC2205 Wiring control mode: CR01 CR02 CR03 CR04 CR056 Working current: <100mA7 Power consumption: <2W8 Working pressure: 1/145Psi/10Bar9 Medium:Water, air, gas, fluid10 Medium temperature: 0-90℃11 Environment temperature: -15-50℃12 Actuator torque: 2 Open/close time: 3sec/5sec14 Working life: 100,000 times15 Protection class: IP6516 Actuator material: ABS Engineering plastic17 Actuator rotation: 90 degree18 Sealing material: EPDM&PTFE19 Cable length: 40cm20 Manual override function: NoFeatures: 1 Smart shape, perform reliably, brass gear, PPO parts, large output torque, long product existence for 100,000 instances 2 Electrical limit and equipment limit design,accurate position, keep away from tools with switch three Multi-angle assembling, easy to install four Float ball structure, no leakage, especially appropriate for heavy pollution conditions 5 Good substitution for solenoid or pneumatic valve 6 High defense class, would be labored in wet circumstances IP65 for:1 IC card meters, warmth energy meters Air-warm valve HVAC and fire works Water equipment, auto-control watersystem, industrial mini-auto equipment, Small kit for automatic control4 Irrigation equipment, consuming water equipment, solar water heaters, washing machines, water heaters, industrial humidifier Solar thermal, under-floor, rain water, irrigation, plumbing service, scorching water heating and solar glycol loop, splendid for off-grid method Domestic water, Irrigation system, cooling/heating system, Low voltage plumbing system7 Multiple voltage and management mode, applicable to quite a lot of events

•
•
•
•
•
