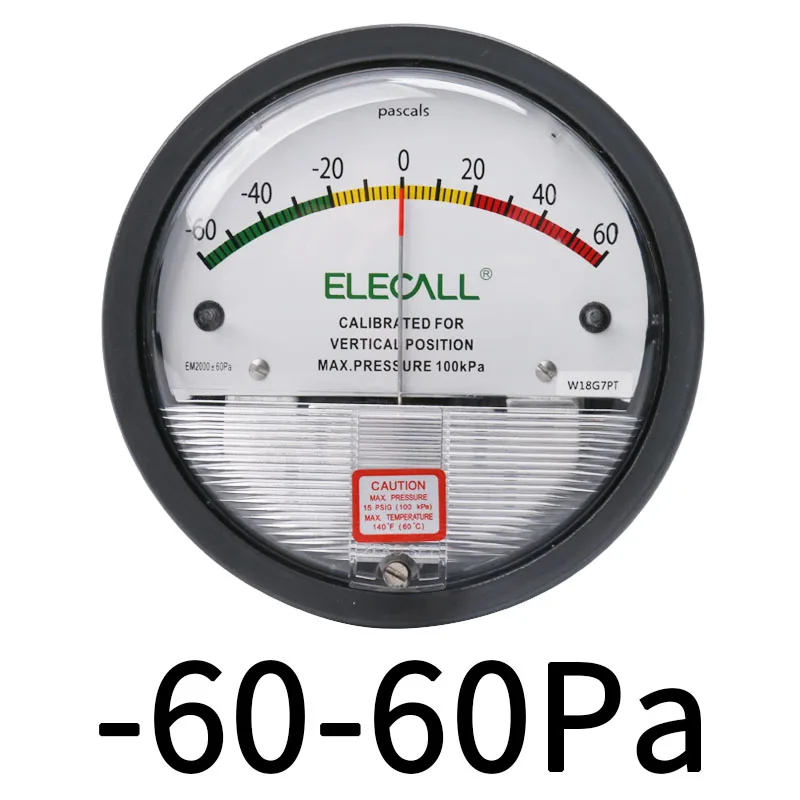

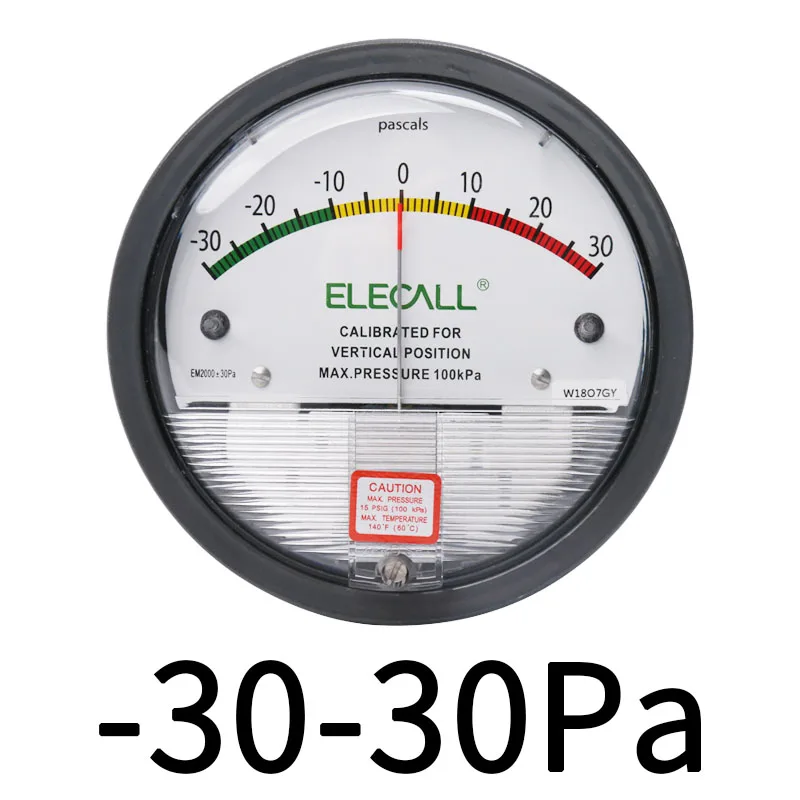

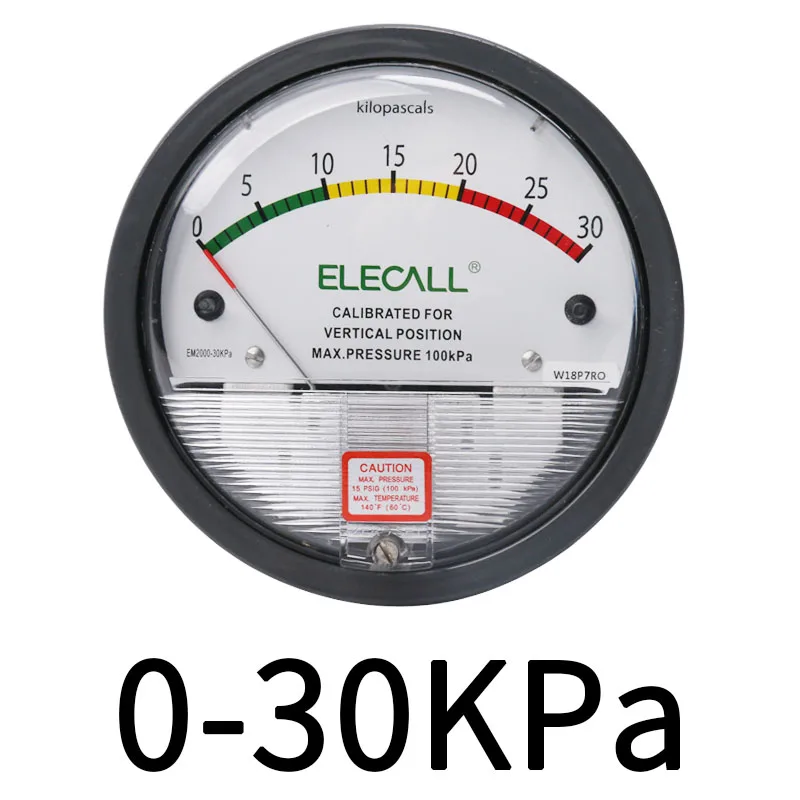

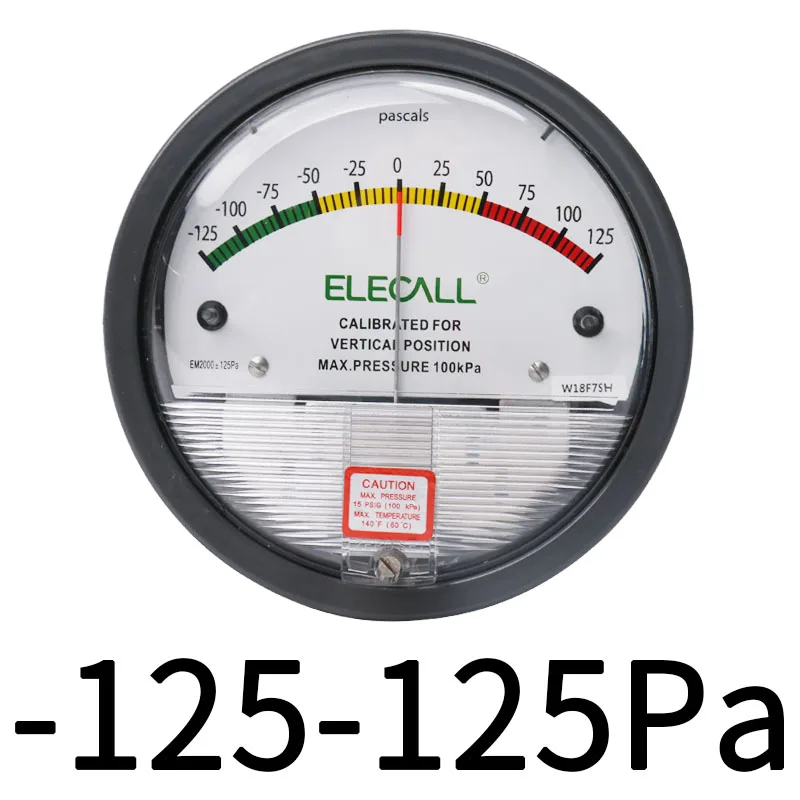

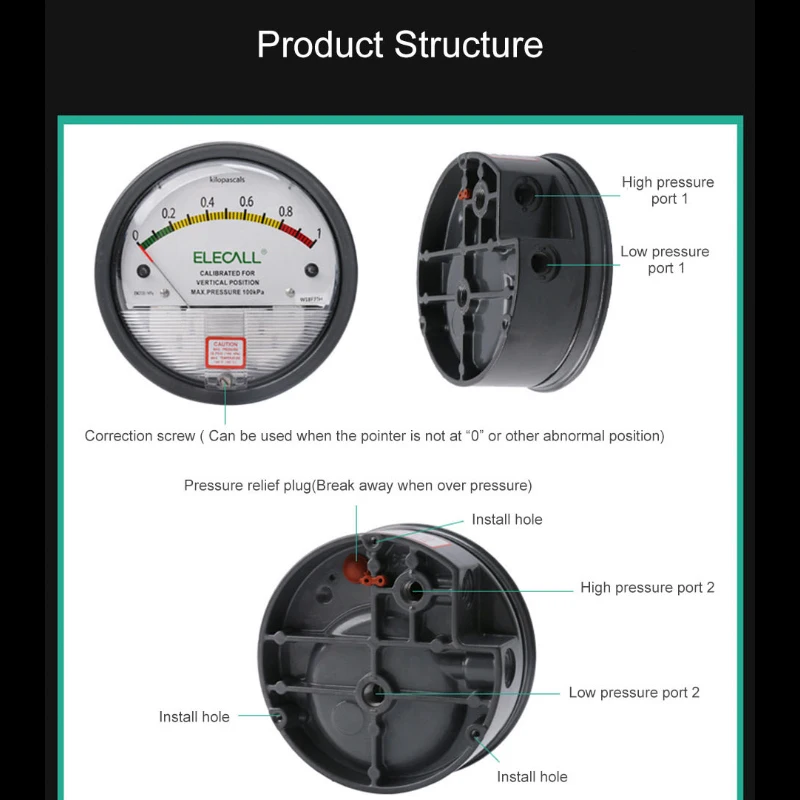

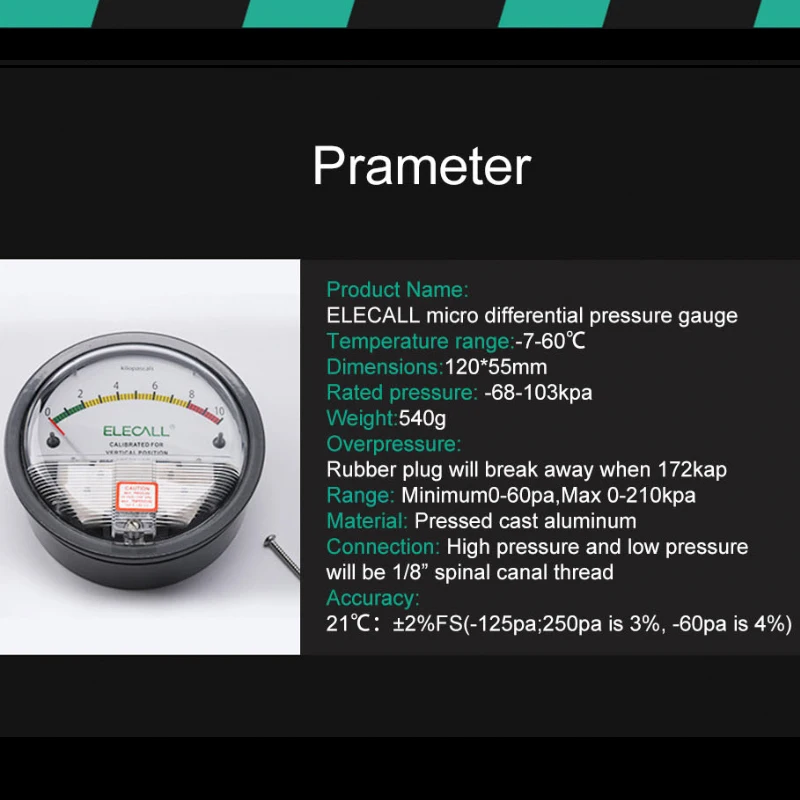

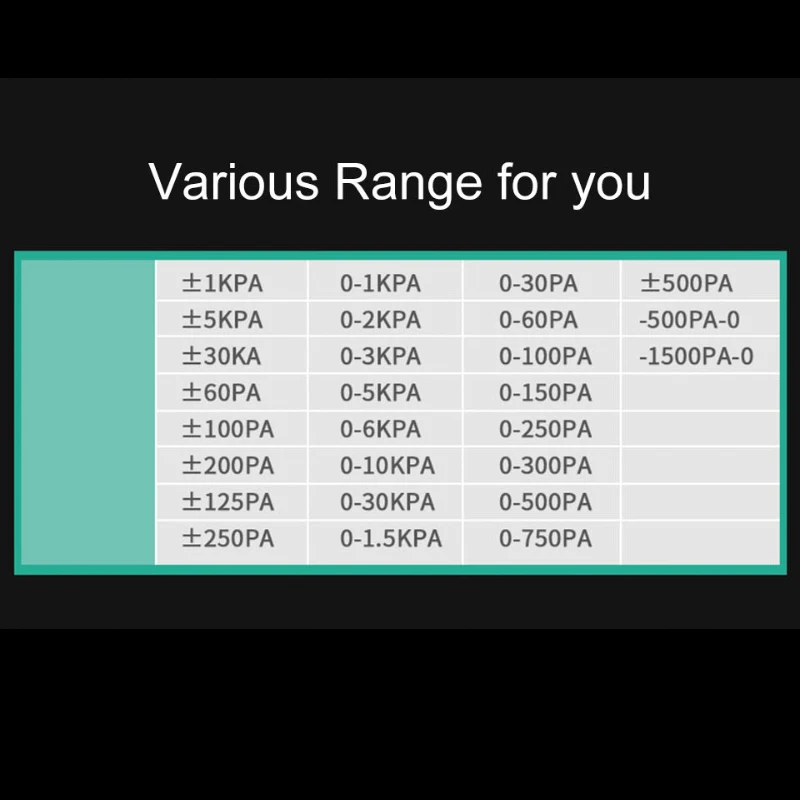

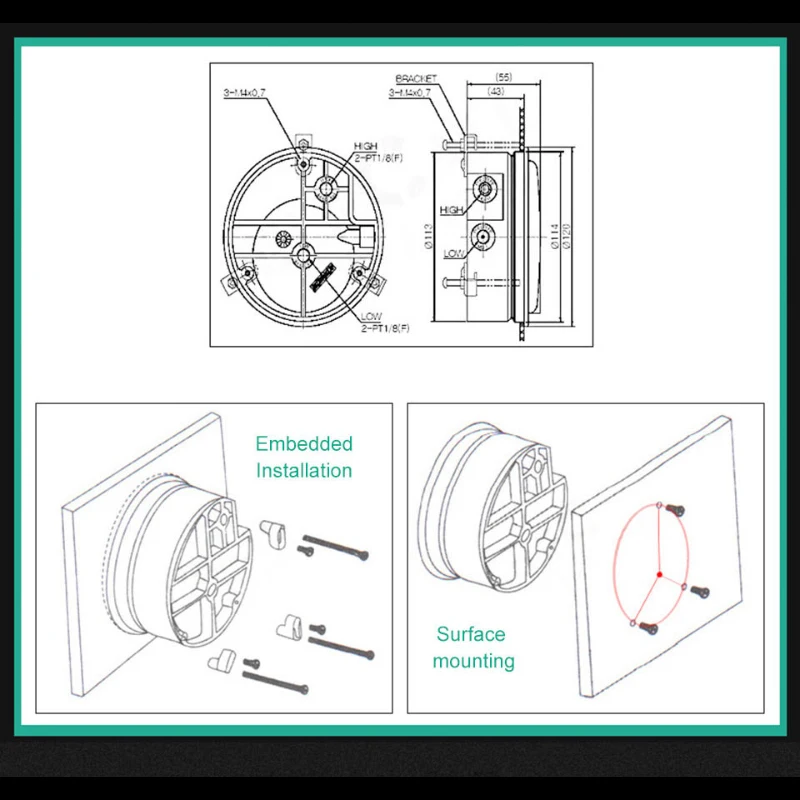

• ELECALL EM2000 -30PA~30KPA Micro Differential Pressure Gauge High Precision Air Pressure Meter Barometer Specification Product Name: ELECALL micro differential strain gauge Temperature range:-7-60° Dimensions:120*55mm Rated pressure: -68-103kpa Weight:540g Overpressure: Rubber plug will break away when 172kap Range: Minimum0-60pa,Max 0-210kpa Material: Pressed forged aluminum Connection: High strain and coffee pressure will be 1/8" spinal canal thread Accuracy: 21°:±2%FS(-125pa;250pa is 3%, -60pa is 4%) Connections: 1/8" feminine NPT high and occasional stress taps, duplicated, one pair aspect and one pair back Features 1 Virtually removing the friction generated via the rotation equipment 2 The inside desk with out filling liquid No inertia, no waft pointer movement 3 Excellent anti-vibration, anti-jitter performance 4 Excellent resistance to strain overload, measurable, positive, unfavorable or differential pressure five and Flexible set up 6 Has a straightforward structure, small size, low energy intake and high precision, compatible for almost all software locations 7 The instrument using a bigger strain via explosion-proof membrane and diaphragm related overvoltage protection Note 1 page photographs is simply for reference, part of a distinction does not influence the user experience, please are aware of it 2 to the difference between various monitors, the picture won't replicate the particular colour of the thing forgive it three Measure wonderful pressure: Connect the pressure source with one of the two high-pressure holes by way of pipe and plug the unconnected high-pressure holes to ventilate one or two low-pressure ventilation holes Measure detrimental pressure Connect the low-pressure source with one of the two low-pressure holes by means of pipe and plug the unconnected high-pressure holes to ventilate one or two high-pressure ventilation holes Connect the better of the 2 strain sources with the decrease of the two low stress sources and plug the unconnected air outlet with a pipe Measure differential strain Connect the strain supply with one of the two high-pressure holes via pipe and plug the unconnected high-pressure holes to ventilate one or two low-pressure air flow holes Include 1 x Differential Pressure Gauge

•
•
•
•
•
