Descriptions

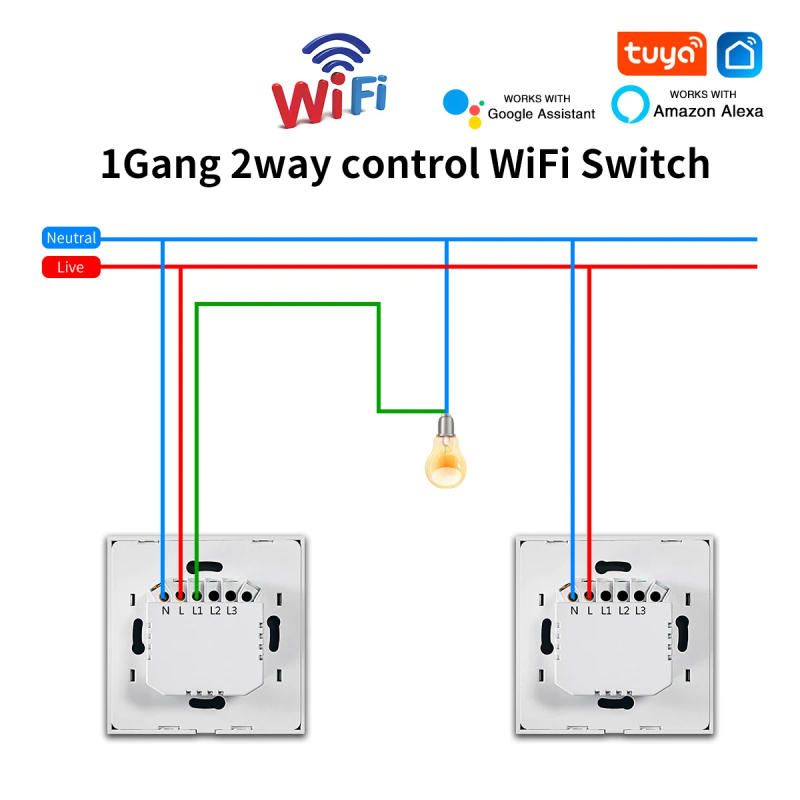

• Product description: 1: Tempered glass panel wifi sensible pass switches 2: Standard: EU Standard 3:Use place: stair switch/bedside change 4:Input voltage:AC100-240V 50/60Hz 5:Power current: 10A 6:Load: Normal lamps:5~600W/Gang LED:5~300W/gang 7:Stanby power: ≤0 8:Relative humidity: 10% ~ 93% 9:Working temperature: -20℃~+55℃ 7:Certification: CE, RoHS,FCC 10:Wifi Standard : 2 802/g/n 11:Application: clever existence 12:Voice Control: Google Home, Amazon Alexa 13:Wiring: Need neutral twine required 14:Led indicator: ON-blue OFF-red 15:Installation Box: Round and Square,install 60mm hole spacing 16,The strength ought to be bring to an end throughout installation/maintenance 17, Each products have the same operate ， you may want anyone of them because the main swap If you want to management your lights from two/three places, you should link them on the cellular app( see under for steps the way to hyperlink them) Package adding : 2 pcs or 3pcs x switches as your choice Note :1gang 2 way, management one lamp from 2 places; 1gang 3way, control one lamp from 3places WIFI switch multi-control wiring diagram: 1 The neutral wire is attached to the &;N&; terminal 2 Live wire is connected to &;L&; terminal three After the installation and wiring, please download the Smart Life or Tuya app to add the machine If you like Multion-control, more switches , just operate by means of repeat steps FAQ Q: Does your Wifi touch sensor mild swap require a neutral wire installed? A: Yes, you must set up the neutral wire Q: Can your Wifi touch light change work with Zigbee or Home Kit? A: Sorry, our goods are at present unavailable Q: Will your Wifi gentle switch work with Smart Life Tuya or Google Alexa? A: Yes, it's going to work with them Q: Do you present 2 way wifi touch mild switch? A: Yes, we offer 2-way wifi contact switch, it really works stably, but you need to purchase a minimum of 2 2-way wifi switches (The utility uses the multi-control hyperlink function) Q: Does your Wifi touch gentle swap have a backlight? A: After the connection is successful, the red backlight will be on Let you obviously note our touch switches in the dark Q: Can our switches be fixed vertically or horizontally on 86mm/86mm glass panels? A: Yes, we are able to mount it in numerous ways, but you will see small holes (Open the small gap of the glass cover)

•
•
•
•
•
