Descriptions

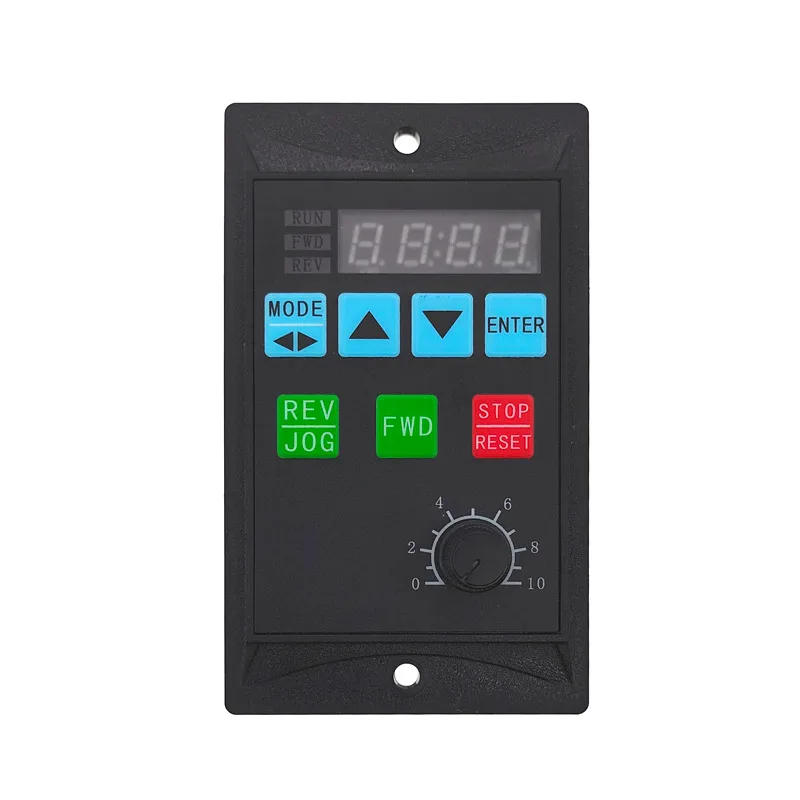

• Note:These mini frequency converters aren't commended to operate at full load, for example, 1500W frequency converters must be operated under 1500W as a lot as possible, otherwise it could trigger immoderate temperature Electric Inverter User Manual Chapter I Overview This manual is meant for installation, commissioning, maintenance and use via the consumer ------------------------------------------------------------------------------------------------------------------------ 1 inspection Remove the Inverter from the field and confirm that: Whether the product appearance is damaged or deformed: Whether the ingredients are broken or fall off: Observe the ranking of the nameplate on the chassis aspect and verify whether or not it is according to your order requirements: Check whether or not the goods indexed in the packing list field are whole If there's any doubt concerning the product damage, please contact the supplier instantly ------------------------------------------------------------------------------------------------------------------------ 2 read it closely earlier than use and hold it correctly ------------------------------------------------------------------------------------------------------------------------ 3 surroundings Power supply : Single input AC220V±40% Temperature: -10℃- 50℃ Humidity: 0% - 65% ------------------------------------------------------------------------------------------------------------------------ 4 When wiring, the ability delivery ought to be became off Make sure that AC strength is never connected to the motor output ------------------------------------------------------------------------------------------------------------------------ five is not any condensation, dirt and corrosive liquid/gas on the website ------------------------------------------------------------------------------------------------------------------------ 6 installation role will probably be firm and unfastened from vibration ------------------------------------------------------------------------------------------------------------------------ 7 the general length is small, please manage the twine ends properly ------------------------------------------------------------------------------------------------------------------------ 8 the ambient temperature is high, please depart sufficient heat dissipation space ------------------------------------------------------------------------------------------------------------------------ Chapter II Installation and wiring Opening size: 52*80mm*130mm

•
•
•
•
•
