Descriptions

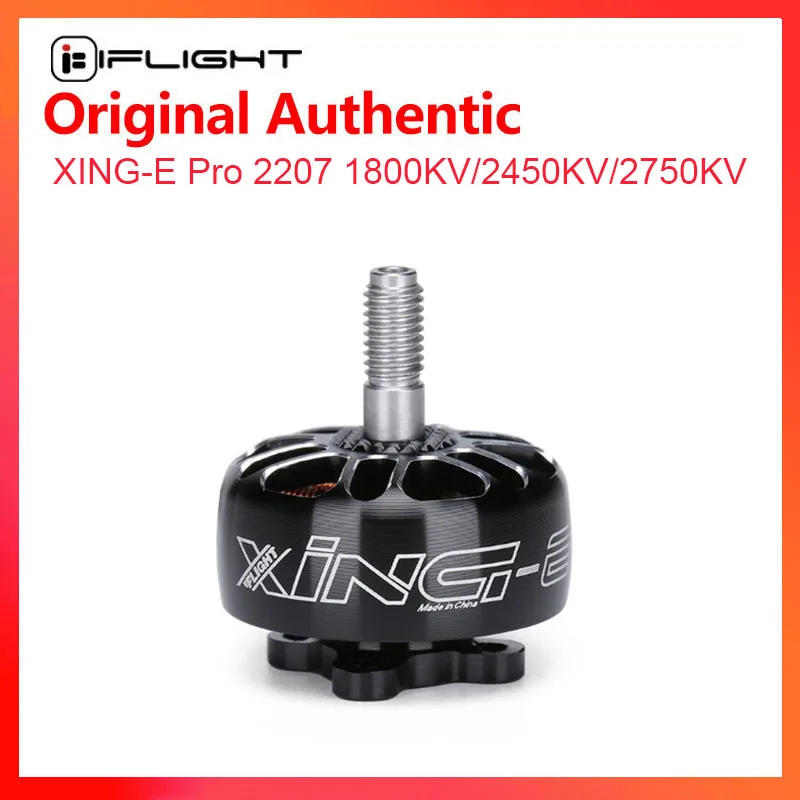

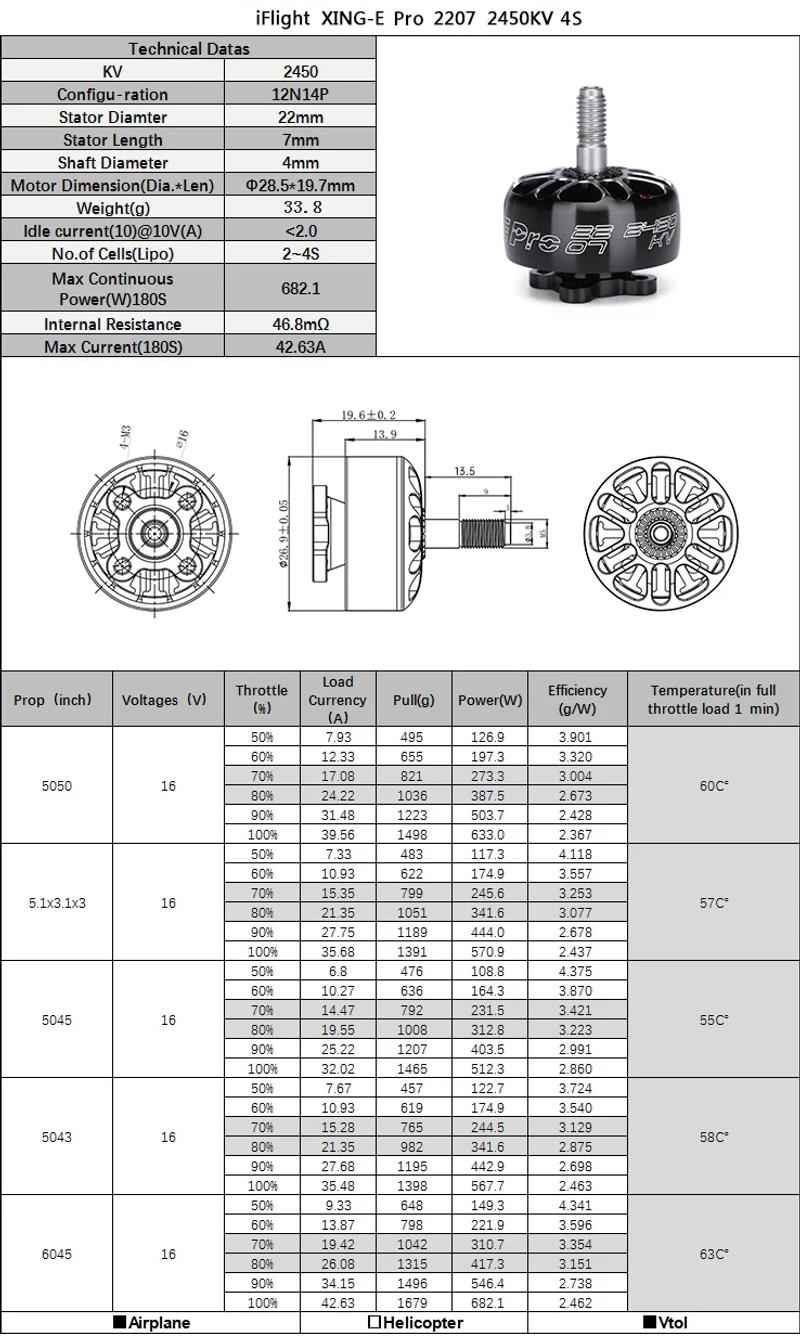

• iFlight XING-E Pro 2207 1800KV 2450KV 2750KV Brushless Motor 2~6S Lipo 5mm Hollow Shaft for 5~6inch Propeller Freestyle Drones Description： XING-E series are very stable and robust FPV motors for FPV racing, tremendous cost desire with well-known XING functionality on quality, the XING-E collection reasonably priced motors that are solid and durable This 2207 sized motor features a High-strength 4mm metal hollow shaft, Single strand windings for performance, M3 shaft screw, and bigger 9x4x4mm NSK bearings Features High-strength 4mm Steel shaft N52H High-temperature magnets, NSK bearings 16x16mm gap pattern Single strand copper winding Hex bolt shaft set screw Specifications Configuration:12N14P Stator Diameter:22mm Magnets: N52SH Curved Bearing Size: 9x4x4 Shaft Diameter: 4mm / Steel Base Mounting Pattern: 16x16mm M3 Thread Motor Dimension: 28 Weight: 33 (150mm wires) Idle Current @12 (Io):1 A Cells (LiPo): 2-6S Max Burst Current <10s: 35 Max Power (W) 60s: 845W Internal Resistance (Rm):81Ω Motor Wire Length:150mm / 20AWG Package included: 1pc x MOTOR XING-E Pro 2207 motor or 4pcs x MOTOR XING-E Pro 2207 motor

•
•
•
•
•
