Descriptions

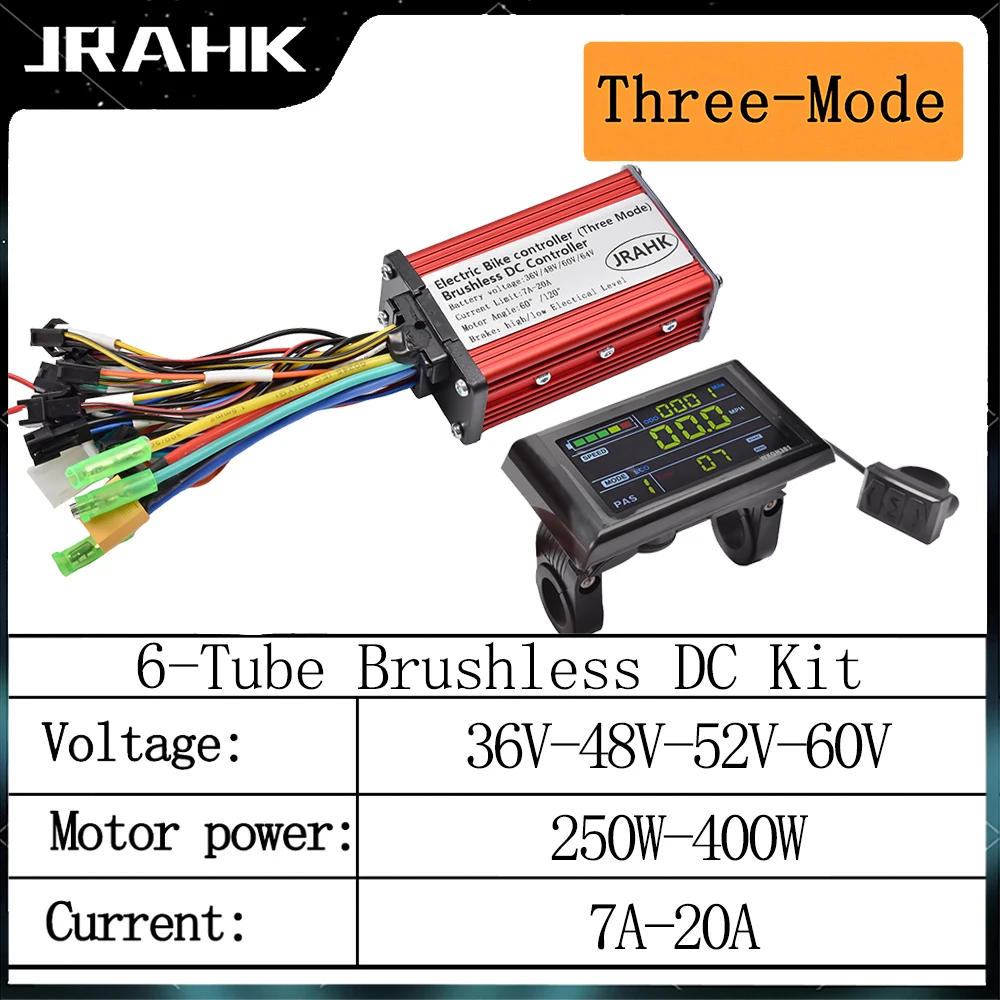

• What is a Three–mode controller? Quiet start(Except for particular circumstances) strong power and tool saving The three–mode controller is a sine wave controller It can operate in three modes, sine wave mode, sq. wave mode, and no hall mode (that is, it may be used with out a hall sensor) The mode can't be selected, the default is sine wave mode When the hall sensor is damaged it's going to mechanically switch to sq. wave mode Runs no–Hall mode when no Hall sensors are connected Suitable for in–wheel motors motor, and so on Tips:Applicable to quite a lot of motors, yet only in–wheel motors with Hall sensors can use sine wave mode running different motors, it's going to mechanically change to square wave mode or no Hall mode 【Line description】1 power2 Motor part wire3 Tail mild power4 Intelligent studying line6 Throttle7 Electronic brake (E–ABS)9 Hall sensor10 High point braking12 Low point braking13 Brake gentle energy 【Error code】 E06: Battery undervoltage E07: Motor failure E08: Throttle failure E09: Controller failure E10: Communication reception failure E11: Communication sending failure E12: BMS communique failure E13: Headlight failure

•
•
•
•
•
