Descriptions

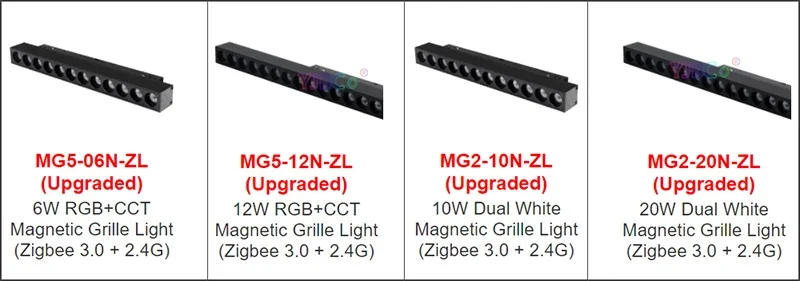

• RGB+CCT Product Description: • Powered by way of means of rail, secure magnetism • Product stick with zigbee three standard protocol • Zigbee Contrl distance: 50m (open area) • Compatible with Mi-Light / MiBoxer 2 series remote • 2 RF Remote Control Distance: 25m • 16 Millions of colours to come to a call • Brightness and colour temperature adjustable Product Parameters: Product Name: 6W RGB+CCT Magnetic Grille Light (Zigbee three + 2) Model No.: MG5-06N-ZL (Upgraded) Working Voltage: 48V⎓ Power: 6W Working Temperature: -10~40°C Color Temperature: 2700K~6500K CRI: >80 Luminous Flux: 440LM Luminous Efficiency: 65LM/W Beam Angle: 24° Wireless Technology: Zigbee 802 Zigbee Wireless Frequency: 2 Zigbee Control Distance: 50m (open area) 2 RF Remote Control Distance: 25m Product Name: 12W RGB+CCT Magnetic Grille Light (Zigbee three + 2) Model No.: MG5-12N-ZL (Upgraded) Working Voltage: 48V⎓ Power: 12W Working Temperature: -10~40°C Color Temperature: 2700K~6500K CRI: >80 Luminous Flux: 900LM Luminous Efficiency: 75LM/W Beam Angle: 24° Wireless Technology: Zigbee 802 Zigbee Wireless Frequency: 2 Zigbee Control Distance: 50m (open area) 2 RF Remote Control Distance: 25m Dual White Product Description: • Powered via approach of rail, solid magnetism • Product stick to zigbee three traditional protocol • Zigbee Contrl distance: 50m (open area) • Compatible with Mi-Light / MiBoxer 2 collection remote • 2 RF Remote Control Distance: 25m • Color temperature and brightness adjustable Product Parameters: Product Name: 10W Dual White Magnetic Grille Light (Zigbee three + 2) Model No.: MG2-10N-ZL (Upgraded) Working Voltage: 48V⎓ Power: 10W Working Temperature: -10~40°C Color Temperature: 2700K~6500K CRI: >80 Luminous Flux: 800LM Luminous Efficiency: 80LM/W Beam Angle: 24° Wireless Technology: Zigbee 802 Zigbee Wireless Frequency: 2 Zigbee Control Distance: 50m (open area) 2 RF Remote Control Distance: 25m Product Name: 20W Dual White Magnetic Grille Light (Zigbee 3 + 2) Model No.: MG2-20N-ZL (Upgraded) Working Voltage: 48V⎓ Power: 20W Working Temperature: -10~40°C Color Temperature: 2700K~6500K CRI: >80 Luminous Flux: 1530LM Luminous Efficiency: 75LM/W Beam Angle: 24° Wireless Technology: Zigbee 802 Zigbee Wireless Frequency: 2 Zigbee Control Distance: 50m (open area) 2 RF Remote Control Distance: 25m Package including:1 piece* 6W / 12W / 10W / 20W RGB+CCT/ Dual White Magnetic Grille Light (Zigbee three + 2) (As you choose)

•
•
•
•
•
