Descriptions

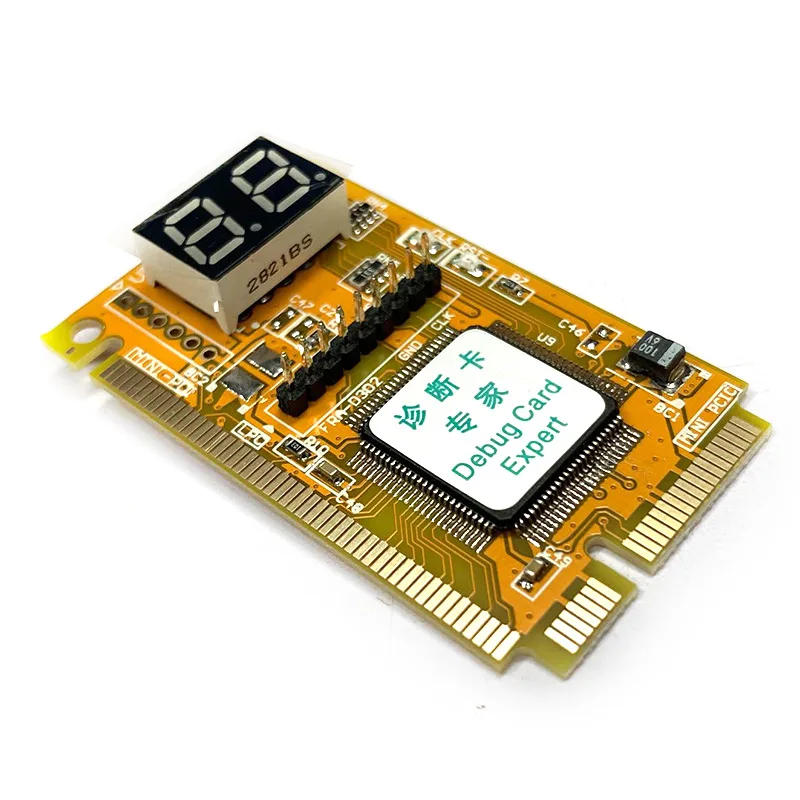

• Mini PCI PCI-E Debug Card Expert Fault Diagnostic 2-Digit Laptop Computer Motherboard Post Tester PCI Express PC Analysis Card Please Notice:1 This Diagnostic Card solely paintings with laptop, need to insert directly in the laptop computer Only join one port of Mini PCI port,Mini PCI-E port , LPC Bus interface port , little need to connect all these ports This Diagnostic Card does not paintings with desktop computer, or can not insert with other convert card and then join desktop laptop If you desire to order the Diagnostic Card for desktop pc ,please order within the link: Feature ： 1 The adapter has 2 capacitance, power stable, crimson gentle display, solver code error 2 The adapter wok with PIN-8, PIN-10, PIN-12, PIN-14, PIN-16, PIN-17, PIN-19 for Mini PCI-E Port 3 The adapter work with LPC, the definition in turn from left to right :PIN1-LFRAME, PIN2-LAD3, PIN3-LAD2, PIN4-LAD1, PIN5-LAD0, PIN6-GND,PIN7-LRESET, PIN8-LCLK, PIN9-3 Need to apply flying line for LPC for IBM X60 Laptop motherboard, LPC port changed into stored in U39 slot, the definition is A2->LRESET, A3->LFRAME, A5->LCLK, A9->LAD3, A10->LAD2, A11->LAD1, A12->LAD0 for IBM T6 R6 motherboard, LPC port was stored in J26 Insert Pin, the definition is A1->LCLK, A3->LFRAME, B2->LRESET, B7->LAD3, A7->LAD2,B6->LAD1, A6->LAD0 for the laptop motherboard with out flying line, deserve to join the flying line with the pin of motherboard of the laptop The regular approach of flying line for chip :PC97551,PC87541, PC87591，H8S/2149，W83L950D, TCPA This laptop computer diagnostic card helps Mini PCI, Mini PCI-E, and LPC bus interfaces When the diagnostic card is working, only 1 interface should be connected, and the remaining two interfaces do not need to be linked This diagnostic card is handy to apply and has nice stability, making it an ideal tool for laptop computer maintenance (Technical merchandise require a definite level of knowing and hands-on ability, and the products were tested before shipment)

•
•
•
•
•
