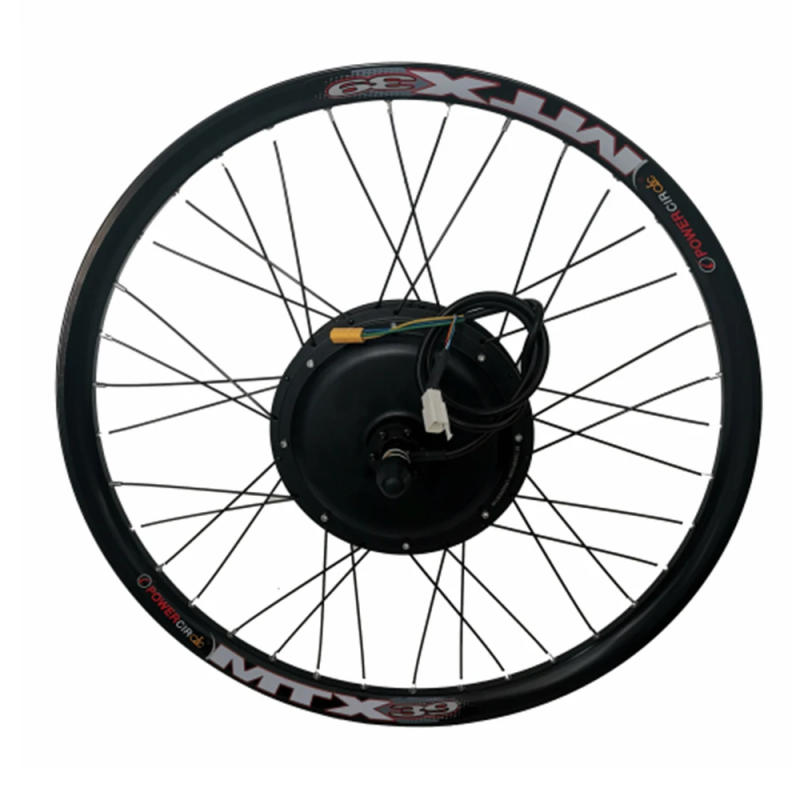

• Buying our merchandise in this web page gets a matching Freewheel for free! we've 20" 24" 26" 27" 28" 29" 700C length for you to decide Package Content 1x 2000w/3000w ebike motor wheel （MTX39 rim width is 39mm） 1x Freewheel ( 3000w is single speed, 2000w is 7 speed) about section connectors, 3000w is ring connector, 2000w is mt60 connector 2000w Motor Specification:1 Motor Type: BLDC Hub Motor with Permanent Magnet2 Motor design: Double axle out3 Spoke hole: three x 36pcs4 Matching Rim:20inch-29inch5 Rated Power:2000W6 Peak Power:4000W7 Rated Voltage: 48V/72V(Can be optional)8 Speed: 50km/h(48v voltage),70km/h(72v voltage)9 Max No-load RPM:700RPM10 Max Torque:70N Max Efficiency: 88%12 Brake type: Disc brake13 Rear Fork width for installation: 135mm14 Winding Core material: Steel15 Cross Section of Phase wire: 6 mm216 Hall sensor phasing angle: a hundred and twenty degree17 Max Working Temperature: 70 degree, Peak one hundred twenty degree18 Waterproof Grade: IP54 3000w Motor Specification:1 Motor Type: BLDC Hub Motor with Permanent Magnet2 Motor design: Double axle out3 Spoke hole: 3 x 36pcs4 Matching Rim:20inch-29inch5 Rated Power:3000W6 Peak Power:6000W7 Rated Voltage: 48V/72V(Can be optional)8 Speed: 70km/h(48v voltage),90km/h(72v voltage)9 Max No-load RPM:960RPM10 Max Torque:100N Max Efficiency: 88%12 Brake type: Disc brake13 Rear Fork width for installation: 135mm14 Winding Core material: Steel15 Cross Section of Phase wire: 6 mm216 Hall sensor phasing angle: one hundred twenty degree17 Max Working Temperature: 70 degree, Peak a hundred and twenty degree18 Waterproof Grade: IP54

•
•
•
•
•
