Descriptions

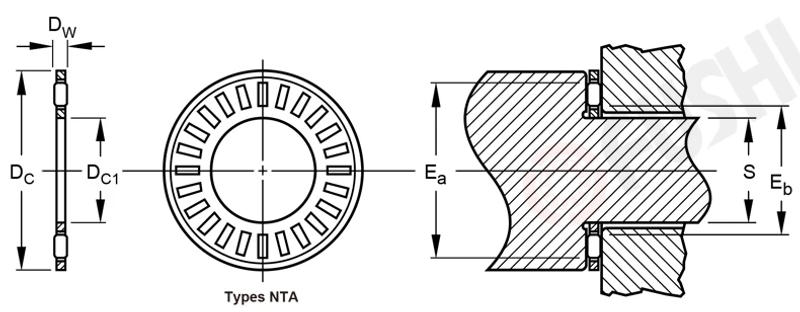

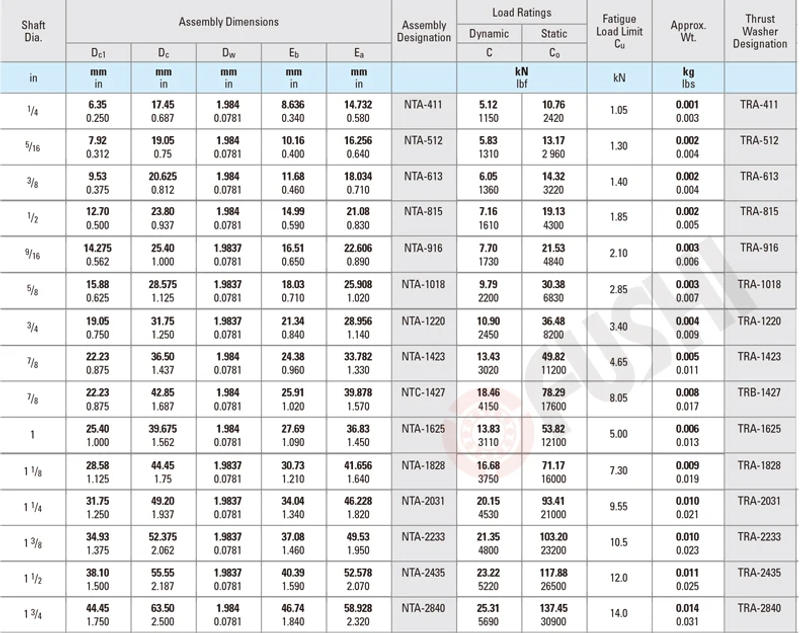

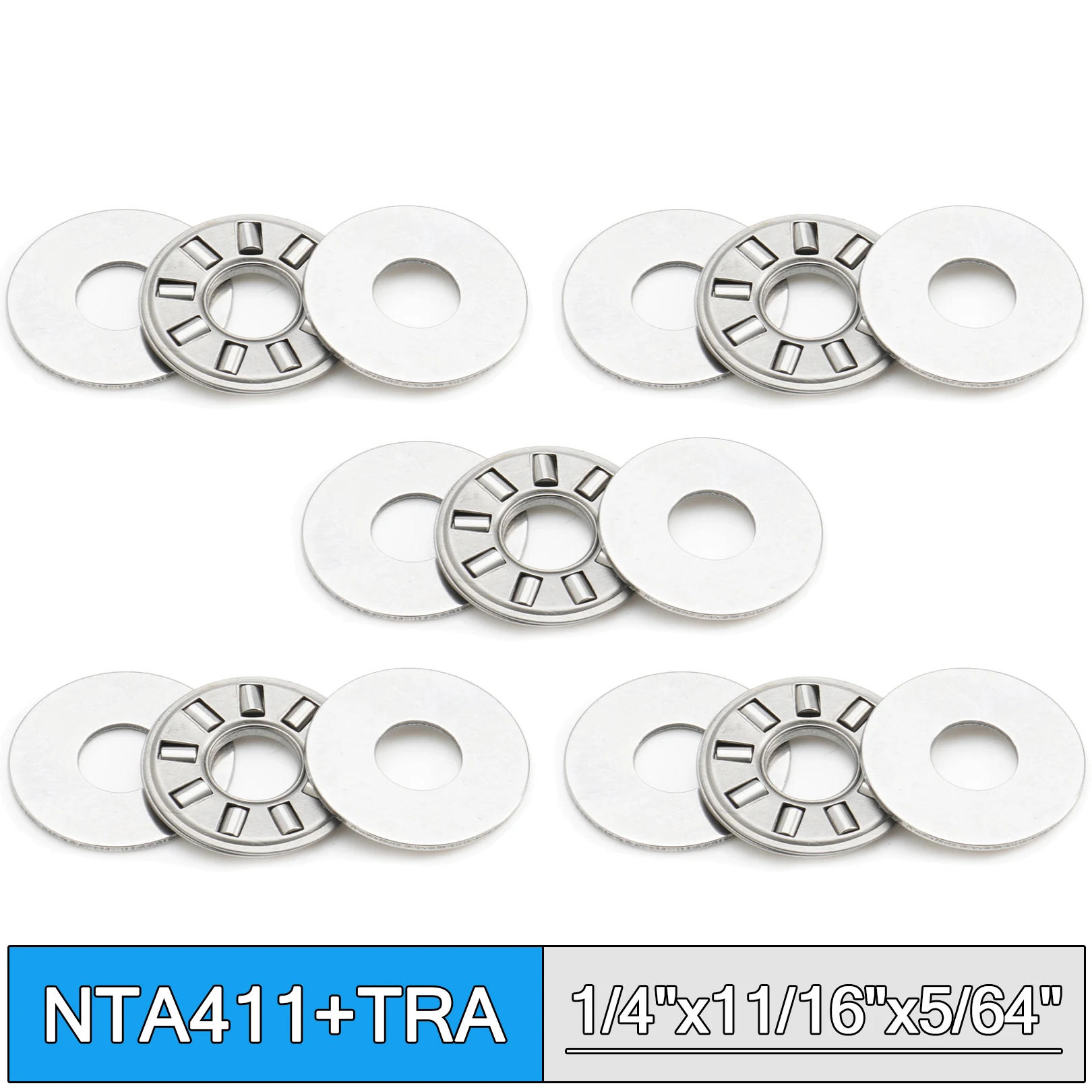

• INCH THRUST BEARING NTA SERIES Overview: FUSHI Thrust needle curler and cage assemblies are enhances of small diameter needle rollers, arranged in a spoke-like configuration Needle rollers are equally spaced by means of means of a cage, its web section separates the rollers and provides steerage to maintain them tracking in an orbital path The purpose of those assemblies is to transmit a thrust load between two relatively rotating objects whereas greatly reducing friction Thrust needle curler and cage assemblies can also be unitized with lipped washers to serve as raceway surfaces for the needle rollers Washers can be offered separately or can be mechanically unitized to the thrust needle roller and cage assemblies for ease of handling Features: One-way fool-proof assembly features, anti-rotation locking elements and lubrication move improvements Benefits: High-speed functionality and application flexibility TECHNICAL SPECS Inch Thrust Needle Roller Bearing NTA Series, Structure A Set Of Thrust Bearing Containing Two Washers Model: NTA411 + TRA411 Assembly Dimensions (Metric): 6 x 17 x 1 Shaft Dia (Inch): 1/4 Inner Dimension: zero inch Outer Dimension: 0 inch Width: 0 inch Weight: 3 g Qty: 1 Lot = five PCS DIMENSIONS LIST

•
•
•
•
