Descriptions

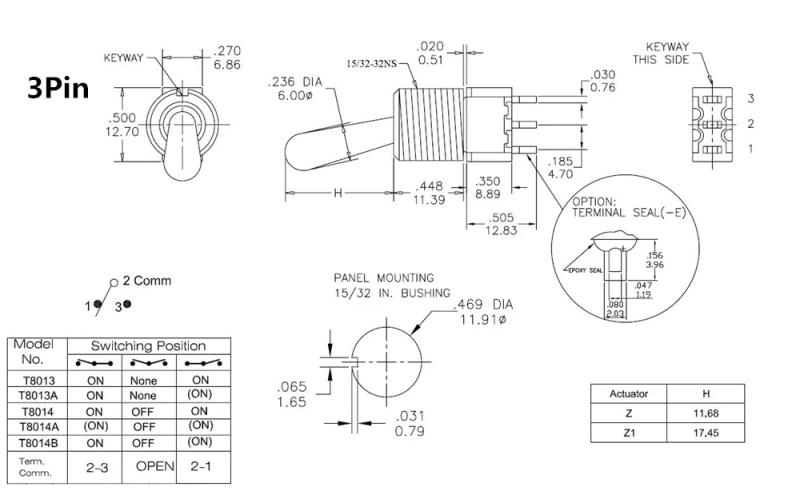

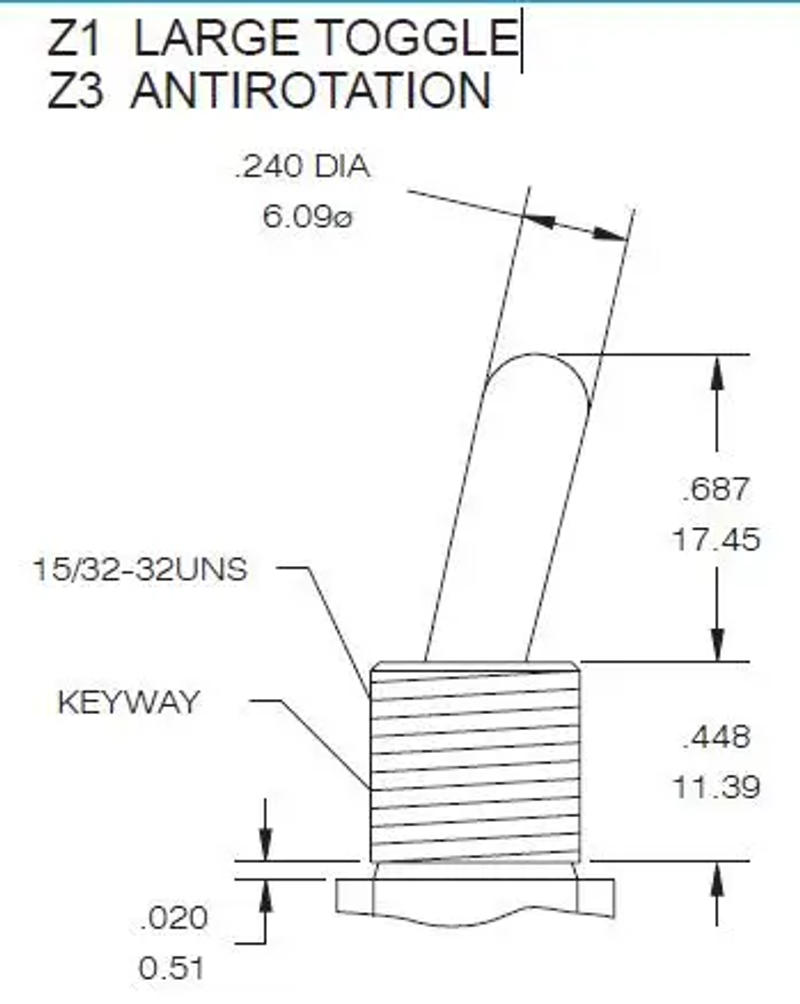

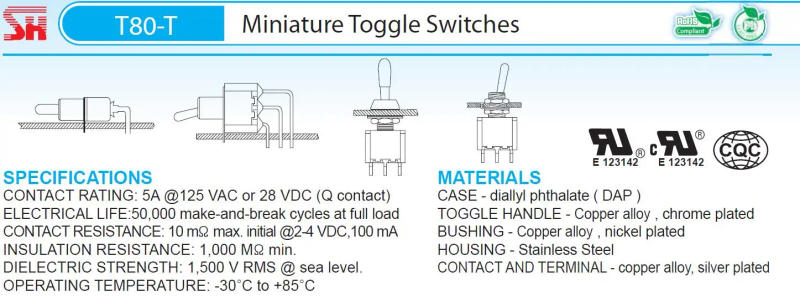

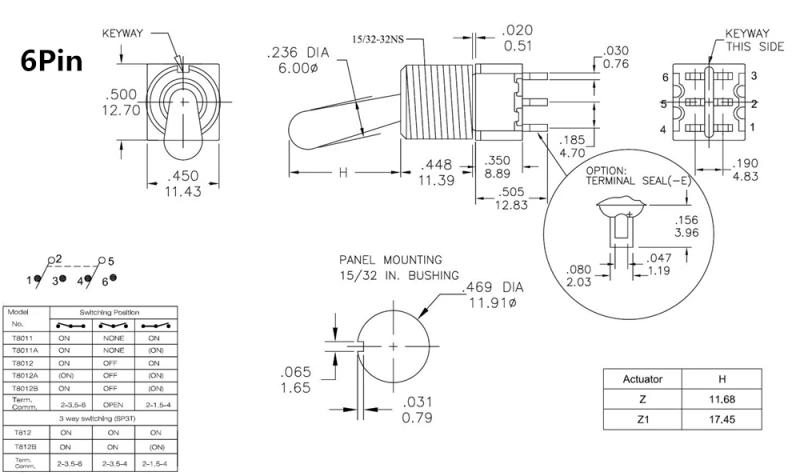

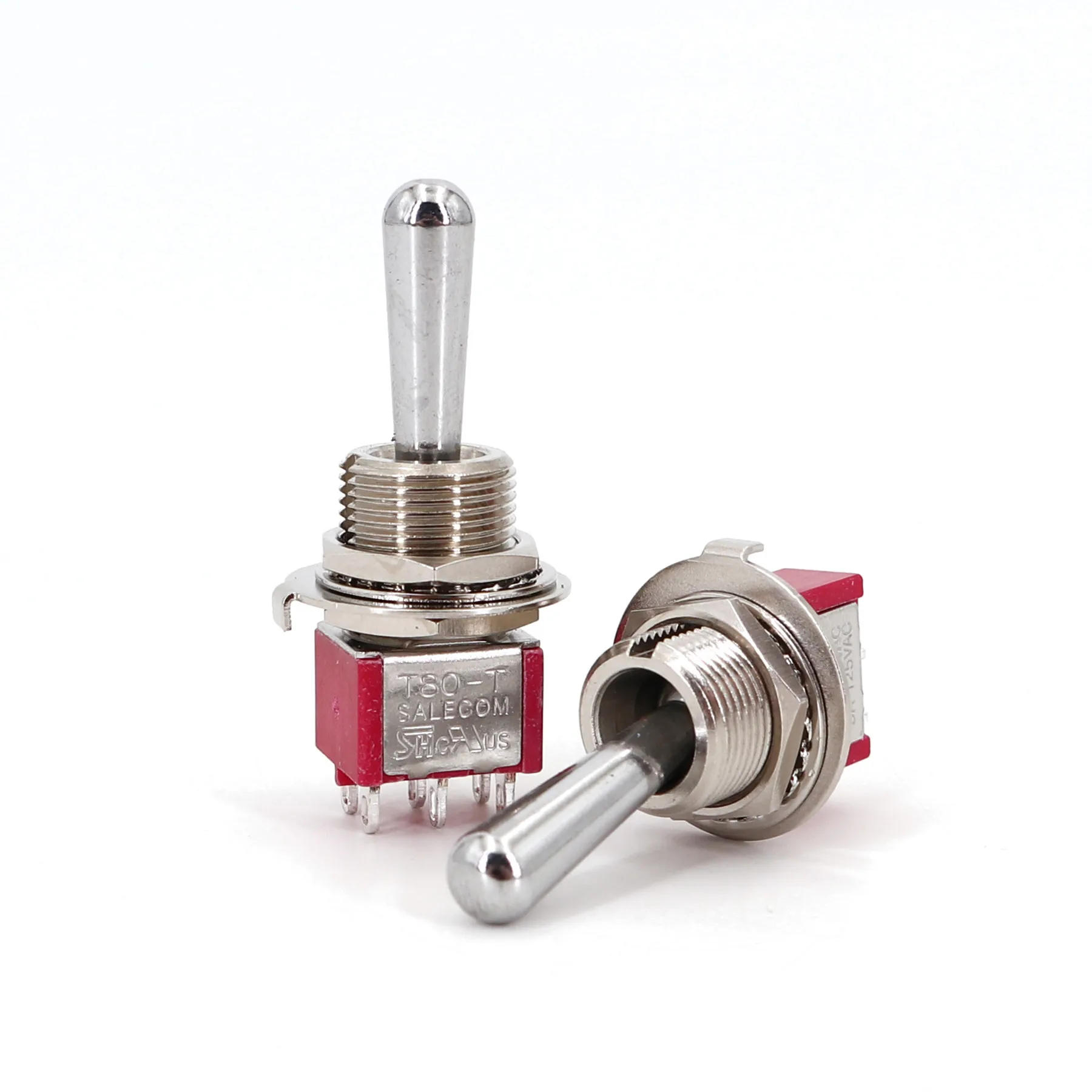

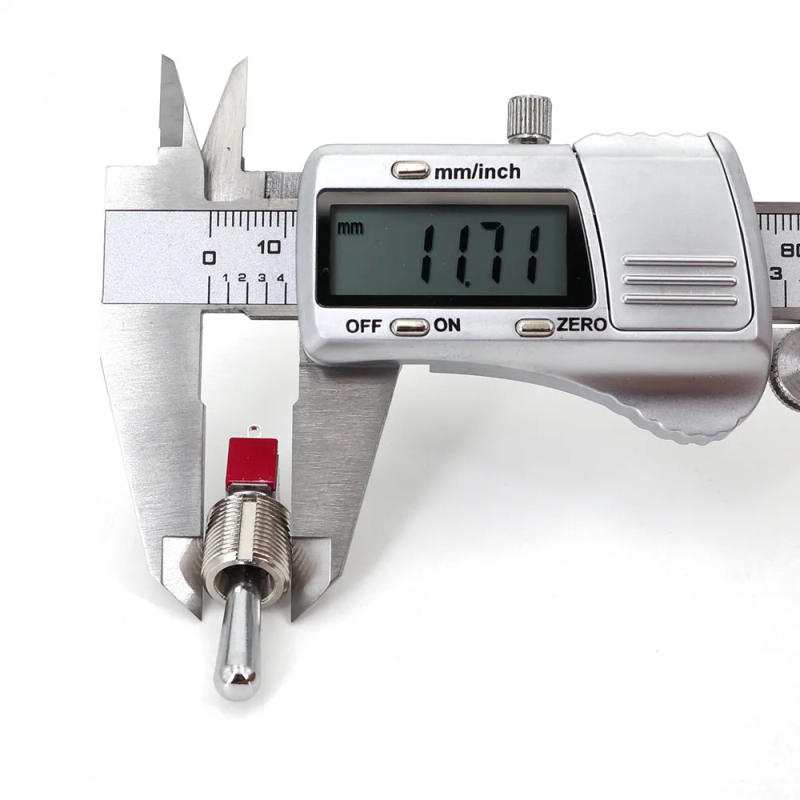

• Feature Model: T80-T Large Long Handle Miniature Toggle Switch Mounting Diameter: 15/32 Inch (about 12mm) Handle Length: 17 Handle Max Diameter: 6mm Contact Rating: 5A @125 VAC or 28 VDC Electrical Life: 50,000 make and wreck cycles at complete load Contact Resistance: 10 mΩ max initial @2-4 VDC,100 mA Insulation Resistance: 1,000 MΩ min Dielectric Strength: 1,500 V RMS @ sea level Operating Temperature: -30°C to 85°C

•
•
•
•
•
