Descriptions

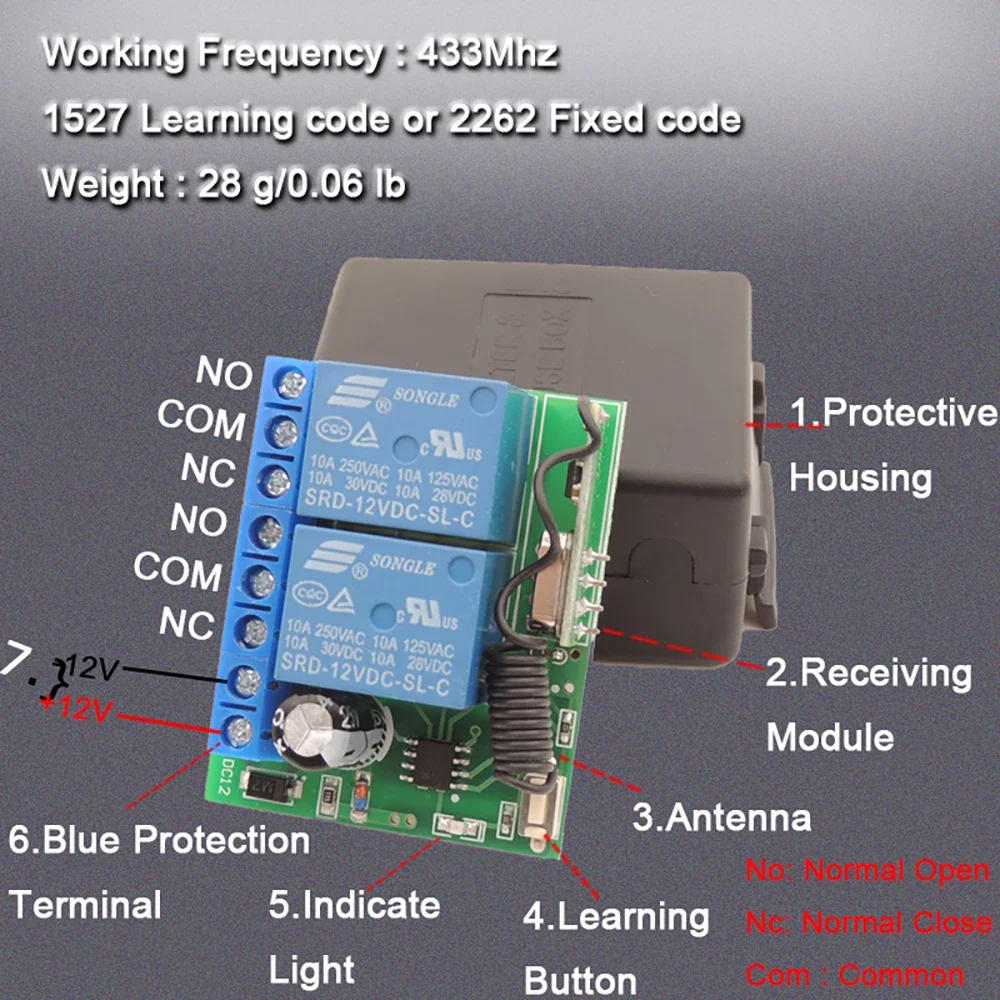

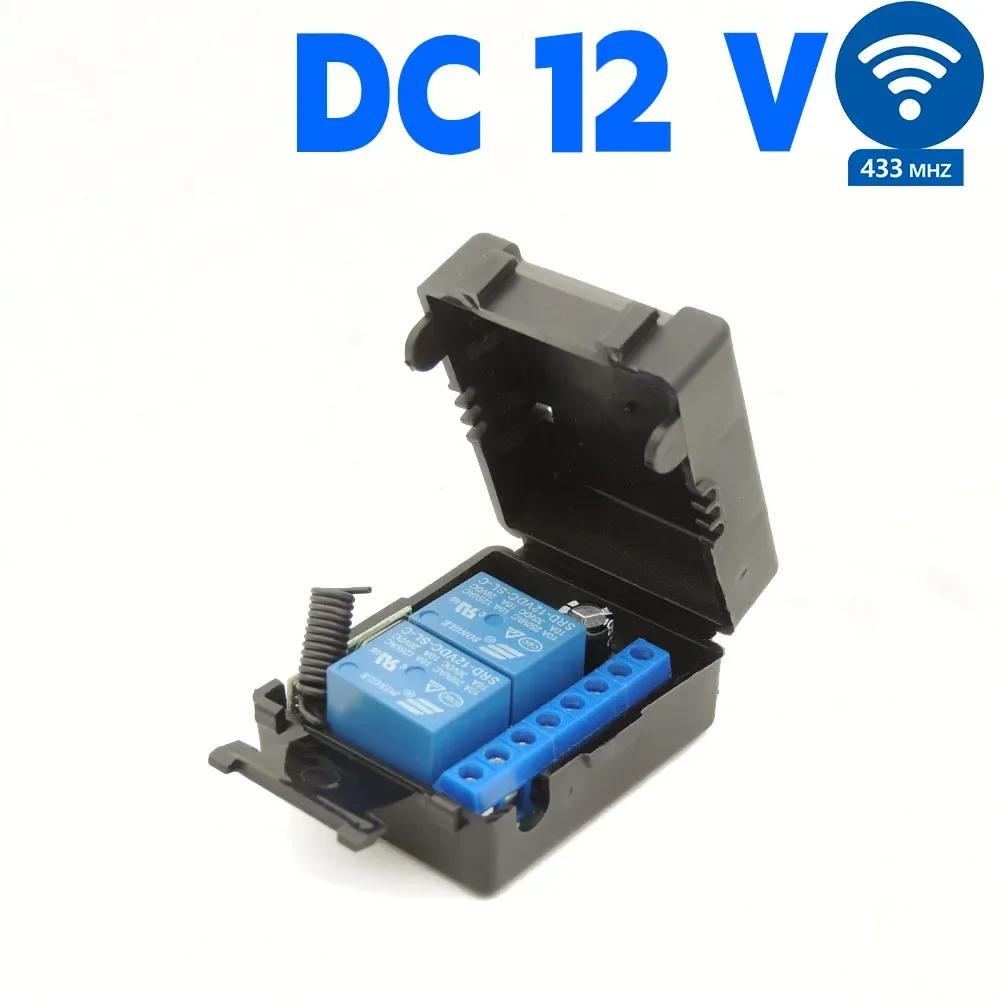

• About this product 1 RF products set goals to make your machine be controlled wirelessly and remotely For example, you need to use it to control lighting fixtures / motors / Bulbs and many others We have a video on product page, you possibly can take a glance 2 enter voltage should be DC 12V only, and the output voltage could be 1-250V three is dry touch receiver So if your system is DC 12V too, you should soar twine from enter port If your machine is AC type, you must connect with more strength can see varied wiring diagrams under 4 receiver has 2 channels It can control two lights on / off or a motor ahead and opposite can be used in lots of places Receiver parameter Input : DC 12V Output : 1-250 V Size: 46*38*17 mm Frequency: 433 MHz Mode: Momentary / Toggle / Latched / Mix Code: 1527 learning code Remote parameter Size: 60*30 mm Frequency: 433 MHz Battery: 1*CR2032 / 2*CR2016 (Include) Color: Black Code: 1527 studying code Range: about 20-30m in open area Wide usage You can use it to regulate lighting / garage / door / diy Remote control devices, about 20-50m range, very comfort Receiver details NO=Normal Open,NC=Normal Close,COM=Common port 1 Housing: Protect components from damage throughout delivery and using 2 Module: Receive signal from transmitter 3: Extend receiving distance four Button: Press learing button to set up mode 5: Light when linked with strength 6 Protection Terminal: High voltage defense 7+12 -12V: Power port Wiring diagram If your device is 1-250v, it is best to connect to a further power If you device is DC 6-30V, you might soar twine Work in 4 modes Momentary Mode: Press and hold "A" button, 1st relay will work; Release A button, this relay will stop; Press and preserve "B" button, 2d relay will work; Release B button, this relay will stop; Toggle Mode: Press "A" button, 1st relay will work;Press "A" button again, this relay will stop; Press "B" button, 2nd relay will work;Press "B" button again, this relay will stop; Latched mode: Press "A" button, 1st relay will work; Press "B" button, 2d relay will work,at a similar time, 1st relay will give up What&;s more This change additionally has a mix mode , the first channel will work in momentary mode, the 2d channel will paintings in Toggle mode How to establish in these modes Momentary Mode: 1 Press learning button on the receiver 1 time; 2 Press "A" button 1 time, press "B" button 1 time, be successful Toggle Mode: 1 Press studying button at the receiver 2 times; 2 Press "A" button 1 time, press "B" button 1 time, succeed Latched mode: 1 Press studying button on the receiver 3 times; 2 Press "A" button 1 time, press "B" button 1 time, be successful Mix mode: 1 Press learning button on the receiver four times; 2 Press "A" button 1 time, press "B" button 1 time, be triumphant Multi use with a 4 buttons distant A can management one receiver in several modes example, you would set up AB button in momentary mode, CD button in toggle mode; B also can control two receivers on the identical time Product size Questions and Answers 1 I use this module to regulate my mild ? Yes, needless to say It can management DC / AC lighting fixtures 2 the flexibility off and out of the blue comes again,does the lamp/device light automaticly? No gadget solely works when you pressed the change back merchandise are designed for saving calories 3 this module have wifi operate ? No sir,it is RF 433mhz solely We even have ewelink wifi type, you possibly can touch with us 4 you have an entire sales price? Yes,please touch with us will give you the superb price *If you do not understand clearly Please send us a message to let us know We will do our greatest to carrier each of our prospects Enjoy your shopping!* *We have our personal manufacturing unit tell us if in case you have some OEM projects are keen to have a cooperation with you*

•
•
•
•
•
