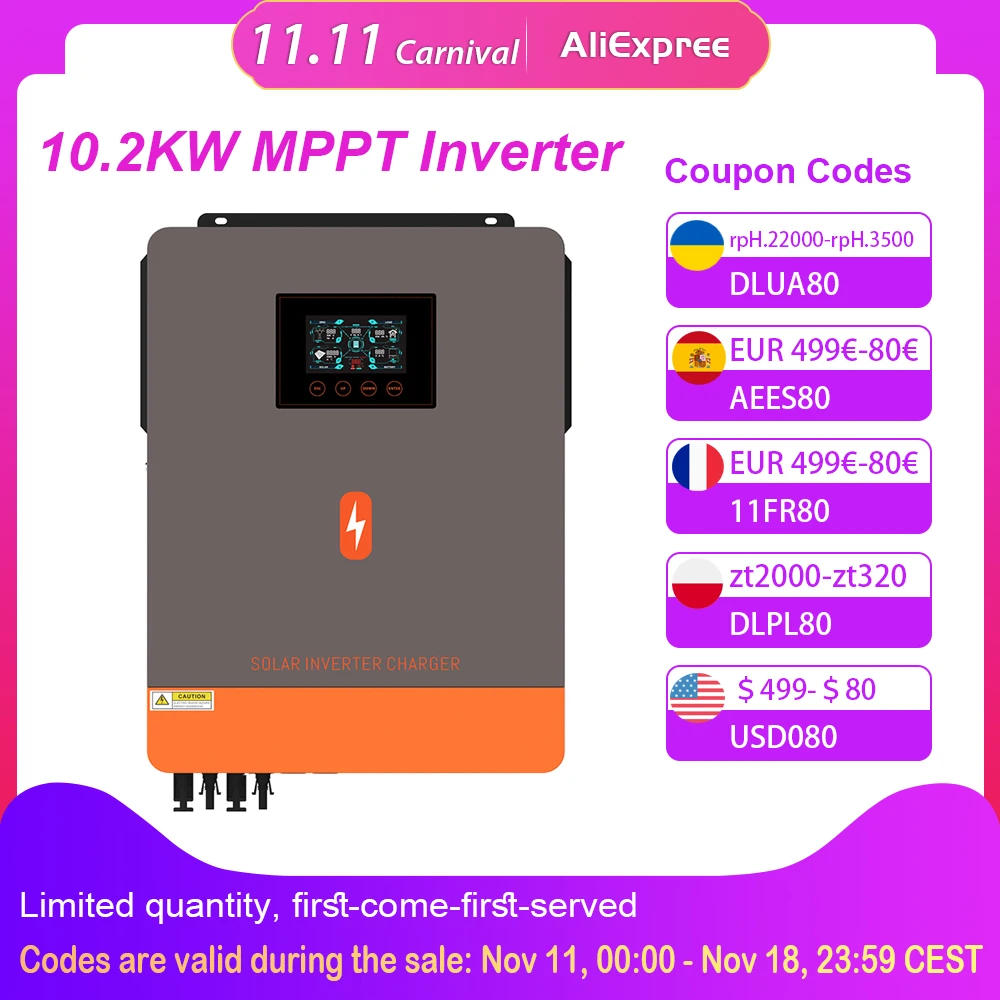

• 10200W On-Grid/Off-Grid Pure Sine Wave Hybrid Inverter Built MPPT 160A Charge DC 48V 230VAC Daul PV InPut for Solar Panel System Please Note: These Hvm Series Inverters are broad voltage Hybrid Inverters, The voltage that begins to connect to the solar panels needs to be above 120V for the Hybrid Inverter to paintings normally in case you have any questions earlier than order, please be happy to contact us thanks and the 10 display has some updates, per chance you may acquire the new update or the previous version, we deliver the parcel randomly, but don&;t worry, purposes are the same This is a multi-function inverter/charger, combining functions of inverter, photo voltaic charger and battery charger to offer uninterruptible power support with transportable size Its comprehensive LCD reveal provides user-configurable and easy-accessible button operation comparable to battery charging current, AC/solar charger priority, and appropriate input voltage according to diverse purposes Dual MPPT, 160A MPPT Charge, 10 on/off Grid Inverter Daul PV In-Put and Second Output 1 sine wave solar inverter（on/off Grid） 2 running with out battery 3 power ingredient 1 four PV input voltage range(90~500VDC) 5&GPRS out there for IOS and Android 6 anti-dusk equipment for harsh surroundings 7 160A（for 7/8）/160A（for 10）MPPT solar fee 8 battery price design to optimize battery lifestyles 9 recovery to manufacturing unit Settings 10 output 11 Lithium battery computerized activation 12 buttom Inverter Model 10 Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac Max AC Input Voltage 300Vac Rated Output Power 10 Output Voltage Waveform Pure Sine Wave Output Frequency 50Hz Peak Efficiency 93% Nominal DC Input Voltage 48Vdc Two Load Output Power Full Load 10200W Maximum Main Load 10200W Maximum Second Load(battery model) 3400W Main Load Cut Off Voltage 52VDC Main Load Return Voltage 54VDC Utility Charging Mode Charging Algorithm 3-Step AC Charging Current (Max) 140Amp Floating Charging Voltage 54Vdc MPPT Solar Charging Mode Max PV Array Power PV1 Channel: 5400W PV2 Channel: 5400W Nominal PV Voltage 360Vdc PV Array MPPT Voltage Range 90Vdc~450Vdc Max PV Array Open Circuit Voltage 500Vdc Max Charging Current (AC charger plus photo voltaic charger) 160Amp Grid-Tie Operation Nominal Output Voltage 220/230/240 VAC Feed-in Grid Voltage Range 195~253VA C Nominal Output Current forty four Power Factor Range >0 General Specifications Safety Certification CE Operating Temperature Range 10°C to 50℃ Storage temperature -15°C~ 60°C Humidity 5% to 95% Relative Humidity (Non-condensing) 10 kW solar hybrid converter 48 VDC: 10 kW hybrid inverter 48 Vdc to 230 Vac solar inverter with one hundred sixty A MPPT photo voltaic charging and discharge controller Rated Power: 10200W; Maximum PV Input Power: 10200W; PV Operating Voltage Range: 90Vdc-500Vdc; Max Array Open Circuit Vlotage: 500Vdc; Maximum PV Charging Current: 140Amp; Rated Output Current: forty four Compatible with varied batteries: would be mixed with several types of battery, resembling AGM, GEL, FLD, SLD, LI, USER The correct battery for the inverter can maximise charging efficiency, provide charging velocity and amplify the lifetime of the battery (Note: if you use lithium battery, please select the battery kind "User-Defined" in program 05 to set it up) Multi-charging and output mode: 3 charging modes are optional: solely solar, solar and utility, photo voltaic priority; output modes: photo voltaic priority, supply priority, SBU mode The solar inverter offers a number of charging and output modes to satisfy the several utility standards of the users Safety charging protection: brief circuit protection, overcurrent protection, surge protection, low voltage protection, overload protection, backfill protection, over temperature protection, overload defense Comprehensive defense for safer and more secure charging Compatible with diverse domestic or office applications: the maximum rated strength of this hybrid inverter is up to 10 kW, which can provide energy for various electric instruments in home or workplace environments, adding electrical devices similar to lamps, fans, refrigerators, air conditioners, coffee makers, and so forth

•
•
•
•
•
