Parameter Performance:Case Material: Die-cast aluminumInput Voltage: DC12VBeam Angle: 5ºColor: addressable RGB/RGBW full colorPower source: COB 10W excessive calories RGB/RGBW LEDControl method: WS2811 IC; 3CH TTL/SPI protocol for RGB UCS2904 IC; 4CH TTL/SPI protocol for RGBW(3000K)Case Size: 70mm X 130mmWaterproof Rate: IP67Power Efficiency: ninety water-resistant connector on the ends:3 core xConnect pigtails 20cm long: 3 core thirteen Raywu connector 20cm long: 12V 10W WS2811 IC RGB:9W High Power WS2811 Controlled LED Pixel Module DC12V Size;45mm*42mm RGB Addressable Full Color 12V 12W UCS2904-RGBW(3000K):12W RGBW(3000K) UCS2904 IC Controlled RGBW LED Pixel COB Module Light;DC12-24V input;size;51mm*47mm traditional pinout diagram for our pixel lights:Brown: 12v + Yellow/green: - Data Blue: - earth/ -Input end: male connector(screw end with bare pin)Output end: female connector(with hole) Recommended Controllers:APP bluetooth WIFI/SD card/Artent SPI and so forth
Recenzja
0 people rated this product

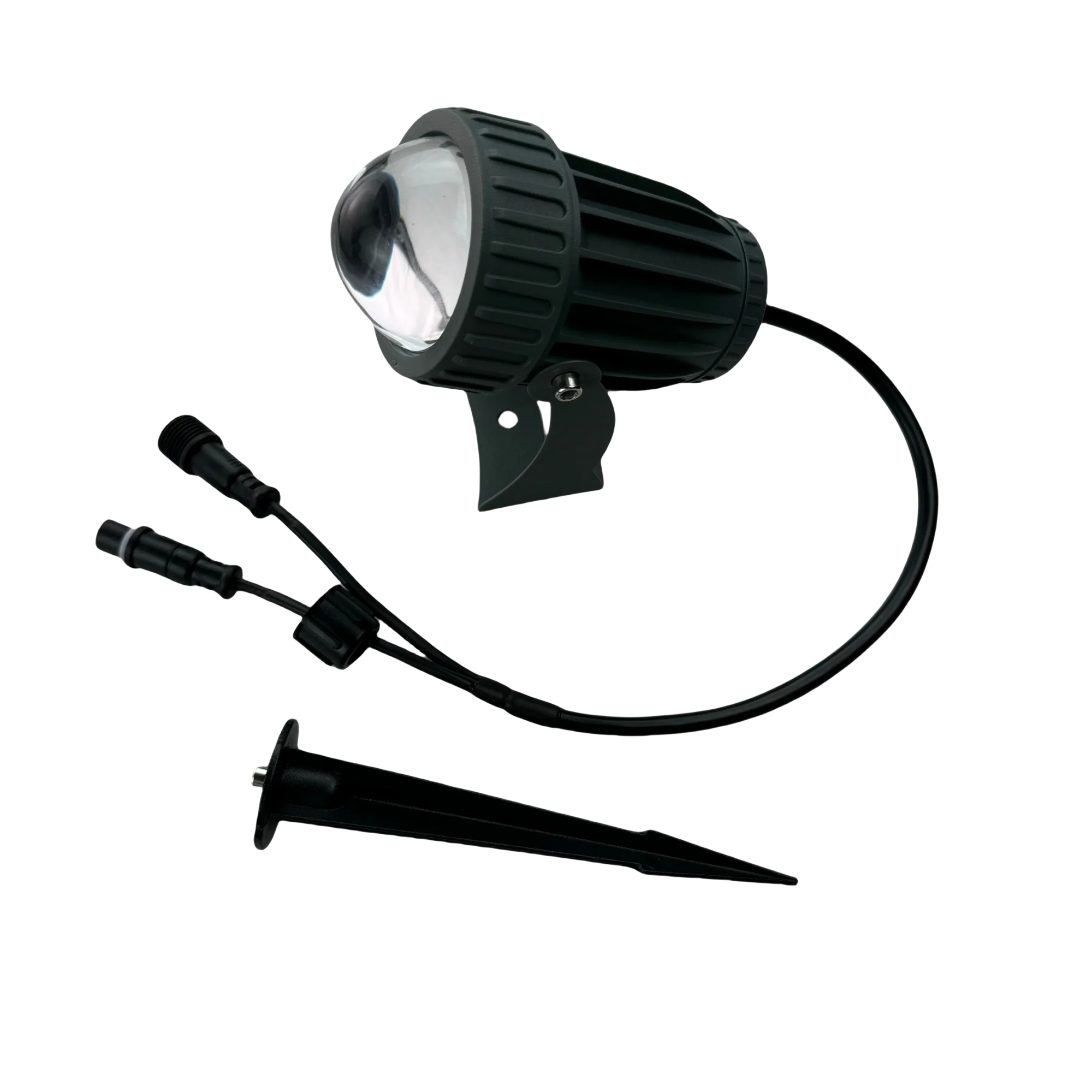

10W RGB/RGBW DC12V WS2811-RGB/UCS2904-RGBW(3000K) LED Pixel Spotlight Addressable 5 degree Beam Light IP67 3Pin in and out
