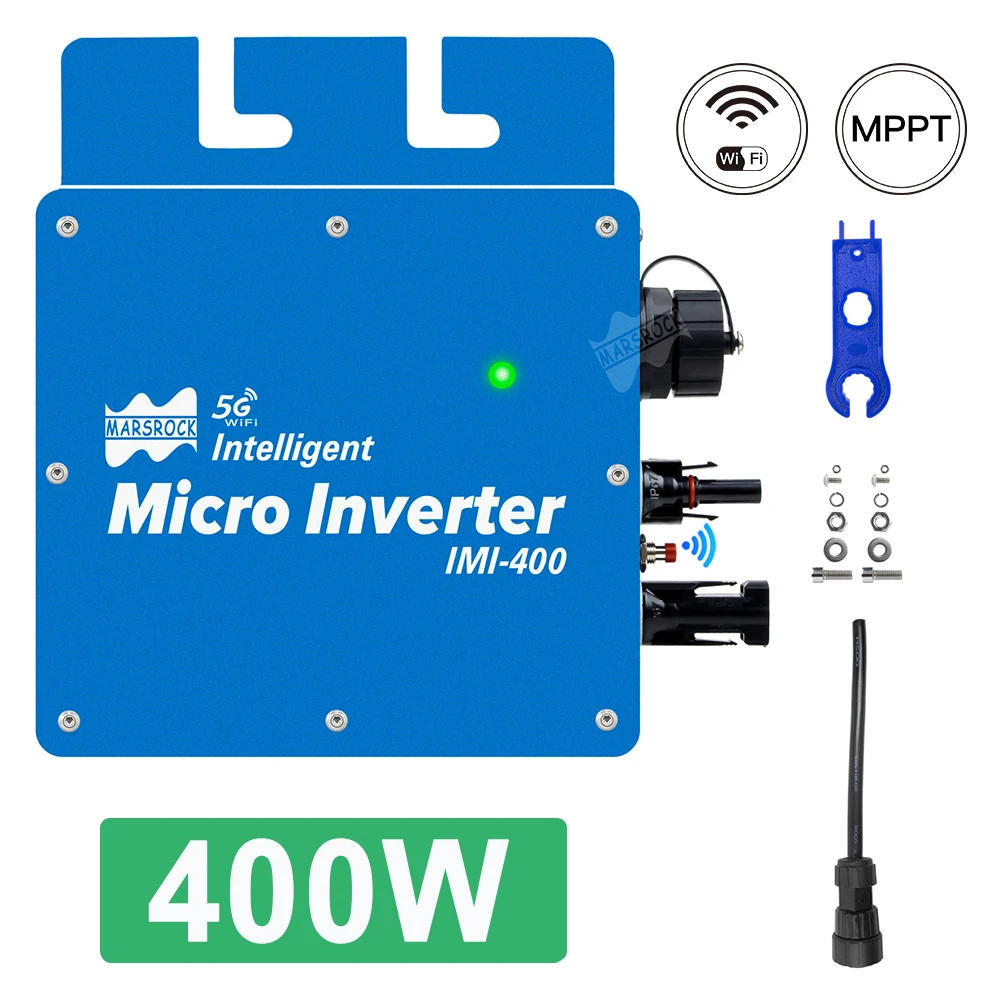

• Product Introduction IMI sequence inverter Using IP65 waterproof streamline design which effectively prevent rainwater at the floor erosion, built-in high-performance most power point tracking MPPT function higher able to track chang_x001F_es in the solar luminosity and management varied output power, effectively capture and compile daylight AC electrical energy transmission utilizing the opposite transmission technology The inverter output energy can give load precedence use, more electricity to the grid, effective use of the inverter to the ability emitted, electricity transmission price of up to 99% The handy technique to straight scan the QR code to connect to the community is a significant feature of it, permitting non-professional users to watch the ability era components information in genuine time by way of a smartphone Product Parameter Model 400W Input Data Recommend PV 400W Start-Stop voltage 22-50V Reccommend PV Voc 33-50V MPPT 23-50V Maxi Input Current 13A DC short current 20A Output Data Rated output recent @120VAC 3;@230VAC 1 Rated voltage @120V(80-160VAC); @230V(180-260VAC) Max items according to branch @120V: 3PCS;@230V:6PCS Rrequency 50/60Hz(48-51Hz) Output Efficiency Static MPPT 0 Power aspect >99% Max output 0 Self intake <1W THD <5% Exterior Ambient temperature - 40℃to +65℃ Operating temperature - 40℃to +82℃(inverter inside) Dimensions（L×W×H) 253mm×200mm×40mm Weight 1 Waterproof Rating IP65 Cooling Self-cooling Feature Power transmission mode Reverse transfer, load precedence Communication WIFI(QR code scanning, computerized matching internet) Monitoring System Lifetime unfastened Electromagnetic compatibility EN50081 Grid disturbance EN61000-3-2 Safety EN62109 Grid detection DIN VDE 1026 UL1741 Certificate CE，RoHs, FCC Model 800W 1600W Input Data Recommend PV 250~400W*2 250~400W*4 Operation voltage 20~50V(MPPT:22V~48V) 20~50V(MPPT:22V~48V) Reccommend PV Voc 33-50V 33-50V Star/Max input voltage 18V/52V 18V/52V Max enter recent 13A*2 7*4 Output Data Max Output Power 800W 1600W Rated output latest @120VAC 5A;@230VAC 2 @120VAC 5A;@230VAC 2 Rated voltage @120V(80~160VAC); @230V(180~270VAC) @120V(90~160VAC); @230V(190~270VAC) Max units according to branch @120V: 5PCS;@230V:10PCS @120V: 2PCS;@230V:4PCS Rrequency 50/60Hz(48~61Hz) 50/60Hz(48~61Hz) Output Efficiency Static MPPT 0 zero Power element >99% >99% Max output 0 0 Self intake <1W <1W THD <5% <5% Exterior Ambient temperature - 40℃to + 85℃ - 40℃to + 85℃ Operating temperature - 40℃to + 65℃ - 40℃to + 65℃ Dimensions（L×W×H) 230x200x40mm 365x230x40mm Weight 2 three Waterproof Rating IP65 IP65 Max recent of AC bus cable 20A 20A Cooling Self-cooling Self-cooling Feature Power transmission mode Reverse transfer, load precedence Reverse transfer, load precedence Communication WIFI(QR code scanning, computerized matching internet) WIFI(QR code scanning, automatic matching internet) Design High frequency transformer, Glvanically isolated High frequency transformer, Glvanically remoted Equipment ground is supplied through the PE in the AC cable Product Features 1 Series undertake scanning the QR code to hook up with internet which is straightforward to be operated by way of Smart Phone APP or PC to watch power formula data 2 inverter utilizing IP65 water-resistant streamline design, which can effectively prevent rainwater on floor erosion 3 excessive functionality most strength point tracking function, can song changes within the solar luminosity and management various output power, efficiently seize and assemble sunlight and use of the inverter to the power emitted, electricity transmission fee of up to 99% 4 precision phase detection;Over and below voltage protection; Over and under frequency protection; Islanding defense 5 installation The PV input energy workable from 250-450W DC input 20-50V design can compatible for 36Cells, 60 cells, seventy two cells put into in collection or in parallel Connection diagram Only the photo voltaic panel is hooked up When the mains AC isn't always connected, the pink gentle on the inverter floor is on, and the tool and machine do not work usually Normal working circumstances of the inverter: the 22-50V DC voltage of the photo voltaic panel must be connected, and the AC voltage must be connected at the identical time, and the indicator mild is green When the inverter is bought for the first time and related to the cellphone for monitoring, it's only essential to switch on the mains AC, the blue mild beside it flashes, and the inverter would be connected through WIFI or Bluetooth pairing When the inverter could be controlled during the cellular phone, it's indicated that the relationship is typical Produce Line Questions & Answers 1 WHAT TO DO when the Smart-App can&;t discover the micro inverter to be added?Check the ensuing points: •Check if the WiFi status indicator of the micro inverter is within the "Blue Flashing" state; • Check if the Bluetooth function of your clever machine is turned on; Check if the signal of the wireless network is good If all this is the case and the inverter is still not found, press the purple reset button for more than five seconds to reset After the WiFi indicator gentle flashes blue again, use "Smart Life" App to reconfigure the network 2 WHAT TO DO if I actually have a number of micro inverters to configure?Install all micro inverters wisely and make them work normally to generate power, after which function in line with the configuration and use steps The App can search all inverters to be added at one time and configure them at one time 3 WHAT TO DO if the SSiD of my WviFi network or tine password is changed?Please reconfigure the inverter per the configuration and use steps four WHAT TO DO if the WiFi status indicator of the inverter goes out, but the machine displayed on the app isn't always online?This means that you can connect to the wireless community device, yet you can&;t connect with the cloud server It means that your wireless network machine can&;t connect to the Internet Make yes that your Internet is operating wisely five The installation website of the inverter is temporarily no longer geared up with a router and no WiFi signal does App connect the inverter and come across if the inverter is working properly? You can use an idle smartphone to open the WiFi sharing of cellular telephone sign hotspot for connection, and reconfigure the network connection after installing the router 6 There are a number of WiFi indicators on web site Can we connect to diverse WiFi signals?No, the WiFi related of the micro inverter and the wise telephone ought to be constant earlier than the network would be configured 7 Can App configure the micro inverter in numerous places? Can I view records in several places?You can&;t configure the micro inverter in several places, yet you might view records in different places The inverter uploads the most recent status information to the cloud server each minute 8 After checking that there is not any problem, the App still can not discover the micro inverter and maintain the inverter pink button for more than 5 seconds to reset the inverter After the WiFi indicator flashes again, use App to reconfigure the community 9 WHAT TO DO if I want to computer screen an identical inverter on two or extra sensible devices?You can proportion the inverter with another phone utilizing the share gadget function 10 Will App records be saved?Yes, App records could be kept on cloud server After the network is efficiently configured, you could view the info at any time and position 11 The inverter cannot be related to the app at night?At night, since the photo voltaic panel would not generate power, the micro inverter would not have any strength input, so it's going to offline and it's impossible to re-configure the network at evening

•
•
•
•
•
